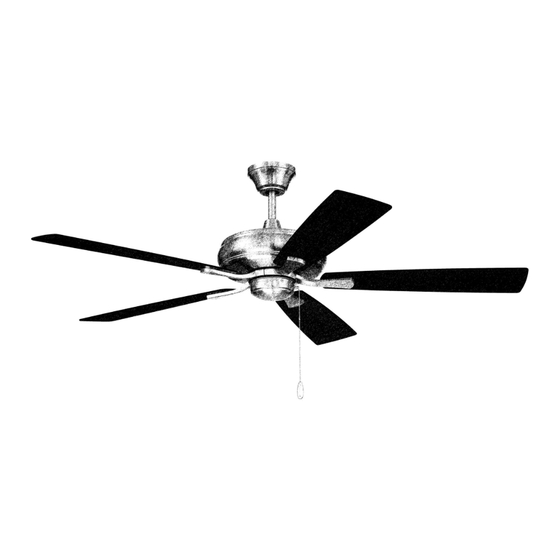

Eos
Installation Guide
For Model:
ECF52
4007498
net weight of fan: 12.79 lb (5.8 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 2
Unpacking Your Fan. pg. 3
Parts Inventory. pg. 3
Installation Preparation. pg. 4
Hanging Bracket Installation. pg. 4
Fan Assembly. pgs. 5 - 6
Wiring. pg. 6
Canopy Assembly. pg. 7
Blade Assembly. pg. 7
Switch Housing Assembly. pg. 8
Testing Your Fan. pg. 8
Troubleshooting. pg. 9
Warranty. pg. 9
page 1
PRINTED IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Craftmade Eos ECF52
Summary of Contents for Craftmade Eos ECF52
-
Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide Table of Contents: For Model: Safety Tips. pg. 2 ECF52 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly. pgs. 5 - 6 Wiring. -
Page 2: Safety Tips
8. Do not use detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning. Distributed by: Craftmade, 3901 S. 20 Avenue, DFW Airport, TX, 75261; 800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur. -
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. -
Page 4: Installation Preparation
3. Installation Preparation. blade edge inches To prevent personal injury and damage, ensure (76cm) 7 feet that the hanging location allows the blades a (2.13m) clearance of 7 ft. (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. 12ft. -
Page 5: Fan Assembly. Pgs
5. Fan Assembly. set screw Remove hanging ball from downrod provided by stop pin loosening set screw on hanging ball. Remove pin and clip. Lower hanging ball and remove stop pin. Then slide hanging ball off downrod. [Refer to diagram 1.] hanging ball Loosen yoke set screws and nut at top of motor clip... -
Page 6: Wiring
5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket. -
Page 7: Canopy Assembly
7. Canopy Assembly. hanging Locate 2 screws on underside of hanging bracket bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded screw part of slotted hole in canopy over loosened screw in hanging bracket and push up. -
Page 8: Switch Housing Assembly
9. Switch Housing Assembly. fitter plate diagram 1 Remove 3 screws from outer edge of fitter plate. Save screws for later use. [Refer to diagram 1.] motor Remove 1 screw from motor plate on underside housing of motor housing and partially loosen the other 2 screws. -
Page 9: Troubleshooting
WARNING: Failure to disconnect power supply CRAFTMADE LIMITED LIFETIME WARRANTY: prior to troubleshooting any wiring issues may result CRAFTMADE warrants this fan for use as intended under the following provision: CRAFTMADE will in serious injury. replace any fan which has faulty performance due to a defect in material or workmanship or fails to operate Problem: Fan fails to operate.
