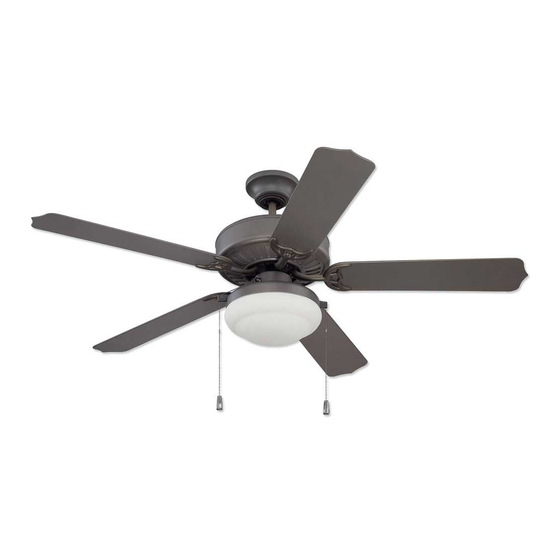

Enduro
Installation Guide
For Model:
END52xx5PC1
LISTED
For
Wet Location
E192641
net weight of fan: 20.02 lb. (9.1 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 7
Warranty. pg. 11
page 1
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enduro END52 5PC1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Craftmade Enduro END52 5PC1 Series

Summary of Contents for Craftmade Enduro END52 5PC1 Series

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Enduro Installation Guide For Model: END52xx5PC1 Table of Contents: Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly.

  • Page 2: Safety Tips

    (2) this LED light kit must accept any interference received, including interference that may cause undesired operation. Distributed by: Craftmade, 650 S. Royal Lane, Coppell, TX, 75019; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches 7 feet that the hanging location allows the blades a (2.13 m) (76 cm) clearance of 7 feet (2.13 m) from the floor and 30 in (76 cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square 12 ft.

  • Page 5: Fan Assembly. Pgs

    5. Fan Assembly. set screw stop pin Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging hanging ball ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] diagram 1 Loosen yoke set screws and nuts at top of motor housing.
  • Page 6 5. Fan Assembly. (cont.) Thread wires through hanging ball; then slide hanging ball over downrod--the top of the downrod should be noted as having a set screw hole; use this weatherproof hole when setting the set screw. Insert stop pin into hanging ball cover top of downrod and raise hanging ball.

  • Page 7: Wiring

    6. Wiring. white supply wire CAUTION: Be sure outlet box is properly grounded and ground that a ground wire (GREEN or Bare) is present. (green or bare) black supply wire Make sure all electrical connections comply with Local Codes or Ordinances and the National Electrical Code. If you are unfamiliar with electrical wiring or if the from ceiling house/building wires are different colors than those...

  • Page 8: Blade Assembly

    8. Blade Assembly. WARNING: To reduce the risk of serious bodily motor housing injury, DO NOT use power tools to assemble the blades. If overtightened, blades may crack and break. Time Saver: Washers for blade screws can be set on each blade screw prior to installing blades. Locate 15 blade attachment screws and washers blade in one of the hardware packs.

  • Page 9: Light Kit Assembly (Optional)

    9. Light Kit Assembly (Optional). If you wish to use fan WITHOUT the light kit, motor housing please proceed to Section 10 on page 10 to complete installation. If you wish to use fan WITH the light kit, remove 3 screws from switch housing cap and remove switch housing cap from switch housing.

  • Page 10: Testing Your Fan

    10. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and light switch (if applicable). Test fan speeds with the pull chain labeled FAN. motor housing Start at the OFF position (no blade movement).

  • Page 11: Troubleshooting

    Service at 1-800-486-4892 to arrange for return of fan. 2. Verify that reverse switch is set completely in Return fan, shipping prepaid, to Craftmade. We will repair either direction. or ship you a replacement fan, and we will pay the return 3.
