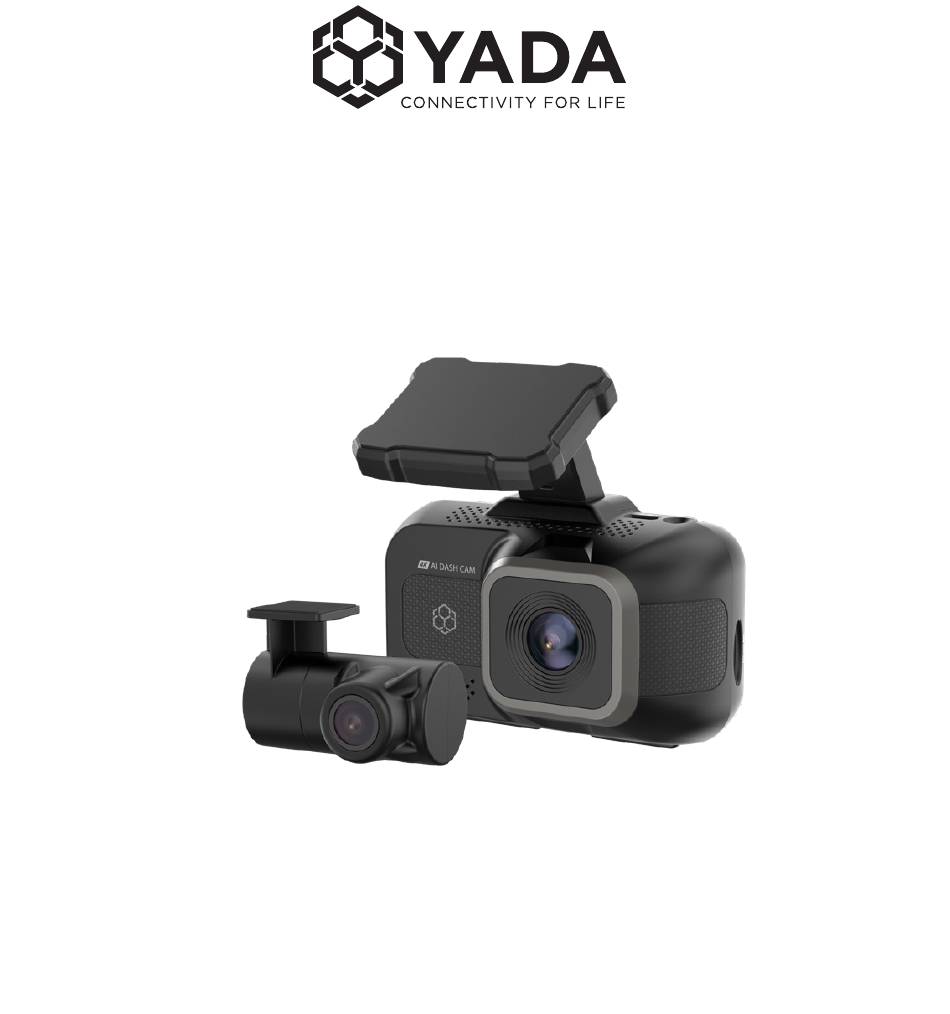

- Page 1 ROADCAM AI PLUS 4K AI Dashcam & Rear Cam Set BT533642 User Manual Important, retain for future reference: Read carefully...
- Page 2 For more detailed instructions, please scan the QR code above or visit www.letsyada.com to access the complete user manual.
- Page 3 QUICK INSTALLATION GUIDE Before you begin... Gather these items. 64GB 1. Mount the AI Dashcam MicroSD Card (Pre-Installed)
- Page 4 Recommended mounting position To optimize the accuracy of AI calibration, we recommend placing the Dashcam at the center of your windshield, right behind your rear view mirror. 2. Connect to Power...
- Page 5 Consult an experienced technician if you are not comfortable installing the product. You can also contact YADA at 1.866.294.9244 to speak to one of our installation specialists if you have any specific questions regarding the Roadcam AI Plus.
-
Page 6: Product Specifications
PRODUCT SPECIFICATIONS 4K AI Dashcam Display: 3 inch display Lens: 125 degrees diagonal Video Resolution: 4K (3840x2160), 2K (2560x1440) or FHD (1920x1080) Frequency: 2.4GHz Circular Video: Seamless loop recording Memory Card: MicroSD (maximum support 512GB) Microphone: Supported Built-in Audio: Supported Operating Temperature: 14°F~140°F (-10°C~60°C) Operating Voltage: Cigarette Lighter Adapter - DC 12/24V / DC 5.2V (USB-C) -
Page 7: Package Contents
PACKAGE CONTENTS 1. 1 x 4K AI Dashcam 2. 1 x Rear Camera 3. 1 x 64GB MicroSD Card 4. 1 x 12V/24V Power Adapter 5. 1 x 11.5ft/3.5m USB-A to USB-C Power Cable 6. 1 x 3M VHB™ Double-sided Tape (Spare) 64GB 7. -
Page 8: Product Overview
PRODUCT OVERVIEW USB-C Power Input Rear Camera AV-IN Input Camera Lens Speaker MicroSD Card Slot Microphone LCD Screen Event Recording Button Function Buttons LED Indicators Orange Warning Light - Left Blind Spot Green Warning Light - Right Blind Spot... -
Page 9: Camera Controls
CAMERA CONTROLS Switch View / OK / Delete / WiFi On/Off (click once) Microphone On/Off / Up / Lock Video Adjust Playback Speed (click once) (click once) Record (press & hold) /Snapshot / Down / Play/Pause (click once) Menu / Return / Next (click once) For more information about AI Dashcam operation, please refer to the e-manual on www.letsyada.com. -
Page 10: Installation
1.55” / 39.4mm 2.12” / 53.8mm 1.44” / 36.5mm INSTALLATION Peel off the protective film from the LCD screen. Plug the power cable into the USB-C input port of the AI Dashcam. MicroSD Card (Pre-Installed) - Page 11 Attach the AI Dashcam onto the windshield: - Apply the electrostatic sticker onto the cleaned windshield and peel off the protective film. - Peel off the 3M VHB™ tape backer from the Dashcam Mount and attach the Dashcam onto the center of the sticker. Recommended mounting position NOTE: To optimize the accuracy of AI calibration, we recommend...
- Page 12 4. Plug the Rear Camera into the AV-IN port on the Dashcam. 5. Mount the Rear Camera on the rear window inside your vehicle. Adjust the camera to your desired angle. Route and hide the power cable in your vehicle.
-
Page 13: Downloading The App
Mac and iPod touch with Android™ 7.0 or with iOS 11 or higher. higher. the YADA Drive APP. Scan the QR code on the right or search “YADA Drive” in the APP Store or Google Play. Download and install the APP. - Page 14 Help / FAQs 1) Problem: The AI Dashcam is unable to take pictures and record videos. Solution: Please try formatting the MicroSD card. 2) Problem: The AI Dashcam shows that the memory card is full. Solution: Please 1) Switch the G-sensor to “Mid” or “Low”, 2) Take the MicroSD card out and clear the “Event”...
-
Page 15: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions of the 12V/24V cigarette lighter adapter for Model BT533642. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose cigarette lighter adapter to rain, moisture, or snow. 4. - Page 16 WARNING: A failure to read and follow these warnings and instructions may result in a serious accident, including damaged property or a serious injury, including loss of life. • The AI Dashcam and Rear Cam are designed as an aid to the driver in detecting large stationary objects to help avoid damaging the vehicle.
- Page 17 • This product will only provide images of items that are within the field of view of the AI Dashcam and Rear Cam. Thus, it is imperative that the AI Dashcam and Rear Cam should be kept clean and unobstructed. •...
-
Page 18: Maintenance And Warranty
YADA LIMITED WARRANTY YADA warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, YADA’s liability shall be limited to that set... - Page 19 This limited express warranty shall be the exclusive remedy of the purchaser and YADA makes no other warranty of any kind aside from the limited express warranty stated above. NOTE: Warranty only applies for North American customers of purchases made in North America.
- Page 20 1.866.294.9244. If at that time it is determined that a replacement unit is needed, the support representative will issue a Return Authorization and instruct on how to get a new unit. YADA makes no other warranty of any kind aside from the limited express warranty stated herein.
- Page 21 YADA and/or its affiliates are not responsible for a user’s intended or actual use of the Roadcam AI Plus. In no event shall YADA and/ or its affiliates have any liability for any losses (whether direct or indirect, in contract, tort or otherwise) incurred in connection with the Roadcam AI Plus, including but not limited to damaged property, personal injury and/or loss of life.
-
Page 22: General Information
Customer Service/Contact IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT YADA DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/EXCHANGE THE PRODUCT. FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject... - Page 23 Android is a trademark of Google Inc. iPhone, iPad, Mac and iPod touch are trademarks of Apple Inc. Roadcam AI Plus 4K AI Dashcam & Rear Cam Set BT533642 Responsible Party: YADA 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 1.866.294.9244...
- Page 24 NOTES...
- Page 25 NOTES...
- Page 26 NOTES...
- Page 27 Product code / Code de produit / Código del producto : BT533642 Register this product within 30 days of purchase to receive one (1) additional year of warranty coverage (beyond the standard 1-year warranty), along with special product offers and announcements. Enregistrez ce produit dans les 30 jours suivant l’achat pour recevoir une couverture supplémentaire de 1 AN (au-delà...
- Page 28 CONNECT @letsyada WITH US 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | customercare@horizon-brands.com © 2023 ADC Solutions Auto, LLC. www.letsyada.com ML-533642_V1...
- Page 29 Product Label Information can be accessed at Regulatory Info page as follows. Starting from Main Menu: Step 1. Open Settings Menu Step 2. Go to System Setting Step 3. Go to Regulatory Info...
