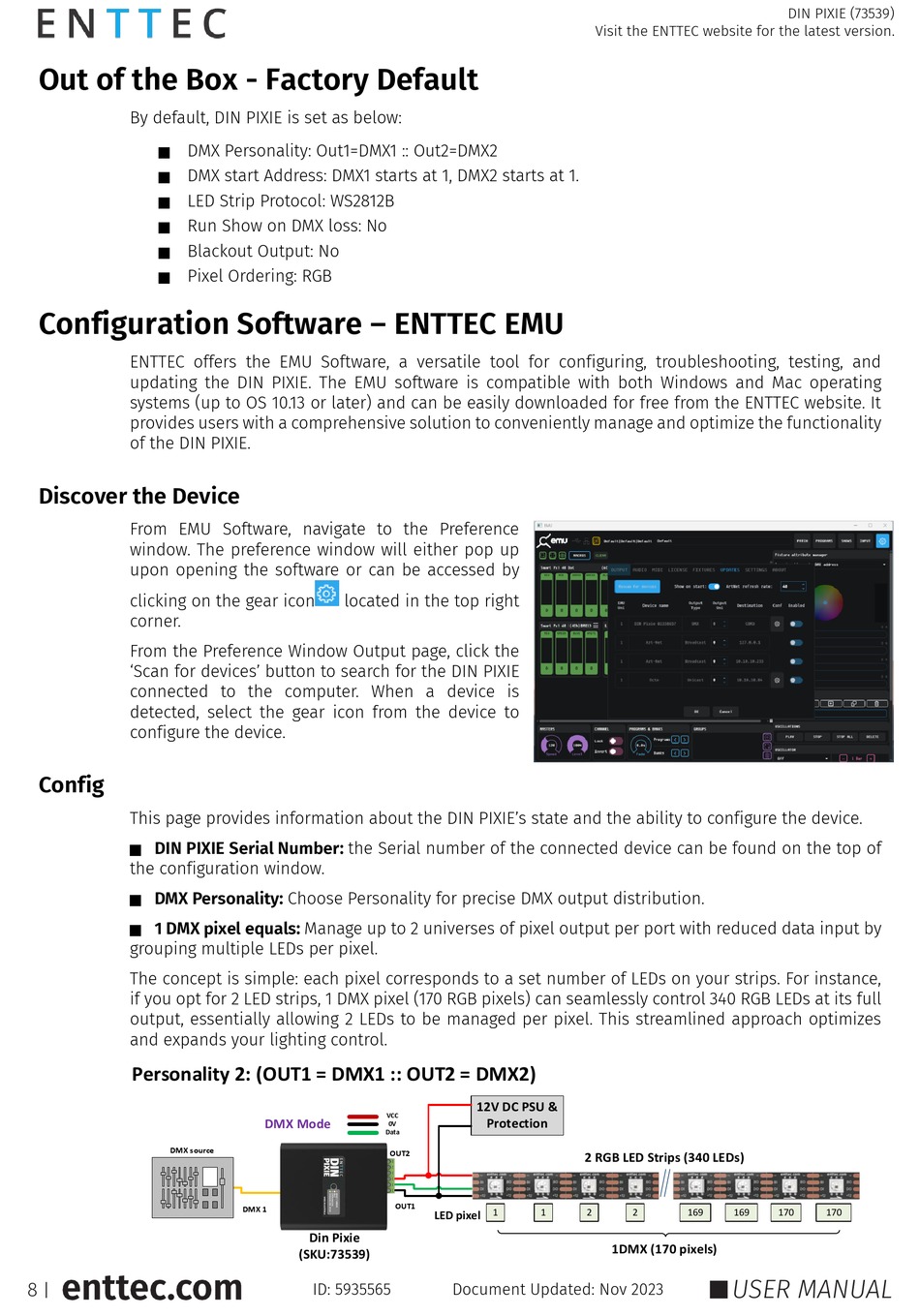

Out of the Box - Factory Default

By default, DIN PIXIE is set as below:
DMX Personality: Out1=DMX1 :: Out2=DMX2

DMX start Address: DMX1 starts at 1, DMX2 starts at 1.

LED Strip Protocol: WS2812B

Run Show on DMX loss: No

Blackout Output: No

Pixel Ordering: RGB

Configuration Software – ENTTEC EMU
ENTTEC offers the EMU Software, a versatile tool for configuring, troubleshooting, testing, and
updating the DIN PIXIE. The EMU software is compatible with both Windows and Mac operating
systems (up to OS 10.13 or later) and can be easily downloaded for free from the ENTTEC website. It
provides users with a comprehensive solution to conveniently manage and optimize the functionality
of the DIN PIXIE.

Discover the Device

From EMU Software, navigate to the Preference
window. The preference window will either pop up
upon opening the software or can be accessed by
clicking on the gear icon
corner.
From the Preference Window Output page, click the
'Scan for devices' button to search for the DIN PIXIE
connected to the computer. When a device is
detected, select the gear icon from the device to
configure the device.

Config

This page provides information about the DIN PIXIE's state and the ability to configure the device.
DIN PIXIE Serial Number: the Serial number of the connected device can be found on the top of

the configuration window.
DMX Personality: Choose Personality for precise DMX output distribution.

1 DMX pixel equals: Manage up to 2 universes of pixel output per port with reduced data input by

grouping multiple LEDs per pixel.
The concept is simple: each pixel corresponds to a set number of LEDs on your strips. For instance,
if you opt for 2 LED strips, 1 DMX pixel (170 RGB pixels) can seamlessly control 340 RGB LEDs at its full
output, essentially allowing 2 LEDs to be managed per pixel. This streamlined approach optimizes
and expands your lighting control.
Personality 2: (OUT1 = DMX1 :: OUT2 = DMX2)
DMX source
8
|
located in the top right
VCC
DMX Mode
0V
Data
OUT2
OUT1
DMX 1
Din Pixie
(SKU:73539)
ID: 5935565
Visit the ENTTEC website for the latest version.
12V DC PSU &
Protection
2 RGB LED Strips (340 LEDs)
1 1 2
LED pixel
Document Updated: Nov 2023
2 169 169 170
1DMX (170 pixels)
