Enttec Storm 8 Quick Start Manual

Hide thumbs Also See for Storm 8:
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual

Box Contents

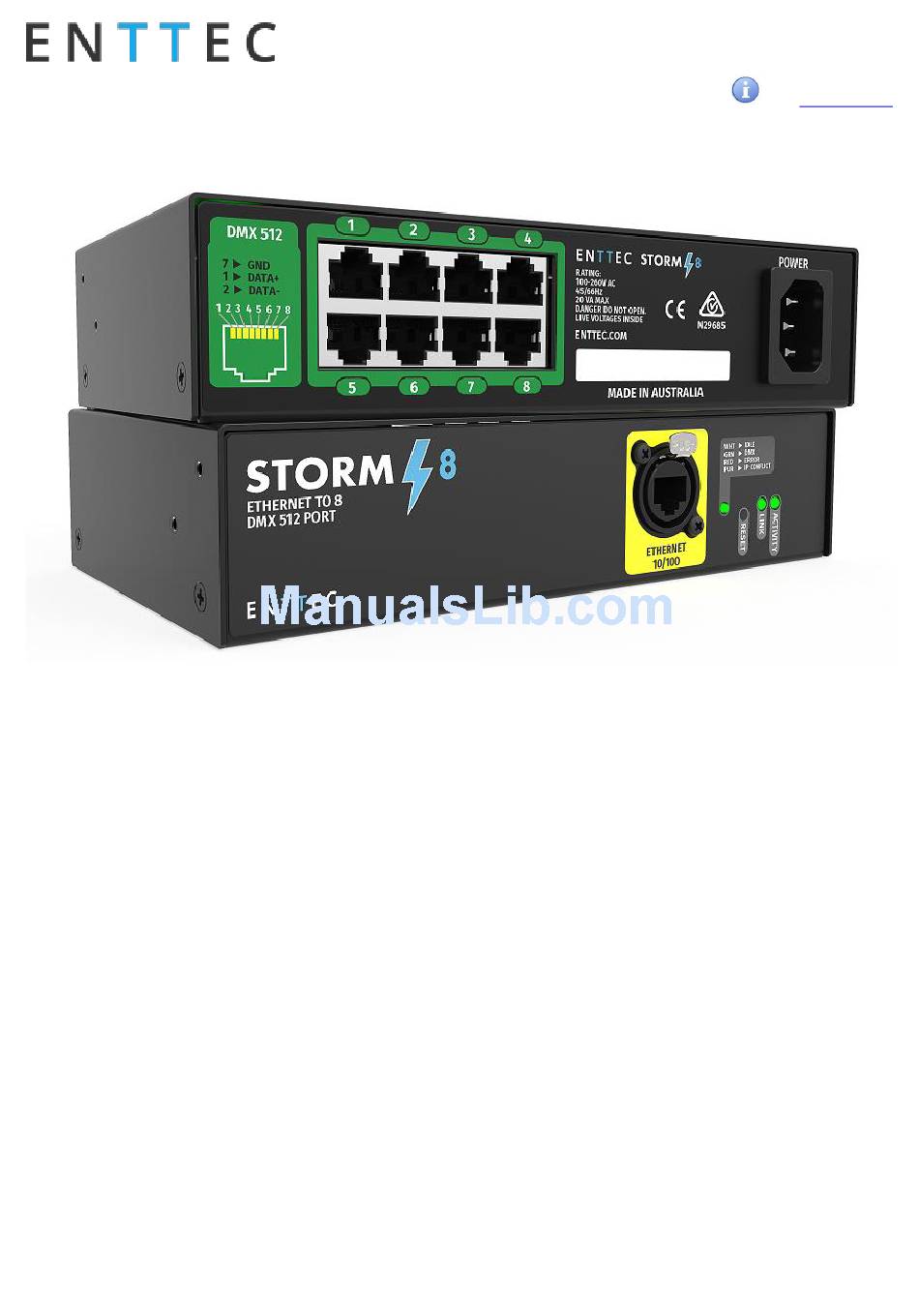

Storm 8 (PN: 73909)
•
Straight connect Ethernet lead (pn:79102)
•
This user manual
•

Features

8 Universe Ethernet to DMX Node
•
8 DMX (RJ45) data output ports
•
Easy to update & configure through any web
•
browser interface
Supports following DMX over Ethernet protocols:
•
Art-Net 1/2/3
o
Streaming ACN (sACN)
o
ESP
o
1 RJ45 Ethercon connector (10/100 Mbps)
•
Static or Dynamic (DHCP) IP configuration (DHCP
•
by default)
1
Supports DMX512/1990.
•
Refresh rate is configurable for each DMX output.
•
Each DMX output can be assigned up to one Ethernet
•
Universe.
Each DMX output can be configured to enable or
•
disable merging HTP/LTP.

Safety

Do not expose the unit to rain or moisture, doing so
•
will void the warranty
Do not remove the cover, there are no user
•
serviceable parts inside
This unit is intended for indoor use only
•

Basic Setup

Right out of the box, the Storm 8 is factory configured to be
a standard Art-Net node, listening to the first 8 Art-Net Uni-
verses (0 to 7). It is also configured to DHCP node, so you can
plug it into your existing router, and it's good to go straight
out of the box.
Quick Start Manual
STORM8-MANUAL (51074)
For latest version visit:
www.enttec.com
ID: 2348851 v6
