Wiring Diagrams - Enttec DIN PIXIE User Manual

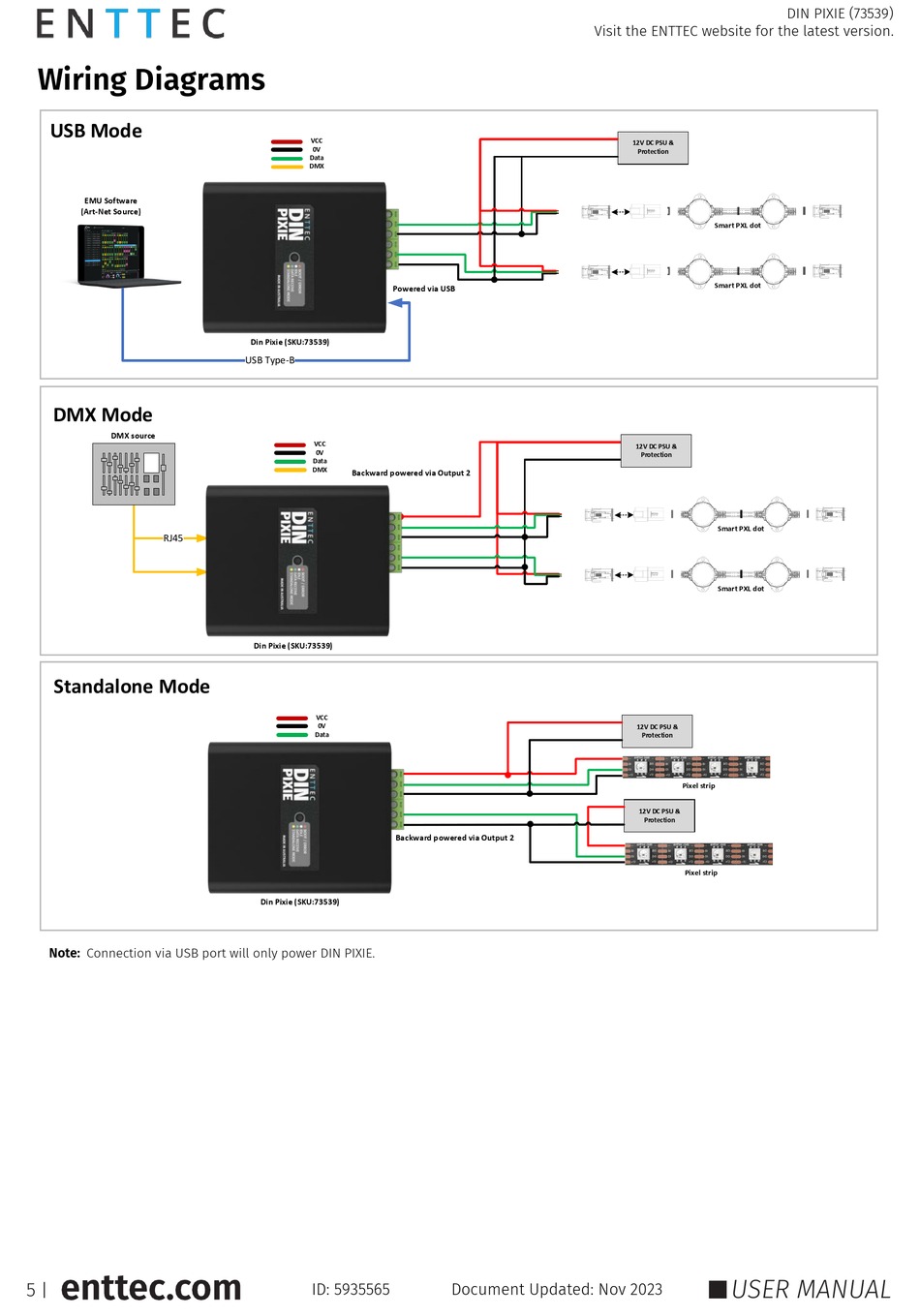

Wiring Diagrams

USB Mode
EMU Software
(Art-Net Source)
DMX Mode
DMX source
RJ45
Standalone Mode
Note: Connection via USB port will only power DIN PIXIE.
5
|
VCC
0V
Data
DMX
Powered via USB
Din Pixie (SKU:73539)
USB Type-B
VCC
0V
Data
DMX
Backward powered via Output 2
Din Pixie (SKU:73539)
VCC
0V
Data
Backward powered via Output 2
Din Pixie (SKU:73539)
ID: 5935565
Visit the ENTTEC website for the latest version.
Document Updated: Nov 2023
DIN PIXIE (73539)
12V DC PSU &
Protection
Smart PXL dot
Smart PXL dot
12V DC PSU &
Protection
Smart PXL dot
Smart PXL dot
12V DC PSU &
Protection
Pixel strip
12V DC PSU &
Protection
Pixel strip
USER MANUAL

..
