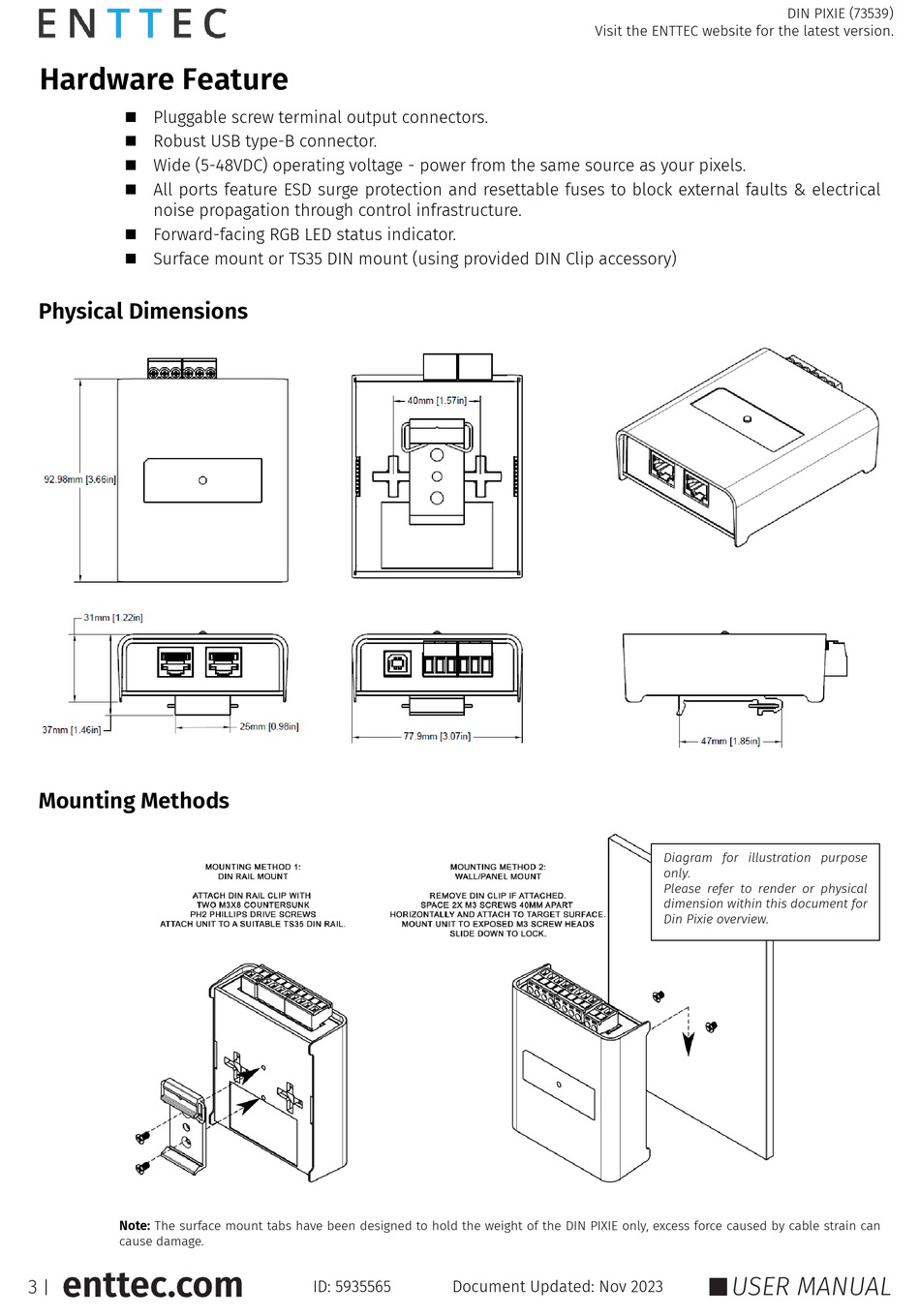

Hardware Feature

◼ Pluggable screw terminal output connectors.
◼ Robust USB type-B connector.
◼ Wide (5-48VDC) operating voltage - power from the same source as your pixels.
◼ All ports feature ESD surge protection and resettable fuses to block external faults & electrical
noise propagation through control infrastructure.
◼ Forward-facing RGB LED status indicator.
◼ Surface mount or TS35 DIN mount (using provided DIN Clip accessory)

Physical Dimensions

Mounting Methods

Note: The surface mount tabs have been designed to hold the weight of the DIN PIXIE only, excess force caused by cable strain can
cause damage.
3
|
ID: 5935565
Document Updated: Nov 2023
Visit the ENTTEC website for the latest version.
Diagram for illustration purpose
only.
Please refer to render or physical
dimension within this document for
Din Pixie overview.
USER MANUAL
DIN PIXIE (73539)
..
