Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will,
if used according to these instructions and properly maintained, give you years of trouble free
performance. Please ensure instructions remain with your customer for their reference.
REGISTER: PLEASE REGISTER THIS PRODUCT ONLINE TO ACTIVATE
IMPORTANT: PLEASE READ THESE INSTRUCTIONS, NOTE THE SAFE OPERATIONAL
REQUIREMENTS, WARNINGS, AND CAUTIONS. USE THIS PRODUCT CORRECTLY, AND
WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY
CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
S E C T I O N A – U S E R I N S T R U C T I O N S .
For installation instructions go to page 4
1. I NTR O D UCT IO N & S P EC IF IC ATIO N.

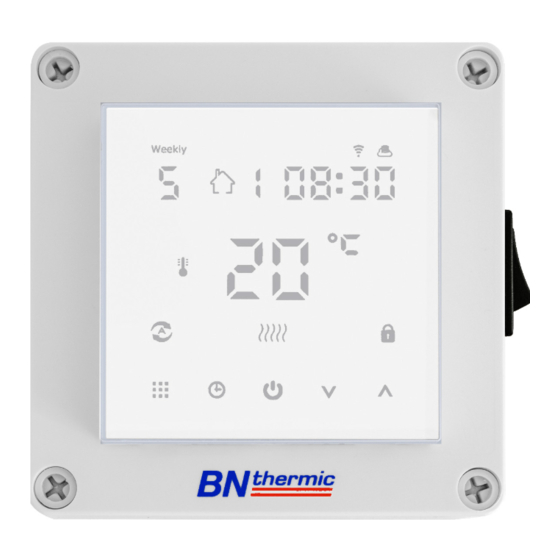

The WT26 Wi-Fi Thermostat includes a mode switch on
the right side for OFF, Fan Only or Heat using the WiFi
thermostat. It is an easy to install and use 7 Day, 6/1
Day or 5 / 2 Day Programmable Room Thermostat
which offers six time and temperature changes per day.
It is designed to provide automatic time and
temperature control for heating using its inbuilt air
temperature sensor or a remote sensor (optional extra).
The thermostat works in conjunction with an app
available on Google Play or the App Store. All settings
are stored in the controller with battery back-up. Supplied with 2 x M20 Cable glands.
Programming
Power Supply
Remote Sensor (Optional)
Temperature Range
Display
No. Events Per Day
Tamper Resistant
Dimensions
Electrical Protection
Complies with:
YOUR GUARANTEE AT www.bnthermic.co.uk
OUH3-WiFi- Programmable Heater Controller
7 Day, 6+1 Day or 5+2 Day (Default 5+2 Day)
230V (Fed from a 3A fused supply inside OUH3 Heater (Battery back-up
for settings)
CXS, CXSIP, BBS and BBSIP (IP versions are IP65 rated)
1°C to 45°C (Default 5°C to 30°C)
LED + Standby brightness setting.
6
Facility for locking all thermostat buttons or all thermostat buttons except
"On / Off" button. Note: Mode switch on side still operates for "Fan Only"
when thermostat does not require heat.
125mm (H) x 132mm (W) x 90mm (D).
IP20
EN 301489-1, EMC Directive 2014/30/EU,
EN60950-1:2006 + a11:2009 + a1:2010 + a12:2011 + a2:2013
INSTRUCTIONS FOR:-
Wi-Fi PROGRAMMABLE CONTROLLER
Model:- OUH3-WiFi
Advertisement
Table of Contents
Related Manuals for BN Thermic OUH3-WiFi
Summary of Contents for BN Thermic OUH3-WiFi
- Page 1 Wi-Fi PROGRAMMABLE CONTROLLER Model:- OUH3-WiFi Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will, if used according to these instructions and properly maintained, give you years of trouble free performance. Please ensure instructions remain with your customer for their reference.
- Page 2 2 . O P ER ATI NG G U ID E. Connecting Thermostat to Android or iPhone App You will need a 4G or 5G mobile phone and wireless router. Download “Smart RM” app from Google Play (Android users) or the App Store (iPhone users).
- Page 3 Programming - The thermostat is pre-set to the following times and temperatures:- Period 1 Period 2 Period 3 Period 4 Period 5 Period 6 06:00 20⁰C 08:00 15⁰C 11.30 15⁰C 13.30 15⁰C 17:00 20⁰C 22:00 15⁰C By default, the controller is set to 5+2 days. This means when programming Monday – Friday settings will all be the same and you can then program different settings for Saturday –...
-
Page 4: Installation Safety Instructions
Holiday / Shutdown Mode – Note: 1 day = 24 hours count down Holiday days (count down) and temperature set point can be set so that the heating runs at a lower temperature whilst you are away and reverts back to normal when you return. To access, make sure controller is on and then press button for 3-5 seconds until the screen displays “Off”. - Page 5 4. I N STA LLA TIO N. The OUH3-WiFi thermostat can be used with its internal air sensor or if required with an optional remote air sensor or optional remote black bulb sensor. Optional IP Rated Optional Black Optional IP Rated...
-
Page 6: Switch Modes
Decide if it is easier to drill holes for cable glands or conduit in the enclosure before mounting • to the wall. Screw the OUH3-WiFi in position using suitable fixtures and fittings allowing space to the right • to access the control switch. - Page 7 5. C HA NG I NG TH E M AS T ER / D EF AU LT S ETT IN G S . There are various master / default settings that can be changed by entering the default settings. To enter these settings, turn off the thermostat by pressing the button.
- Page 8 IMPORTANT: No liability is accepted for incorrect use of this product. Crawley, RH10 1TN WARRANTY: Your BN Thermic product is guaranteed for one year from date of Tel: 01293 547361 purchase. We will repair or replace at our discretion any part found to be defective. We sales@bnthermic.co.uk...
