Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will,
if used according to these instructions and properly maintained, give you years of trouble free
performance. Please ensure instructions remain with your customer for their reference.
REGISTER: PLEASE REGISTER THIS PRODUCT ONLINE TO ACTIVATE
IMPORTANT: PLEASE READ THESE INSTRUCTIONS, NOTE THE SAFE
OPERATIONAL REQUIREMENTS, WARNINGS, AND CAUTIONS. USE THIS
PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY.
S E C T I O N A – U S E R I N S T R U C T I O N S .
For installation instructions go to page 4
1. I NTR O D UCT IO N & S P EC IF IC ATIO N .

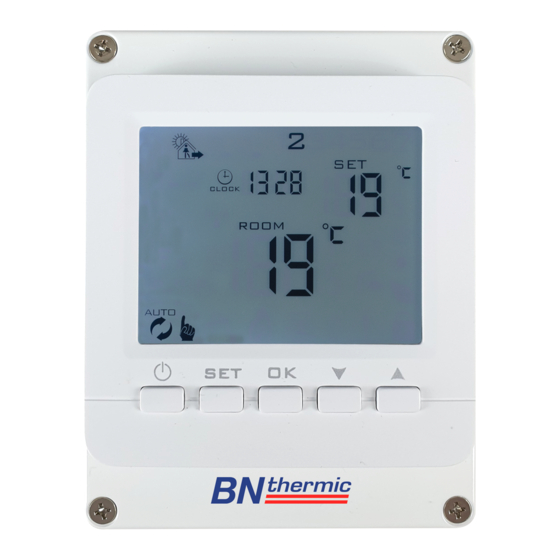

The RT16 Thermostat is an easy to install and use 7 Day, 6/1 Day
or 5 / 2 Day Programmable Thermostat which offers four time and
temperature changes each day. It is designed to provide automatic
time and temperature control for heating applications using air
temperature or remote-mounted temperature sensor. All settings
are stored in the controller with battery back-up.
Programming
Power Supply
Remote Sensor (Optional)
Temperature Range
Display
Number of Programs Per Day 4
Tamper Resistant
Dimensions
Electrical Protection
Complies with:
YOUR GUARANTEE AT www.bnthermic.co.uk
RT16- Programmable Heater Controller
7 Day, 6+1 Day or 5+2 Day (Default 5+2 Day)
230V ac 50 Hz 16A Maximum Load (Battery back-up)
NTC (10KΩ) +/- 0.5°C at 20°C
1°C to 45°C (Default 5°C to 30°C)
LCD + back light that comes on for short period when any button
pressed.
Facility for locking all buttons or just temperature adjustment
buttons.
120mm (H) x 94mm (W) x 57mm (D).
Class II
EN 301489-1, EMC Directive 2014/30/EU,
EN60950-1:2006+a11:2009+a1:2010+a12:2011+
a2:2013
INSTRUCTIONS FOR:-
PROGRAMMABLE CONTROLLER
Model:- RT16
IP20
Advertisement
Table of Contents
Related Manuals for BN Thermic RT16
Summary of Contents for BN Thermic RT16

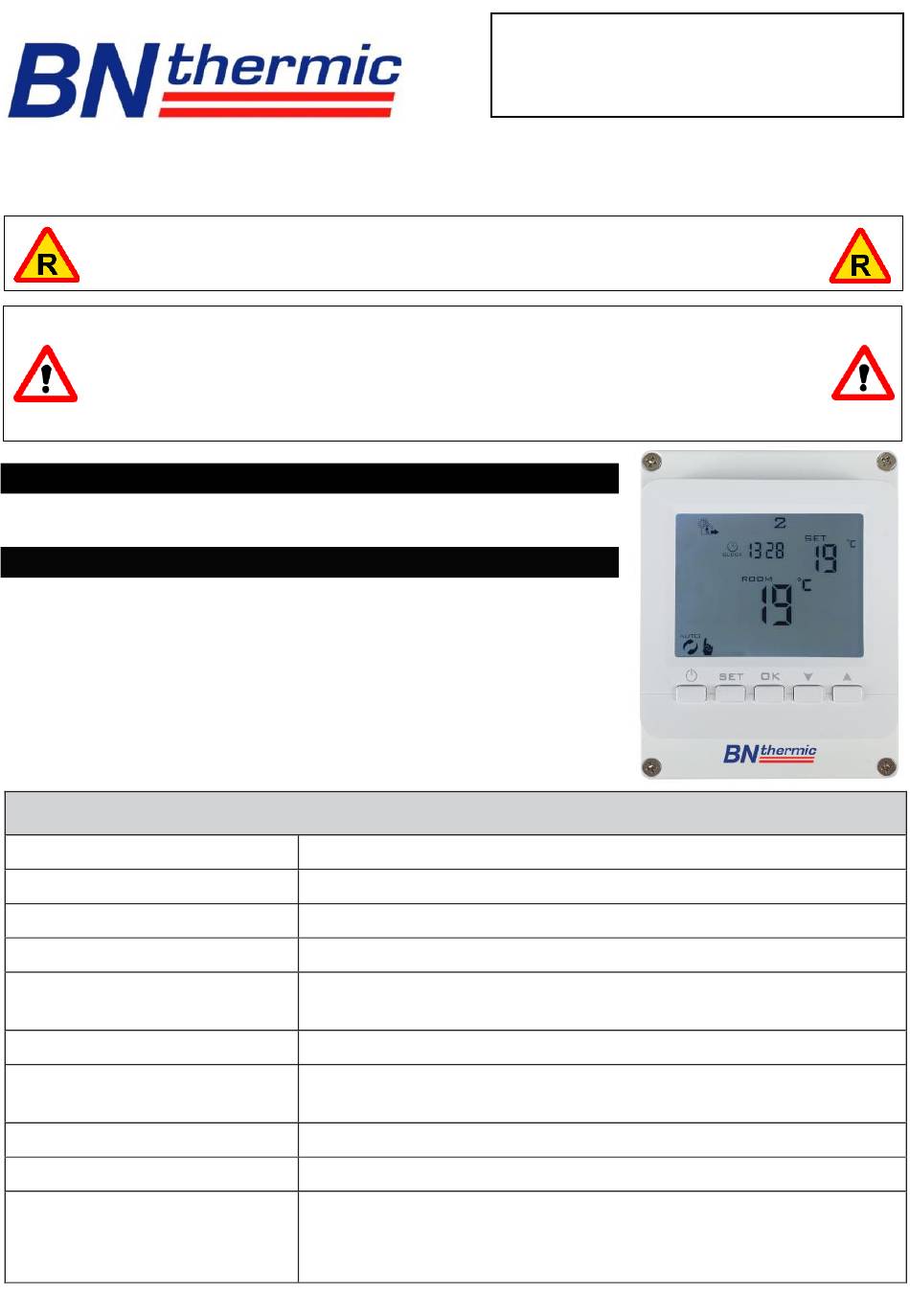

- Page 1 PROGRAMMABLE CONTROLLER Model:- RT16 Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will, if used according to these instructions and properly maintained, give you years of trouble free performance. Please ensure instructions remain with your customer for their reference.
- Page 2 2 . O P ER ATI NG G U ID E . To Set Time and Week Day Number a) Turn thermostat on by pressing button. b) Press the button and the minutes will start to flash. Adjust the minutes by pressing the buttons.
- Page 3 By default the controller is set to 5+2 days this means when programming Monday – Friday settings will all be the same and you can then program different settings for Saturday – Sunday. If you require 7 day or 6+1 day settings enter defeult settings and adjust paramenters first (See section 5). To adjust or program the time &...
- Page 4 S E C T I O N B – I N S T A L L A T I O N A N D M A S T E R S E T T I N G S . 3. I N STA LLA TIO N S A FET Y I N ST RU CTIO N S . 3.1 ELECTRICAL SAFETY WARNING! It is the responsibility of the owner and the installer to read, understand and comply with the following:...
- Page 5 4. INSTALLATION. The RT16 thermostat can be used with its internal air sensor or if required with an optional remote air sensor or optional remote black bulb sensor. Optional Air Sensor Optional Black Bulb Sensor Part No. CXS Part No. BBS 4.1 CHOOSING A LOCATION FOR YOUR RT16 OR REMOTE SENSORS...
- Page 6 4.2 INSTALLING THE RT16 Screw the RT16 in position using suitable fixtures and fittings. There are holes in the back of the case which allow it to be secured to a single gang back box or round surface mount box should you require an additional box or are replacing an existing thermostat.
- Page 7 5. C HA NG I NG TH E M AS T ER / D EF AU LT S ETT IN G S . There are various master / default settings that can be changed by entering the default settings. To enter these settings, turn off the thermostat by pressing the button.
- Page 8 IMPORTANT: No liability is accepted for incorrect use of this product. Crawley, RH10 1TN WARRANTY: Your BN Thermic product is guaranteed for one year from date of Tel: +44 (0) 1293 547361 purchase. We will repair or replace at our discretion any part found to be defective. We Email: sales@bnthermic.co.uk...
