BN Thermic RD16 Instructions Manual

Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will,
if used according to these instructions and properly maintained, give you years of trouble free
performance. Please ensure instructions remain with your customer for their reference.
REGISTER: PLEASE REGISTER THIS PRODUCT ONLINE TO ACTIVATE
IMPORTANT: PLEASE READ THESE INSTRUCTIONS, NOTE THE SAFE
OPERATIONAL REQUIREMENTS, WARNINGS, AND CAUTIONS. USE THIS
PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY.
S E C T I O N A – U S E R I N S T R U C T I O N S .
For installation instructions go to page 4
1. I NTR O D UCT IO N & S P EC IF IC ATIO N.

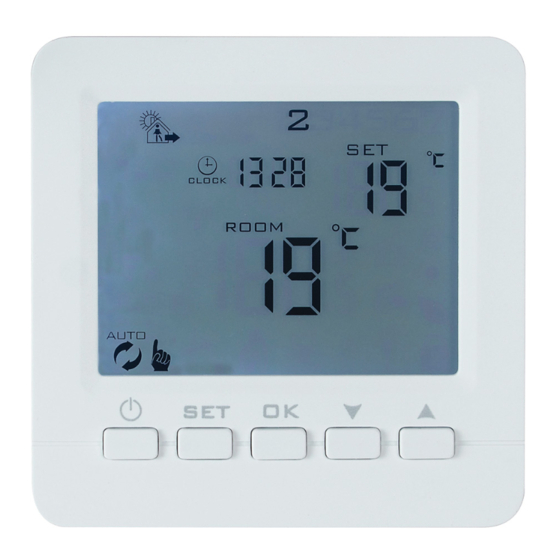

The RD16 Thermostat is an easy to install and use 7 Day,
6/1 Day or 5 / 2 Day Programmable Room Thermostat
which offers four time and temperature changes each day.
It is designed to provide automatic time and temperature
control for heating using its inbuilt air temperature sensor
or a remote sensor (optional extra). All settings are stored
in the controller with battery back-up.
Programming
Power Supply
Remote Sensor (Optional)
Temperature Range
Display
Number of Programs Per Day 4
Tamper Resistant
Dimensions
Electrical Protection
Complies with:
YOUR GUARANTEE AT www.bnthermic.co.uk
RD16- Programmable Heater Controller
7 Day, 6+1 Day or 5+2 Day (Default 5+2 Day)
230V ac 50 Hz 16A Maximum Load (Battery back-up)
CXS, CXSIP, BBS and BBSIP (IP versions are IP65 rated)
1°C to 45°C (Default 5°C to 30°C)
LCD + back light that comes on for short period when any button
pressed.
Facility for locking all buttons or all buttons except "On / Off".
86mm x 86mm x 15mm deep when recessed. Fits standard
35mm recess boxes.
Class II
EN 301489-1, EMC Directive 2014/30/EU,
EN60950-1:2006 + a11:2009 + a1:2010 +
a12:2011 + a2:2013
INSTRUCTIONS FOR:-
PROGRAMMABLE CONTROLLER
Model:- RD16
IP20
