BN Thermic OUH3-DT Instructions Manual

Programmable heater controller
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will,
if used according to these instructions and properly maintained, give you years of trouble free
performance. Please ensure instructions remain with your customer for their reference.
REGISTER: PLEASE REGISTER THIS PRODUCT ONLINE TO ACTIVATE
IMPORTANT: PLEASE READ THESE INSTRUCTIONS, NOTE THE SAFE OPERATIONAL
REQUIREMENTS, WARNINGS, AND CAUTIONS. USE THIS PRODUCT CORRECTLY, AND
WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY
CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
S E C T I O N A – U S E R I N S T R U C T I O N S .
For installation instructions go to page 4
1. I NTR O D UCT IO N & S P EC IF IC ATIO N.

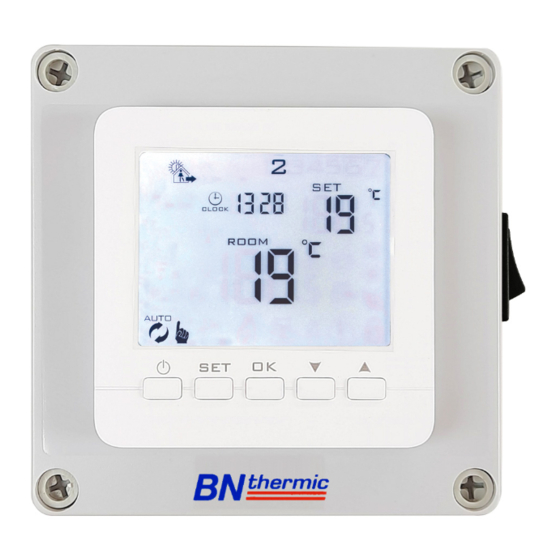

The OUH3-DT Controller includes a mode switch on the
right side for OFF, Fan Only or Heat using the digital
thermostat. It is easy to install wiring directly to an OUH3
heaters 3A fused supply. The Programmable Thermostat
offers 7 Day, 6/1 Day or 5 / 2 Day settings and four time
and temperature changes each day. It is designed to
provide automatic time and temperature control for heating
applications using its inbuilt air temperature sensor or a
remote-mounted temperature sensor. Supplied with 2 x M20 Cable glands.
Programming
Power Supply
Remote Sensor (Optional)
Temperature Range
Display
Programs Per Day
Tamper Resistant
Dimensions
Electrical Protection
Complies with:
YOUR GUARANTEE AT www.bnthermic.co.uk
OUH3-DT- Programmable Heater Controller
7 Day, 6+1 Day or 5+2 Day (Default 5+2 Day)
230V (Fed from a 3A fused supply inside OUH3 Heater (Battery back-up
for settings)
CXS, CXSIP, BBS and BBSIP (IP versions are IP65 rated)
1°C to 45°C (Default 5°C to 30°C)
LCD + back light that operates when any button is pressed.
4
Facility for locking all thermostat buttons or all thermostat buttons except
"On / Off" button. Note: Mode switch on side still operates for "Fan Only"
when thermostat does not require heat.
125mm (H) x 132mm (W) x 90mm (D).
IP20
EN 301489-1, EMC Directive 2014/30/EU,
EN60950-1:2006+a11:2009+a1:2010+a12:2011+a2:2013
INSTRUCTIONS FOR:-
PROGRAMMABLE CONTROLLER
Model:- OUH3-DT

Advertisement

Table of Contents
loading

Related Manuals for BN Thermic OUH3-DT

Summary of Contents for BN Thermic OUH3-DT

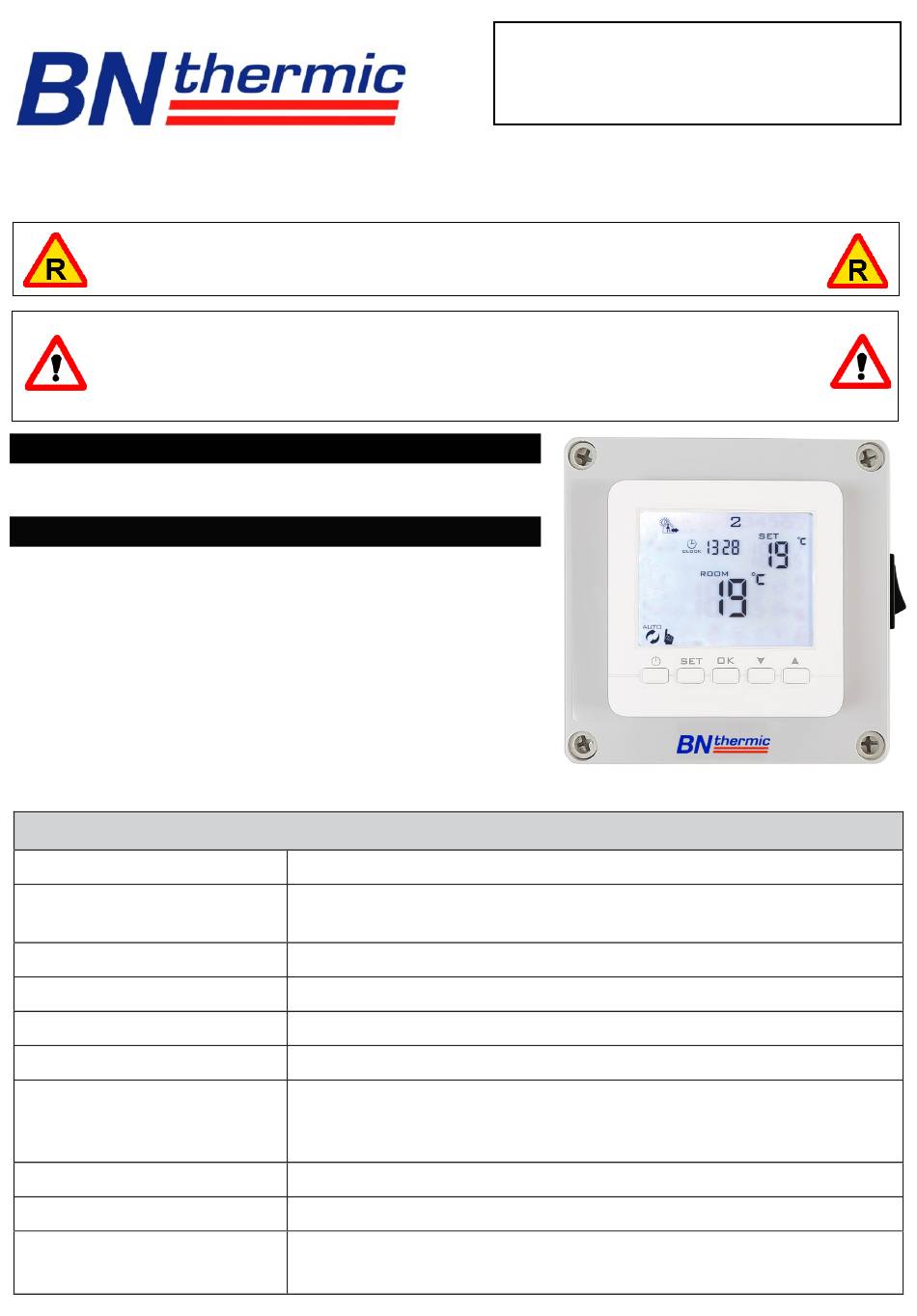

  • Page 1 PROGRAMMABLE CONTROLLER Model:- OUH3-DT Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will, if used according to these instructions and properly maintained, give you years of trouble free performance. Please ensure instructions remain with your customer for their reference.
  • Page 2 2. O P ER ATI NG G UI D E. To Set Time and Week Day Number a) Turn thermostat on by pressing button. b) Press the button and the minutes will start to flash. Adjust the minutes by pressing the buttons.
  • Page 3 By default the thermostat is set to 5+2 days this means when programming Monday – Friday settings will all be the same and you can then program different settings for Saturday – Sunday. If you require 7 day or 6+1 day settings enter default settings and adjust parameters first (See section 5).

  • Page 4: Installation Safety Instructions

    S E C T I O N B – I N S T A L L A T I O N A N D M A S T E R S E T T I N G S . 3. I N STA LLA TIO N S A FET Y I N ST RU CTIO N S . 3.1 ELECTRICAL SAFETY WARNING! It is the responsibility of the owner and the installer to read, understand and comply with the following:...

  • Page 5: Installation

    4. I N STA LLA TIO N. The OUH3-DT thermostat can be used with its internal air sensor or if required with an optional remote air sensor or optional remote black bulb sensor. Optional IP Rated Optional Black Optional IP Rated...

  • Page 6: Switch Modes

    Decide if it is easier to drill holes for cable glands or conduit in the enclosure before mounting • to the wall. Screw the OUH3-DT in position using suitable fixtures and fittings allowing space to the right to • access the control switch.
  • Page 7 N1= Built in sensor N2= External sensor only N3= Built in sensor and external sensor. A4 Temperature sensor used NOTE.- N3 only used for specialist applications if recommended by BN Thermic. A5 lock settings 0 = half lock 1 = full lock Maximum set point of external 5⁰C - 45⁰C...
  • Page 8 6. U S ING A S A CO N V EN TIO NA L T H ER MO S TAT . It is easy to set up your OUH3-DT thermostat to operate as a simple, conventional thermostat without the need to programme different times and temperatures. There are 2 steps.
