Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will,
if used according to these instructions and properly maintained, give you years of trouble free
performance. Please ensure instructions remain with your customer for their reference.
REGISTER: PLEASE REGISTER THIS PRODUCT ONLINE TO ACTIVATE
IMPORTANT: PLEASE READ THESE INSTRUCTIONS, NOTE THE SAFE
OPERATIONAL REQUIREMENTS, WARNINGS, AND CAUTIONS. USE THIS
PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY.
S E C T I O N A – U S E R I N S T R U C T I O N S .
For installation instructions go to page 4
1. I NTR O D UCT IO N & S P EC IF IC ATIO N.

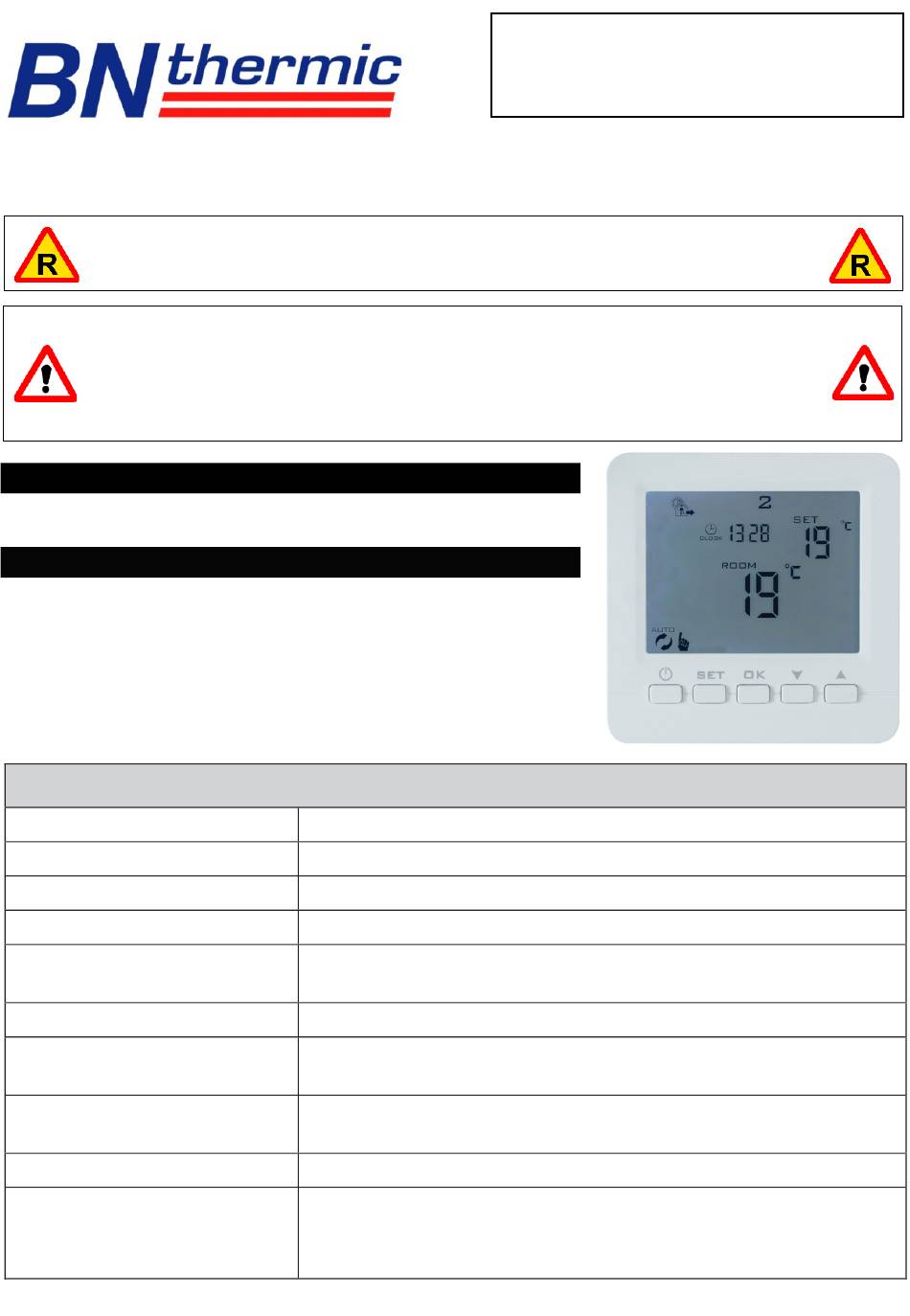

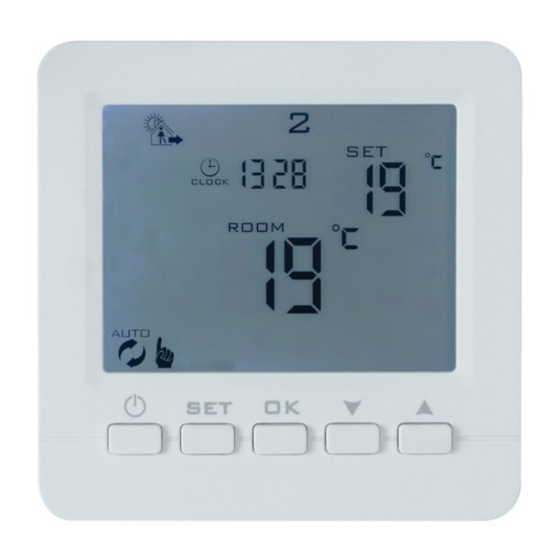

The B16C Thermostat is an easy to install and use 7 Day, 6/1
Day or 5 / 2 Day Programmable Room Thermostat which offers
four time and temperature changes each day. It is designed to
provide automatic time and temperature control for underfloor
heating using air temperature and a floor sensor. All settings
are stored in the controller with battery back-up.
Programming
Power Supply
Floor Temperature Sensor
Temperature Range
Display
Number of Programs Per Day 4
Tamper Resistant
Dimensions
Electrical Protection
Complies with:
YOUR GUARANTEE AT www.bnthermic.co.uk
B16C- Programmable Heater Controller
7 Day, 6+1 Day or 5+2 Day (Default 5+2 Day)
230V ac 50 Hz 16A Maximum Load (Battery back-up)
NTC (10KΩ) +/- 0.5°C at 20°C
1°C to 45°C (Default 5°C to 30°C)
LCD + back light that comes on for short period when any button
pressed.
Facility for locking all buttons or just temperature adjustment
buttons.
86mm x 86mm x 15mm deep when recessed. Fits standard
recess boxes.
Class II
EN 301489-1, EMC Directive 2014/30/EU,
EN60950-1:2006+a11:2009+a1:2010+a12:2011+
a2:2013
INSTRUCTIONS FOR:-
PROGRAMMABLE CONTROLLER
Model:- B16C
IP20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BN Thermic B16C
Summary of Contents for BN Thermic B16C
- Page 1 PROGRAMMABLE CONTROLLER Model:- B16C Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will, if used according to these instructions and properly maintained, give you years of trouble free performance. Please ensure instructions remain with your customer for their reference.
- Page 2 2 . O P ER ATI NG G U ID E. To Set Time and Week Day Number a) Turn thermostat on by pressing button. b) Press the button and the minutes will start to flash. Adjust the minutes by pressing the buttons.
- Page 3 By default the controller is set to 5+2 days this means when programming Monday – Friday settings will all be the same and you can then program different settings for Saturday – Sunday. If you require 7 day or 6+1 day settings enter defeult settings and adjust paramenters first (See section 5). To adjust or program the time &...
- Page 4 S E C T I O N B – I N S T A L L A T I O N A N D M A S T E R S E T T I N G S . 3. I N STA LLA TIO N S A FET Y I N ST RU CTIO N S . 3.1 ELECTRICAL SAFETY WARNING! It is the responsibility of the owner and the installer to read, understand and comply with the following:...
- Page 5 4. INSTALLATION. 4.1 CHOOSING A LOCATION FOR YOUR B16C The B16C controller should be mounted on an internal wall approximately 1.5 meters from floor level and should be in a position away from draughts, direct heat and sunlight. 4.2 INSTALLING THE B16C...
- Page 6 3) Wire the thermostat as per picture 1 making sure all the terminals are done up tightly. An under floor sensor must be used (supplied) and this MUST only be wired to terminals 5 and 6. Polarity of the sensor does not matter.
- Page 7 5. C HA NG I NG TH E M AS T ER / D EF AU LT S ETT IN G S . There are various master / default settings that can be changed by entering the default settings. To enter these settings, turn off the thermostat by pressing the button.
- Page 8 IMPORTANT: No liability is accepted for incorrect use of this product. Crawley, RH10 1TN WARRANTY: Your BN Thermic product is guaranteed for one year from date of Tel: +44 (0) 1293 547361 purchase. We will repair or replace at our discretion any part found to be defective. We Email: sales@bnthermic.co.uk...
