Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will,
if used according to these instructions and properly maintained, give you years of trouble free
performance. Please ensure instructions remain with your customer for their reference.
REGISTER: PLEASE REGISTER THIS PRODUCT ONLINE TO ACTIVATE
IMPORTANT: PLEASE READ THESE INSTRUCTIONS, NOTE THE SAFE
OPERATIONAL REQUIREMENTS, WARNINGS, AND CAUTIONS. USE THIS
PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY.
S E C T I O N A – U S E R I N S T R U C T I O N S .
For installation instructions go to page 4
1 . INT RODUCT ION & SPECIF ICAT ION .

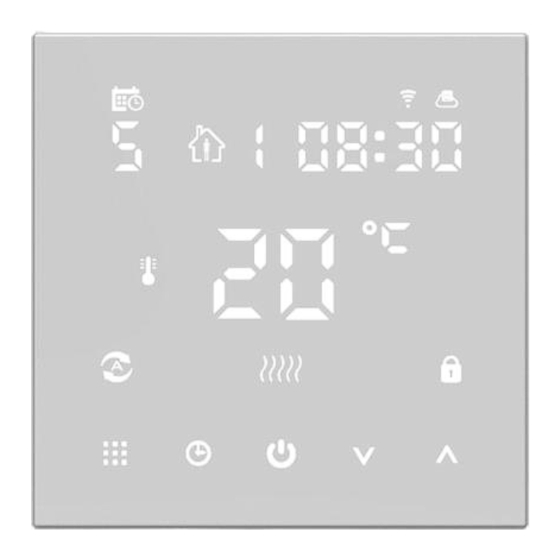

The WD16 Wi-Fi Thermostat is an easy to install and use
7 Day, 6/1 Day or 5 / 2 Day Programmable Room
Thermostat which offers six time and temperature
changes per day. It is designed to provide automatic time
and temperature control for heating using its inbuilt air
temperature sensor or a remote sensor (optional extra).
The thermostat works in conjunction with an app available
on Google Play or the App Store. All settings are stored in
the controller with battery back-up.
Programming
Power Supply
Remote Sensor (Optional)
Temperature Range
Display
No. Programs Per Day
Tamper Resistant
Dimensions
Electrical Protection
Complies with:
YOUR GUARANTEE AT www.bnthermic.co.uk
WD16- Programmable Heater Controller
7 Day, 6+1 Day or 5+2 Day (Default 5+2 Day)
230V ac 50 Hz 16A Maximum Load (Battery back-up)
CXS, CXSIP, BBS and BBSIP (IP versions are IP65 rated)
1°C to 45°C (Default 5°C to 30°C)
LED + Standby brightness setting.
6
Facility for locking the screen or the screen except "On / Off".
86mm x 86mm x 16mm deep when recessed. Fits standard
35mm recess boxes.
Class II
EN 301489-1, EMC Directive 2014/30/EU,
EN60950-1:2006 + a11:2009 + a1:2010 +
a12:2011 + a2:2013
INSTRUCTIONS FOR:-
Wi-Fi PROGRAMMABLE CONTROLLER
Model:- WD16
IP20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BN Thermic WD16
Summary of Contents for BN Thermic WD16

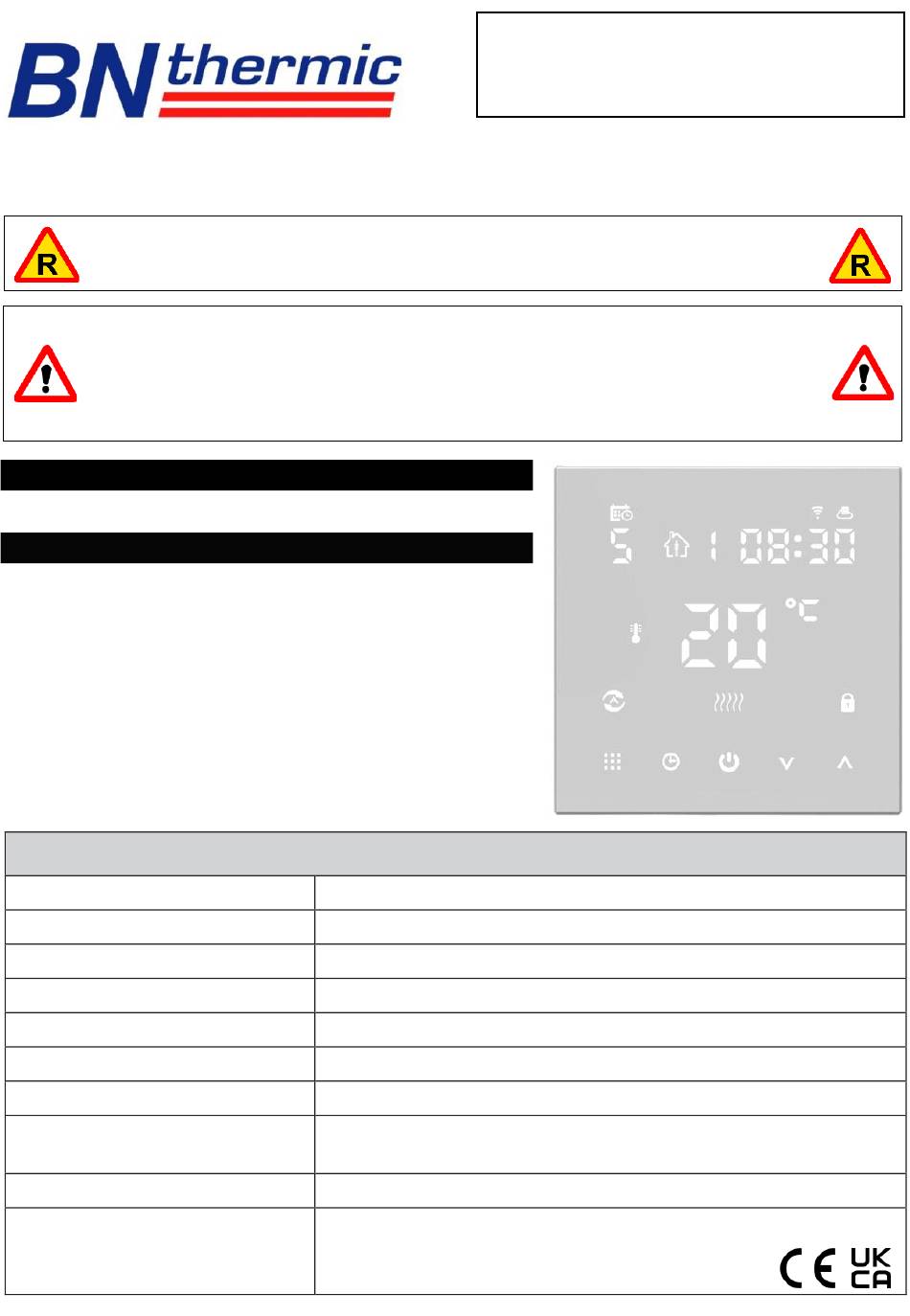

- Page 1 Wi-Fi PROGRAMMABLE CONTROLLER Model:- WD16 Thank you for purchasing a BN Thermic product. Manufactured to a high standard, this product will, if used according to these instructions and properly maintained, give you years of trouble free performance. Please ensure instructions remain with your customer for their reference.
- Page 2 2 . O PERAT IN G GU IDE . Connecting Thermostat to Android or iPhone App You will need a 4G or 5G mobile phone and wireless router. Download “Smart RM” app from Google Play (Android users) or the App Store (iPhone users).
- Page 3 Programming - The controller is pre-set to the following times and temperatures:- Period 1 Period 2 Period 3 Period 4 Period 5 Period 6 06:00 20⁰C 08:00 15⁰C 11.30 15⁰C 13.30 15⁰C 17:00 20⁰C 22:00 15⁰C By default, the controller is set to 5+2 days. This means when programming Monday – Friday settings will all be the same and you can then program different settings for Saturday –...
-
Page 4: Installation Safety Instructions
Holiday Mode – Note: 1 day = 24 hours count down Holiday days (count down) and temperature set point can be set so that the heating runs at a lower temperature whilst you are away and reverts back to normal when you return. To access, make button for 3-5 seconds until the screen displays “Off”. -
Page 5: Installation
4 . IN ST ALLAT ION . 4.1 CHOOSING A LOCATION FOR YOUR WD16 The WD16 controller should be mounted on an internal wall approximately 1.5 meters from floor level and should be in a position away from draughts, direct heat and sunlight. -
Page 6: Optional Remote Sensors
4.3 OPTIONAL REMOTE SENSORS There are 4 types of remote sensors that can be used with the RD16 thermostat Optional IP Rated Optional Air Optional IP Rated Optional Black Black Bulb Sensor Sensor Air Sensor Bulb Sensor Part No. BBSIP Part No. - Page 7 5 . CHAN G ING T H E MA ST ER / DEFAU LT SET T ING S. There are various master / default settings that can be changed by entering the default settings. To enter these settings, turn off the thermostat by pressing the button.
- Page 8 IMPORTANT: No liability is accepted for incorrect use of this product. Crawley, RH10 1TN WARRANTY: Your BN Thermic product is guaranteed for one year from date of Tel: +44 (0) 1293 547361 purchase. We will repair or replace at our discretion any part found to be defective. We sales@bnthermic.co.uk...
