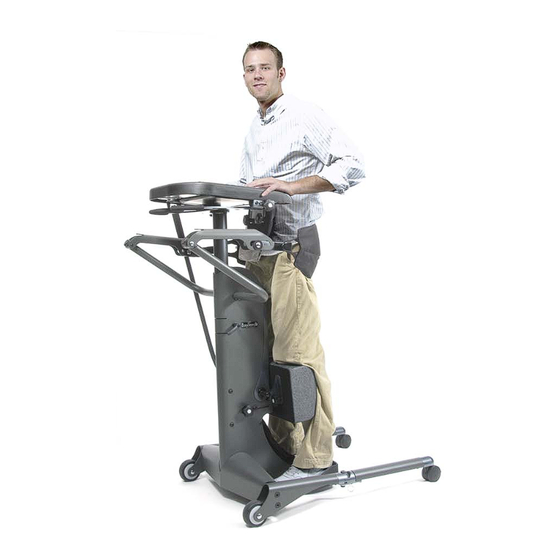

EasyStand StrapStand Owner's Manual

Hide thumbs Also See for StrapStand:
Table of Contents

Advertisement

Quick Links

Download this manual
™
™
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for EasyStand StrapStand

Summary of Contents for EasyStand StrapStand

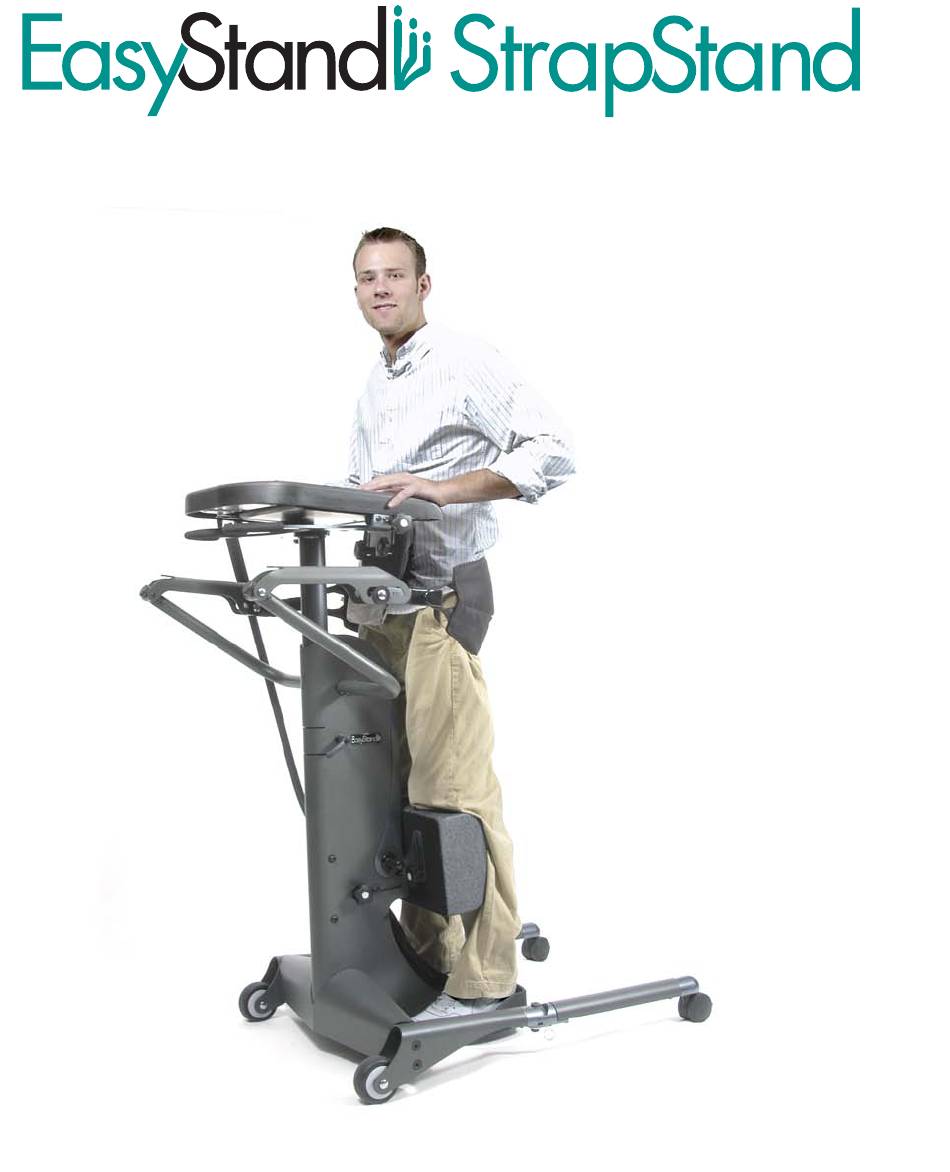

  • Page 1 ™ ™ Owner’s Manual...

  • Page 2: Table Of Contents

    Adjusting Your StrapStand ....6 Using Your StrapStand ....8 Maintenance .

  • Page 3: Introduction

    Altimate Medical, Inc. at 1-800-342-8968 or 507-697-6393 or visit our website at www.altimatemedical.com. It is necessary that you inspect your StrapStand periodically to assure that it is in safe operating condition. Minor adjustments can be made by the operator. However, replacement of worn parts, major adjustments, or any other important corrections should be handled by an authorized supplier or service center.

  • Page 4: Safety Precautions

    • Check your StrapStand periodically to make sure that all nuts, bolts and adjustable parts are tightened securely. • Do not transport anyone with the StrapStand on padded or deep pile carpet. It may interfere with the wheel and caster movement.

  • Page 5: Assembling Your Strapstand

    ® ™ Assembling your EasyStand StrapStand The basic StrapStand includes the following parts: base, 2 lifting arms, 2 legs, strap, actuator handle, formed table with insert, kneepad, footrest, tools and owner’s manual. Remove the bolts from the footrest, unzip the tool pouch on the base of the unit and attach footrest with two bolts.
  • Page 6 Bring the unit to the standing position and attach the formed table with bolts found in the table. Attach front pad with the two knobs as shown. Tighten securely. Attach kneepad with the two knobs as shown. Tighten securely. Fig. A Fig.
  • Page 7 Remove the bolts from the actuator handle and attach to the actuator shaft. Use the bolt holes that will align the handle vertically, as shown. It can be mounted on the left or right side. Tighten bolts securely. Place the tools in the pouch at the base of unit for later use when needed.

  • Page 8: Adjusting Your Strapstand

    ® ™ Adjusting your EasyStand StrapStand Table Height To adjust the height of the table and front pad, loosen the knob located under the lift arms. Lift the table to its desired height and tighten the knob securely. Table Depth...
  • Page 9 Kneepad Height To adjust the kneepad height, loosen the knobs on both sides of the kneepad. Lift kneepad to desired height and tighten both knobs securely. Kneepad Depth To adjust the kneepad depth, loosen the knobs located on each side of the unit behind the kneepad.

  • Page 10: Using Your Strapstand

    Using your EasyStand StrapStand To use the StrapStand, position your wheelchair as close as possible to the kneepad. Casters on the StrapStand should be in the locked position. WARNING: Consult your therapist or doctor before starting any standing program. Position your feet in the foot holders.
  • Page 11 After attaching the strap to the lifting arms, adjust hook position for your preference (see step #7). Adjust the placement of the strap under your buttocks so that the top edge of the strap is slightly under your belt line. Slide it into place with your hand as shown.
  • Page 12 unequal strap equal strap pressure pressure When in the standing position, fig. B fig. A the lifting arms should be positioned with only a slight upward pull (fig. A). Check for equal pressure on top and bottom edge of strap. Improper adjustment will pull up on the user (fig.

  • Page 13: Maintenance

    StrapStand will be needed. • Do not exert excessive force on the pump handle or use the pump handle to move your EasyStand around. This may cause damage to the pump handle and/or the pump mechanism and will void any warranty.

  • Page 14: Parts Detail

    ® ™ EasyStand StrapStand Parts Detail FIG A page 12 Parts Detail...
  • Page 15 page 13 Parts Detail...
  • Page 16 page 14 Parts Detail...
  • Page 17 Actuator Handle Extension #P5022 XL Footplate w/Straps #P80969 page 15 Parts Detail...
  • Page 18 Secure Foot Option #P80616 Foot Holders w/Straps #P80634 page 16 Parts Detail...
  • Page 19 Angle Adjustable Table #P81011 Black Molded Table #P80755 page 17 Parts Detail...
  • Page 20 Standard Legs #P80954 Swing-out Legs #P80948 page 18 Parts Detail...
  • Page 21 Upper Body Support Strap #P80829 Standard Kneepad #P210464 XL Kneepad #P80958 page 19 Parts Detail...
  • Page 22 Small Lifting Strap #P80811 Small Adjustable Lifting Strap #P80882 page 20 Parts Detail...
  • Page 23 Large Lifting Strap #P80719 Large Adjustable Lifting Strap #P80881 page 21 Parts Detail...
  • Page 24 XL Lifting Strap #P80962 XL Adjustable Lifting Strap #P80963 page 22 Parts Detail...

  • Page 25: Standing Log

    page 23 Standing Log...

  • Page 26: Specifications

    ® ™ EasyStand StrapStand Specifications EasyStand StrapStand 152-198cm 5’0”-6’5” Height Range 159kg 350 lbs. Weight Limit 30x71cm 12”x28” Strap Size (large) 23x66cm 9”x26” Strap Size (small) Kneepad Height Range 37-50cm -from footplate 14.5”-19.5” Kneepad Depth Range 9-15cm -from back of heal 3.5”-6”...

  • Page 27: Limited Warranty

    Limited Warranty This warranty is extended only to the original purchaser/customer (or supplier non consumer who does not buy or resell). Altimate Medical, Inc. (AMI) warrants the EasyStand StrapStand against defects in materials and workmanship as listed below. • Steel Frames - 5 year warranty •...
  • Page 28 262 West 1st St Morton, MN 56270 Toll Free: 800.342.8968 or 507.697.6393 Fax Free: 877.342.8968 or 507.697.6900 email: info@easystand.com www.easystand.com ™ Standing technology should only be used under the guidance of a physician with recommendations for standing program protocol and any medical precautions.
