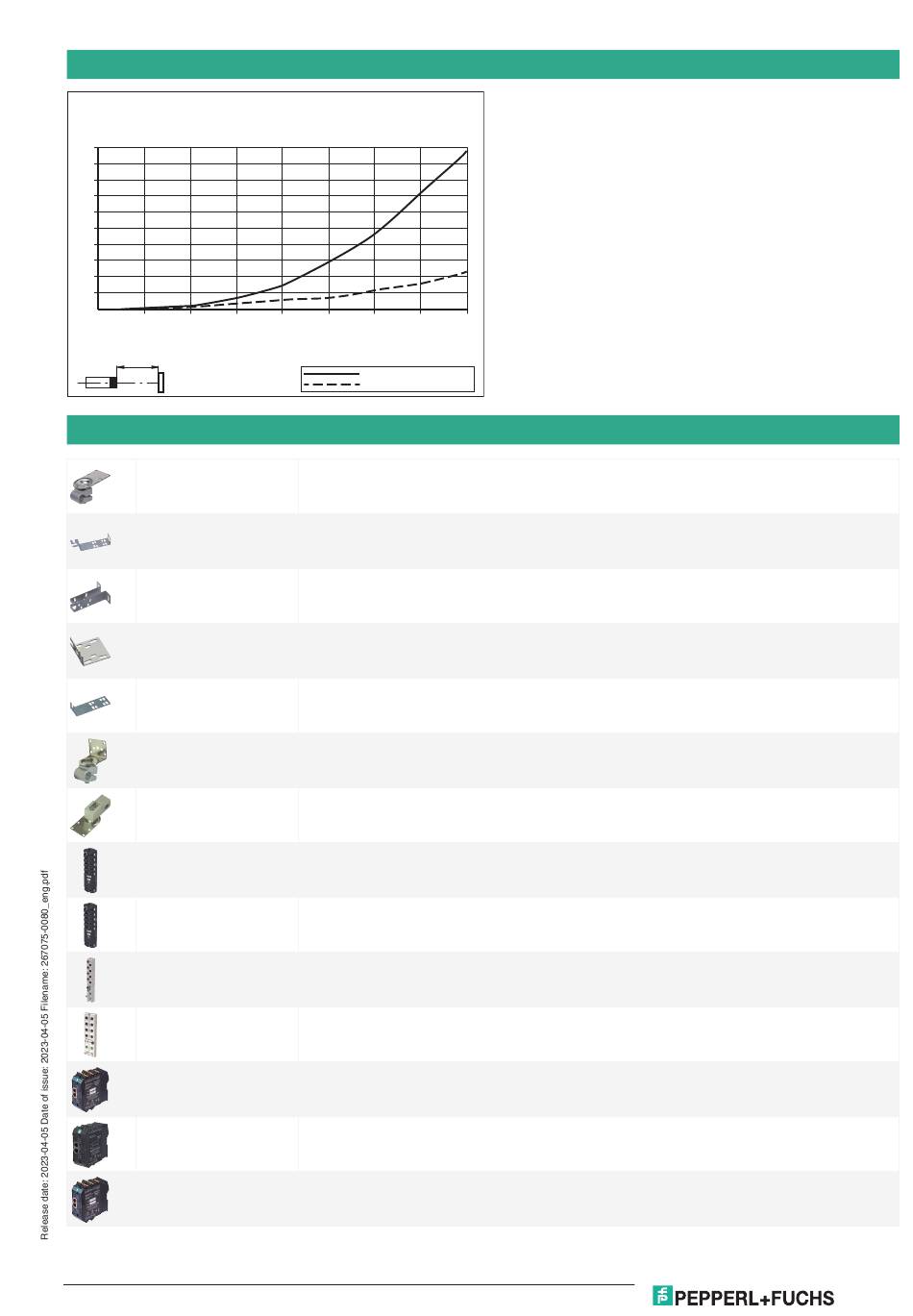

Pepperl+Fuchs OBT350-R100-2EP-IO Manual page 5

Triangulation sensor (BGS)
Characteristic Curve
Difference in detection distance
Deviation of measured detection distance X [%]
20
18
16
14
12
10
8
6
4
2
0
0 50 100 150
X
Accessories
OMH-ML100-09
OMH-R10X-01
OMH-R10X-02
OMH-R10X-04
OMH-R10X-10
OMH-ML100-03
OMH-ML100-031
ICE2-8IOL-G65L-V1D
ICE3-8IOL-G65L-V1D
ICE1-8IOL-G30L-V1D
ICE1-8IOL-G60L-V1D
ICE2-8IOL-K45P-RJ45
ICE2-8IOL-K45S-RJ45
ICE3-8IOL-K45P-RJ45
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0001
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com
200 250 300 350
Adjusted detection distance X [mm]
black / white
grey / white
Mounting aid for round steel ø 12 mm or sheet 1.5 mm ... 3 mm
Mounting bracket
Mounting bracket
Mounting bracket
Mounting bracket
Mounting aid for round steel ø 12 mm or sheet 1.5 mm ... 3 mm
Mounting aid for round steel ø 10 ... 14 mm or sheet 1 mm ... 5 mm
EtherNet/IP IO-Link master with 8 inputs/outputs
PROFINET IO IO-Link master with 8 inputs/outputs
Ethernet IO-Link module with 8 inputs/outputs
Ethernet IO-Link module with 8 inputs/outputs
EtherNet/IP IO-Link master with 8 inputs/outputs, DIN rail, push-in connectors
EtherNet/IP IO-Link master with 8 inputs/outputs, DIN rail, screw terminal
PROFINET IO IO-Link master with 8 inputs/outputs, DIN rail, push-in terminals
Germany: +49 621 776 1111
fa-info@de.pepperl-fuchs.com
400
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
OBT350-R100-2EP-IO
5
