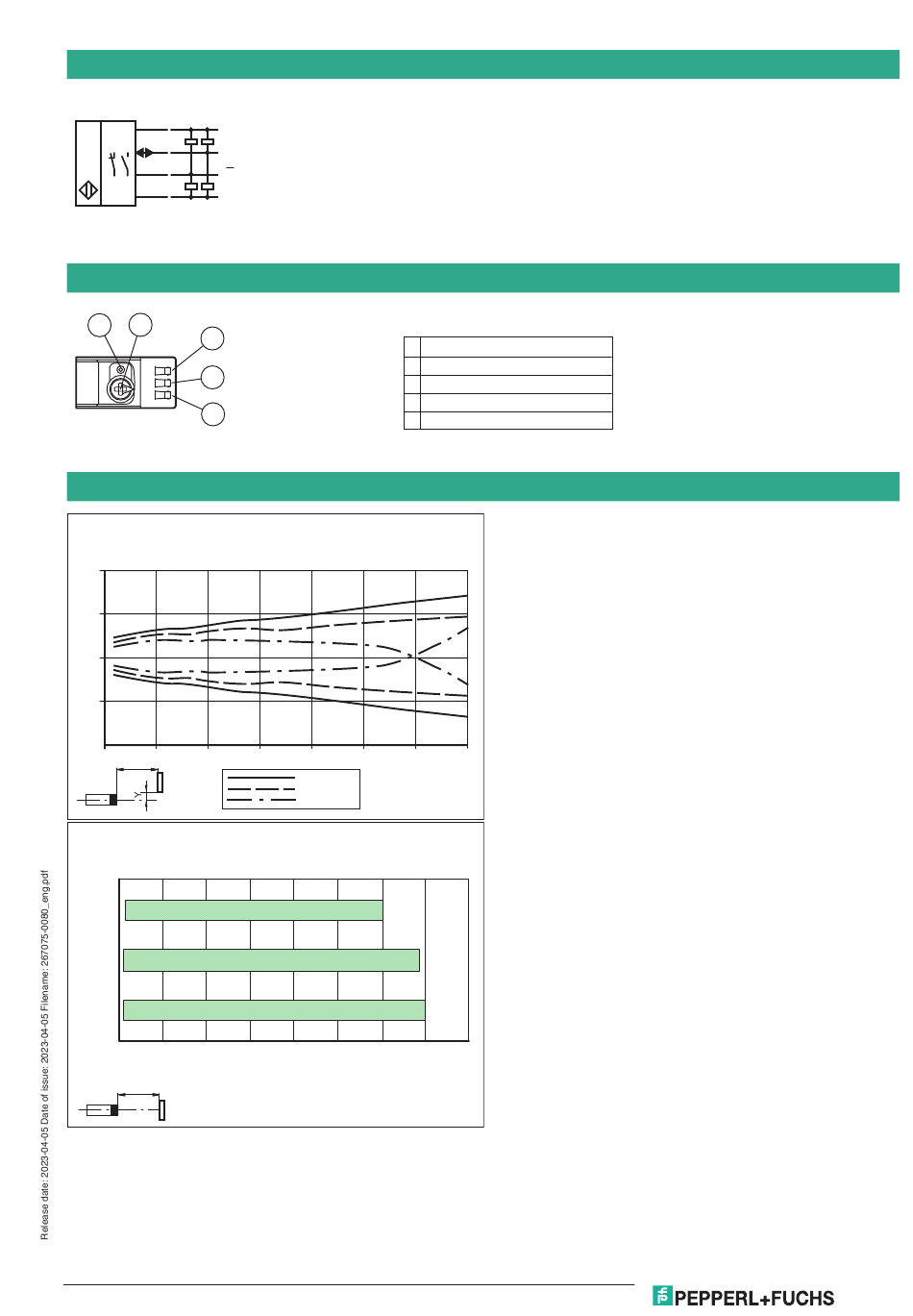

Characteristic Curve - Pepperl+Fuchs OBT350-R100-2EP-IO Manual

Triangulation sensor (BGS)
Connection
BN
L+
BK
C/Q
WH
Q
BU
L-
Assembly
2
1
3
4
5

Characteristic Curve

Characteristic response curve
Offset Y [mm]
-10
-5
0
5
10
0 50 100
X
Detection ranges
Object colour
black
grey
white
0 50 100
X
