Pepperl+Fuchs OBR15M-R200-2EP-IO-0,3M-V1 Manual

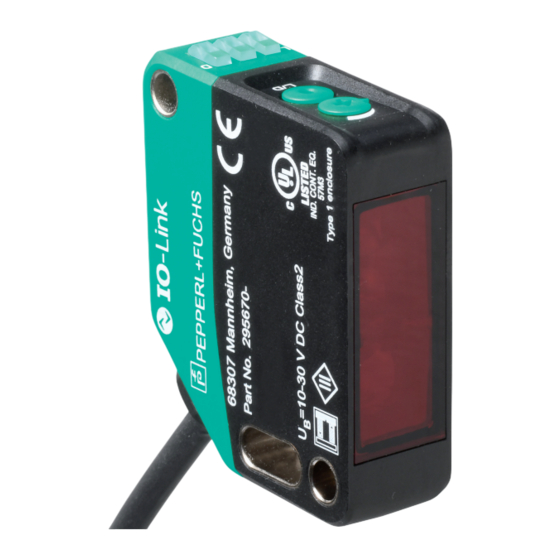

Retroreflective sensor with polarization filter
Function
The optical sensors in the series are the first devices to offer an end-to-end solution in a medium-sized standard design – from the thru-beam
sensor through to the measuring distance sensor. As a result of this design, the sensors are able to perform practically all standard automation
tasks.
The entire series enables sensors to communicate via IO-Link.
The DuraBeam laser sensors are durable and can be used in the same way as a standard sensor.
Multi Pixel Technology (MPT) ensures that the standard sensors are flexible and can be adapted to the application environment.
Dimensions
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0001
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com
Retroreflective sensor with polarization
filter
OBR15M-R200-2EP-IO-0,3M-V1
< Medium design with versatile mounting options
<
Extended temperature range
-40 °C ... 60 °C
< High degree of protection IP69K
< IO-Link interface for service and process data
29.9 6
5.8 7 7
41.7
Germany: +49 621 776 1111
fa-info@de.pepperl-fuchs.com
ø 4.3
L
Receiver
Emitter
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
47.9
1
