DEMO MANUAL DC1678A

QUICK START PROCEDURE

Connect the DC1678A to a DC590 USB serial controller

using the supplied 14 conductor ribbon cable. Connect the

DC590 to a host PC with a standard USB A/B cable. Run

the QuikEval evaluation software supplied with the DC590

or download it from www.linear.com. The correct control

panel will be loaded automatically. To update DAC value,

fill in corresponding text box.

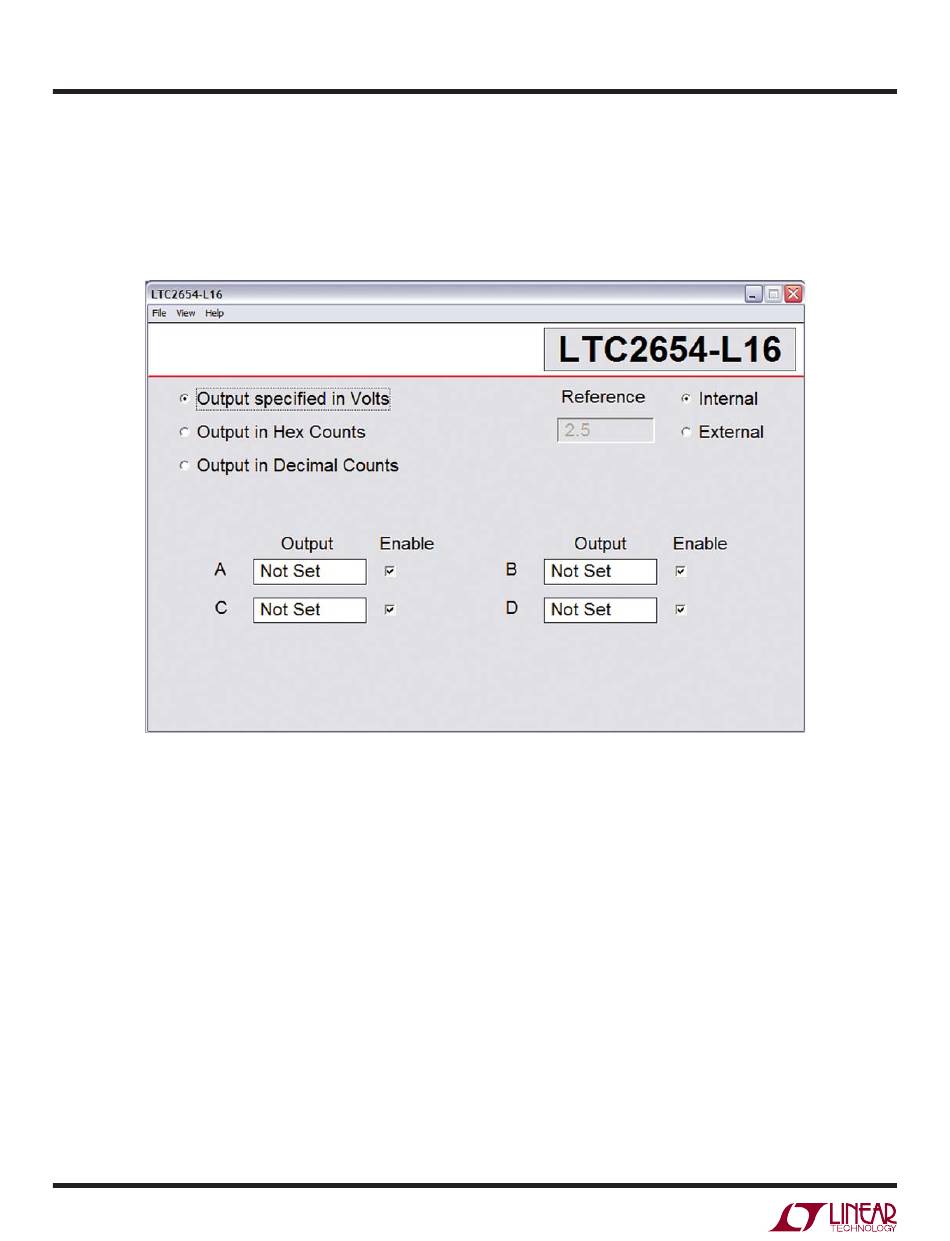

Figure 1. Demo Board Setup
