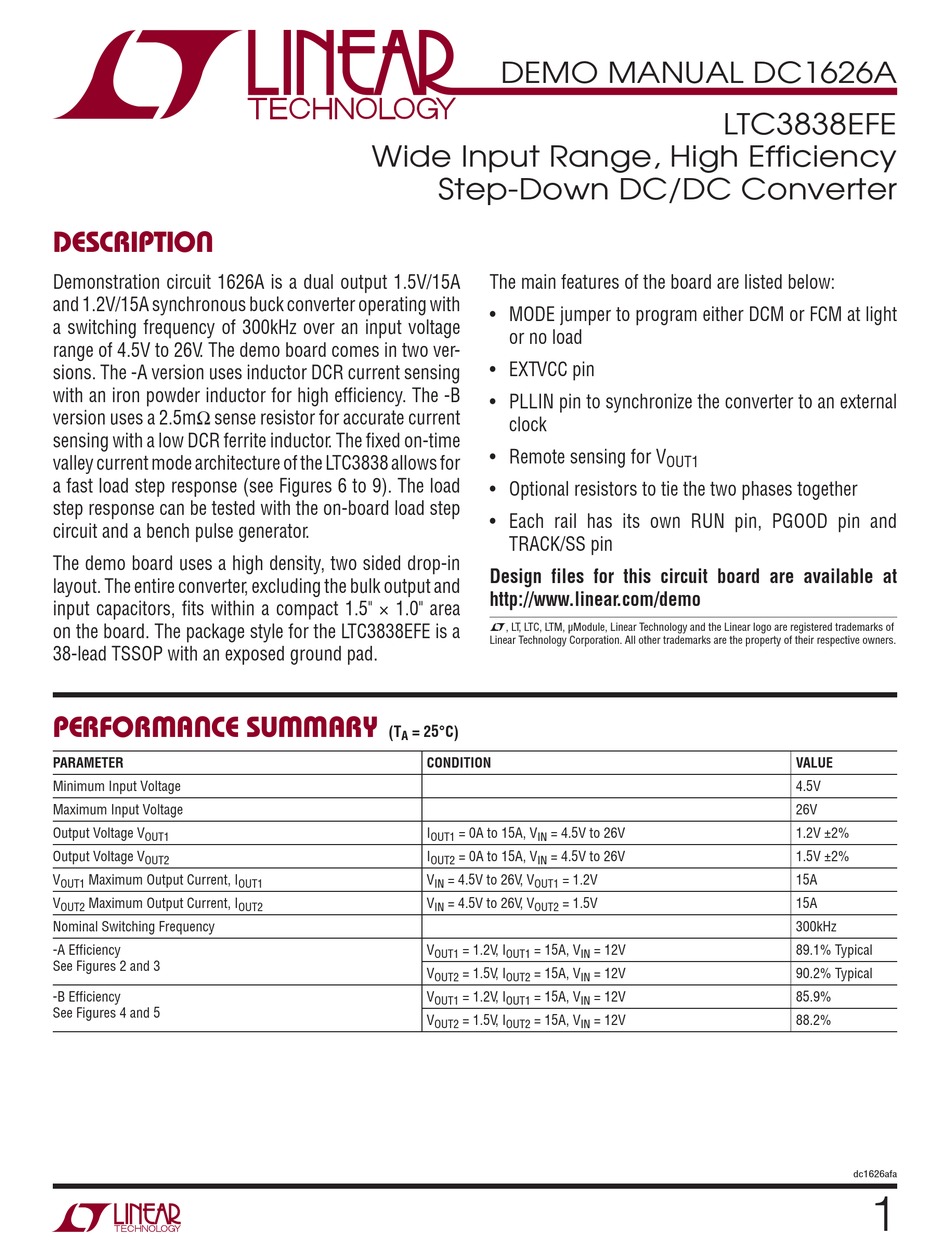

DESCRIPTION
Demonstration circuit 1626A is a dual output 1.5V/15A
and 1.2V/15A synchronous buck converter operating with
a switching frequency of 300kHz over an input voltage
range of 4.5V to 26V. The demo board comes in two ver-
sions. The -A version uses inductor DCR current sensing
with an iron powder inductor for high efficiency. The -B
version uses a 2.5mΩ sense resistor for accurate current
sensing with a low DCR ferrite inductor. The fixed on-time
valley current mode architecture of the LTC3838 allows for
a fast load step response (see Figures 6 to 9). The load
step response can be tested with the on-board load step
circuit and a bench pulse generator.
The demo board uses a high density, two sided drop-in
layout. The entire converter, excluding the bulk output and
input capacitors, fits within a compact 1.5" × 1.0" area
on the board. The package style for the LTC3838EFE is a
38-lead TSSOP with an exposed ground pad.
PERFORMANCE SUMMARY
PARAMETER
Minimum Input Voltage
Maximum Input Voltage
Output Voltage V
OUT1
Output Voltage V
OUT2
V
Maximum Output Current, I
OUT1
V
Maximum Output Current, I
OUT2
Nominal Switching Frequency
-A Efficiency
See Figures 2 and 3
-B Efficiency
See Figures 4 and 5
Wide Input Range, High Efficiency
(T
= 25°C)
A
OUT1
OUT2
DEMO MANUAL DC1626A
Step-Down DC/DC Converter
The main features of the board are listed below:
• MODE jumper to program either DCM or FCM at light
or no load
• EXTVCC pin
• PLLIN pin to synchronize the converter to an external
clock
• Remote sensing for V
• Optional resistors to tie the two phases together
• Each rail has its own RUN pin, PGOOD pin and
TRACK/SS pin
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, μModule, Linear Technology and the Linear logo are registered trademarks of
Linear Technology Corporation. All other trademarks are the property of their respective owners.
CONDITION
I
= 0A to 15A, V
= 4.5V to 26V
OUT1
IN
I
= 0A to 15A, V
= 4.5V to 26V
OUT2
IN
V
= 4.5V to 26V, V
= 1.2V
IN
OUT1
V
= 4.5V to 26V, V
= 1.5V
IN
OUT2
V
= 1.2V, I
= 15A, V
= 12V
OUT1
OUT1
IN
V
= 1.5V, I
= 15A, V
= 12V
OUT2
OUT2
IN
V
= 1.2V, I
= 15A, V
= 12V
OUT1
OUT1
IN
V
= 1.5V, I
= 15A, V
= 12V
OUT2
OUT2
IN
LTC3838EFE
OUT1
VALUE
4.5V
26V
1.2V ±2%
1.5V ±2%
15A
15A
300kHz
89.1% Typical
90.2% Typical
85.9%
88.2%
dc1626afa
1
