Summary of Contents for Mercia Garden Products 2DTSHDB0606SFD5W-V1-PEFC

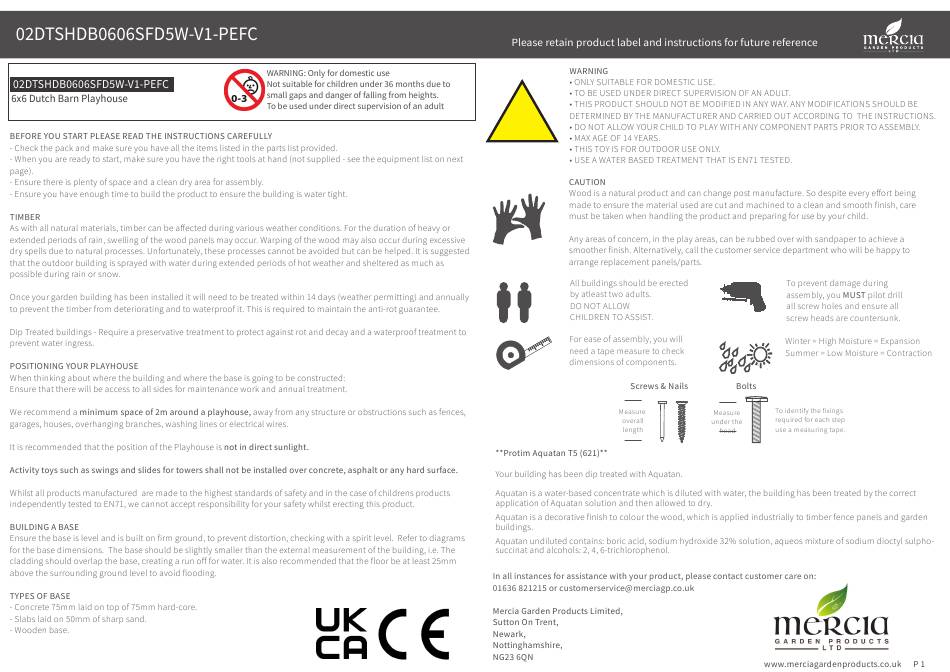

- Page 1 2mm Drill bit 12mm CSK...
- Page 2 50kg...
- Page 3 Before assembly Roof Support Bar - 28x28x1755mm QTY 1 please make sure you have a FS2828-1755mm suitable base ready to erect your building Cover Trim - 12x40x1200mm QTY 4 S1240-1200mm Fascia - 12x60x540mm QTY 4 MADE IN GREAT BRITAIN SR1260-G-540mm Overall Dimensions: Base Dimensions: Width = 1990mm...
- Page 4 Step 1 Pre Assembly Parts needed - & & & Pre drill Before assembling remove the transportation hole Fix the Window Blocks (No. 19) to the blocks from the bottom of each panel. Windows (No. 8) as shown with 1x30mm screw.
- Page 5 Step 2 Step 3 Parts needed - & & & Parts needed - Pre drill Pre drill hole hole Flip the Door Gable (No. 1) over so Place the Floor (No. 4) on your rm and the boards are facing upwards and place the level base, ensure base has suitable Door (No.
- Page 6 Step 6 Step 5 Parts needed - & Parts needed - & Pre drill Pre drill hole hole Locate the Roof Support Bar (No. 9) in Place the Door Gable (No.1) and the line with the central framing of the Door remaining Window Side (No.3) on top and Plain Gable (No.
- Page 7 Step 9 Step 7 Parts needed - Pre drill Pre drill Secure the Roofs internally, using hole hole Place the Large Roofs (No. 5) on top of 6x50mm screws per roof panel join. *Internal Views* Ensure to go through one roof panel the playhouse on either side.
- Page 8 Step 10 Step 11 Pre drill Pre drill Once the roof is tted and the building Further secure each Roof Panel in place hole hole using 30mm screws, ensuring there is no is square, secure the building to the Floor, using 50mm screws in alignment more than 300mm between each screw.
- Page 9 Step 13 Step 12 Parts needed - Parts needed - Pre drill Pre drill hole hole Locate the Cover Trims (No. 10) Cut the Felt (No. 20) into 3 sheets to each corner of the playhouse measuring: as shown. 1935mm (L) X 1000mm (W) and lay onto roof.
- Page 10 Step 14 Step 15 Parts needed - & Parts needed - Pre drill Pre drill hole hole Locate the Fascias (No. 11) centrally Position the Window Shutters (No.14) to the front and back of the around the windows on the sides of the playhouse.
- Page 11 Step 16 Parts needed - & & Pre drill hole Place a Window Cross (No. 13) against the inside of each window. Position the frame centrally to the window and x using 4x20mm screws per frame. Locate the Wooden Door Handle (No. 17) onto the outside of the door.
