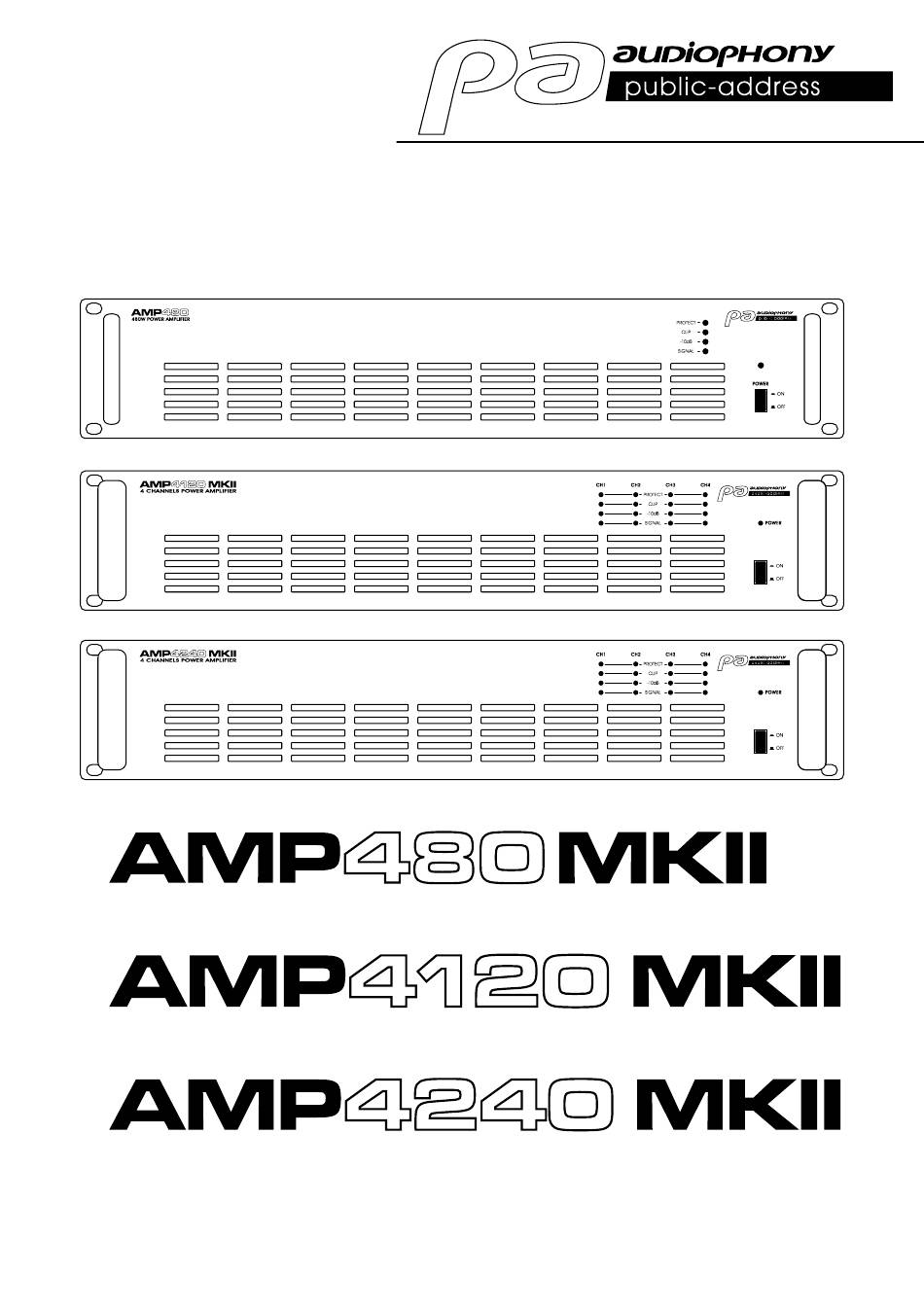

- Page 1 USER GUIDE H11223 / H11070 / H11071 - Version 2 / 02-2020...
-
Page 2: Safety Information
AMP480MKII/4120MKII/4240MKII - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs English 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or This product contains non-isolated electrical components. Do not extremely cold/hot locations. - Page 3 AMP480MKII/4120MKII/4240MKII - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs English Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation.

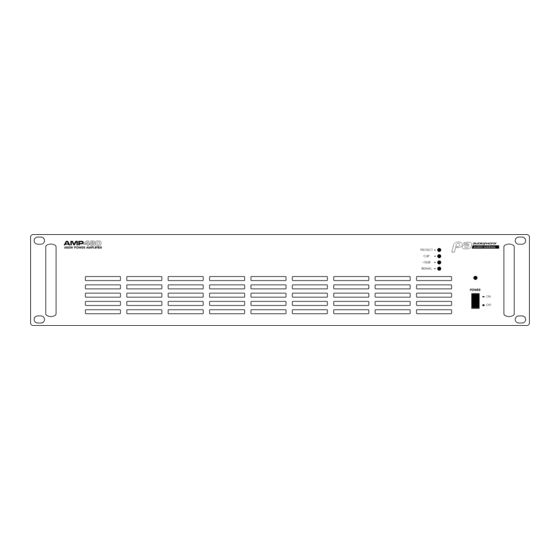

- Page 4 AMP480MKII/4120MKII/4240MKII - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs English 2 - Introduction Our new AMP amplifiers series dedicated to installations combine sound quality, easy installation and handiness. The AMP480, AMP4120 MKII and AMP4240 MKII operate at 100V, and have been designed to fit any installation.
- Page 5 AMP480MKII/4120MKII/4240MKII - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs English Output terminals LED indicators Connect here your speakers or ceiling speakers. These LEDs indicate the current status of your device: The terminals might be used differently depending on the - SIGNAL: Indicates that an incoming signal has been installation.
-
Page 6: Using Your Amplifier
AMP480MKII/4120MKII/4240MKII - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs English 4 - Using your amplifier CAUTION: Please make sure your amplifier is not plugged in and is OFF when checking cables. Standby mode The amplifier is equipped with a standby system. If no audio signal is sent, the amplifier goes into standby mode. - Page 7 AMP480MKII/4120MKII/4240MKII - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs English Wiring Please make sure to respect the polarities when connecting your speakers to your amplifier. Connect the speakers equipped with transformers to COM and 100V terminals. Transformer Transformer 100V speaker or ceiling speakers Dangerous voltage...
- Page 8 AMP480MKII/4120MKII/4240MKII - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs English 5 - Synoptic Note AMP480 is a mono-channel amplifier yet the synoptic is identical. Page 18...
-
Page 9: Technical Specifications
AMP480MKII/4120MKII/4240MKII - 1x480/4x120/4x240W PA amplifiers with 1 or 4 x 100V outputs English 7 - Technical specifications AMP480 AMP4120 AMP4240 ELECTRICAL SPECIFICATIONS Power 1 x 480 Watts 4 x 120 Watts 4 x 240 Watts (T.H.D 1,0%, 1KHz) Input sensitivity (INPUT andf LINK) 0 dB (Balanced input) Cross-over distortion... - Page 10 ® subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony-pa.com ® AUDIOPHONY is a trademark of HITMUSIC S.A.S - Zone Cahors sud - 46230 FONTANES - FRANCE...
