Owner’s Manual
Model ZPU 01/02
High-Pressure Centralized Lubrication Pump
Model ZPU 01/02
4088a96
LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZPU01-M100-10XYN-E and is the answer not in the manual?

Questions and answers

Related Manuals for Lincoln ZPU01-M100-10XYN-E

Summary of Contents for Lincoln ZPU01-M100-10XYN-E

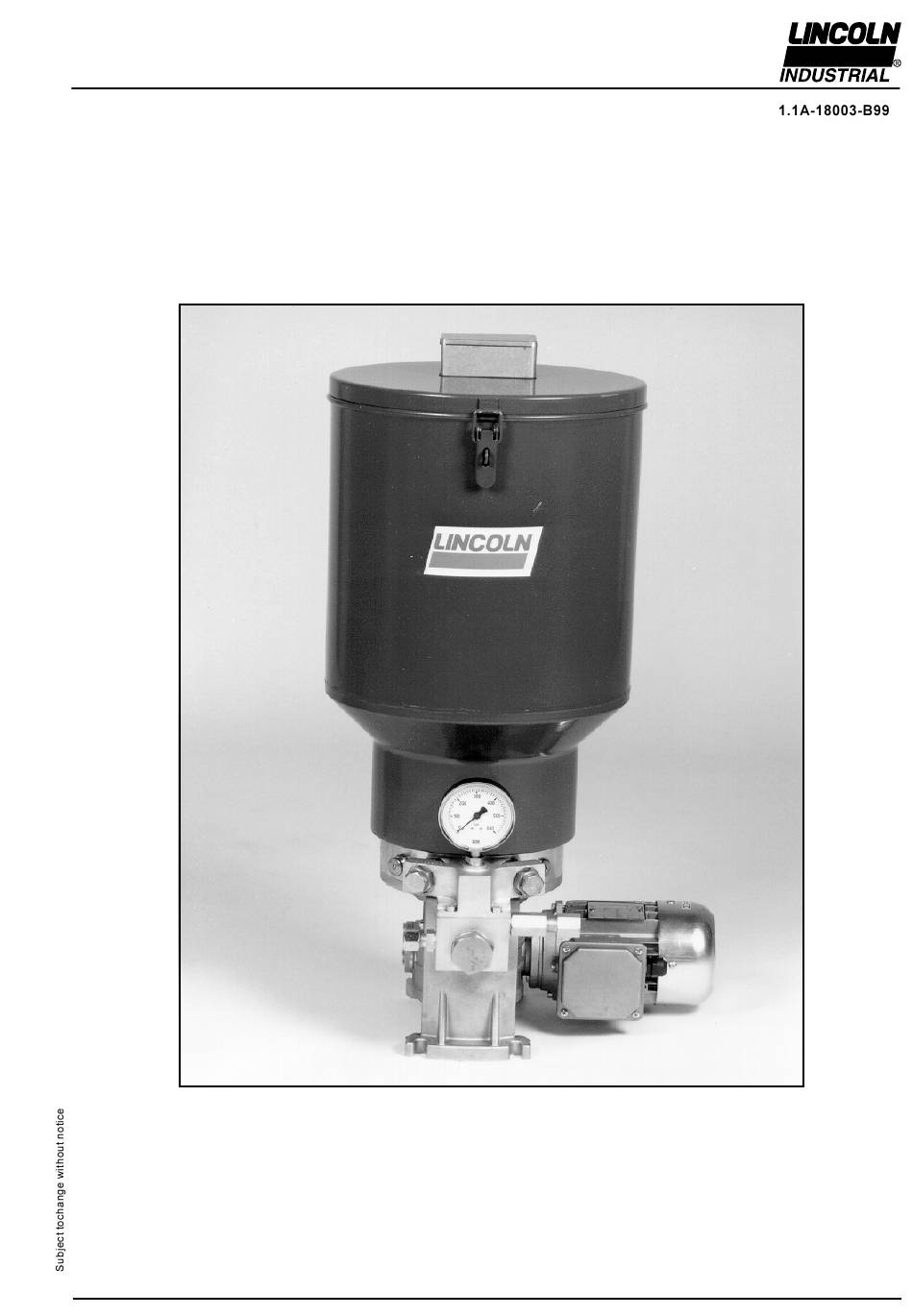

  • Page 1 Owner’s Manual Model ZPU 01/02 High-Pressure Centralized Lubrication Pump Model ZPU 01/02 4088a96 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 2 Owner’s Manual Model ZPU 01/02 Table of Contents Preface to the Owner`s Manual LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 3: Safety Instructions

    Owner’s Manual Model ZPU 01/02 Safety Instructions LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 4 Owner’s Manual Model ZPU 01/02 • • LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 5 Note: The ultrasonic sensor is equipped with 2 switching points. If only one low level control is desired, the corresponding contacts must be connected. A 24VDC supply voltage is required for the sensor. LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 6 Owner’s Manual Model ZPU 01/02 4122a97 Fig. 1- Sectional drawing of pump model ZPU 01/02 • • • LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 7 Fig. 2- Operation of the low-level control (grease reservoir “...XYBU“) 1 - Fixed paddle 3 - Scraper 2 - Stirring paddle 4 - Ultrasonic sensor LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 8: Technical Data

    Owner’s Manual Model ZPU 01/02 Technical Data Æ Note: In the case of 60 Hz motors lubricant output is increased by 20 % LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 9: Maintenance And Repair

    Maintenance and Repair • Electric connection of the level controls: • Owner’s Manual • • • • • LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 10 2 - Dummy cylinder 5 - Single -pump element with 3 - Pump cylinder with closure plug piston 6 - Bracket puanordn LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 11 Fig. 5 - Inserting the pump element • • Fig. 6 - Pump element installed correctly Fig. 7 - Incorrect assembly, lubricant output impossible LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 12: Troubleshooting

    Owner’s Manual Model ZPU 01/02 Troubleshooting Note: LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 13 Owner’s Manual Model ZPU 01/02 Component Parts of Pump Model ZPU 01/02 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 14 Owner’s Manual Model ZPU 01/02 Component Parts of the Pump without Pump Elements 4052c96 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 15 Owner’s Manual Model ZPU 01/02 Æ Æ LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 16                      4093a96 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 17 Model ZPU 01/02 Pump elements E1 und E2 Pump elements V1 und V2 Pump elements F1 und F2 Mounting parts for housing LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...

  • Page 18: Data Sheets

    Owner’s Manual Model ZPU 01/02 Data Sheets Standard-Motors for Pump Model ZPU 01/02/Three-Phase a.c.-Asynchronus Motors (multi-range) LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 19 Owner’s Manual Model ZPU 01/02 Standard-Motors for Pump Model ZPU 01/02/Three-Phase a.c.-Asynchronus Motors LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 20 Owner’s Manual Model ZPU 01/02 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 21 Owner’s Manual Model ZPU 01/02  Full Empty green green green LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 22 Owner’s Manual Model ZPU 01/02 Dimensions 4089b96 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 23 Owner’s Manual Model ZPU 01/02 4090b96 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 24 Owner’s Manual Model ZPU 01/02 4091b96 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
  • Page 25 Owner’s Manual Model ZPU 01/02 Walldorf, 21.10.1996 , ppa. Z.Paluncic LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
