Summary of Contents for Lincoln PILE DRIVER 84900

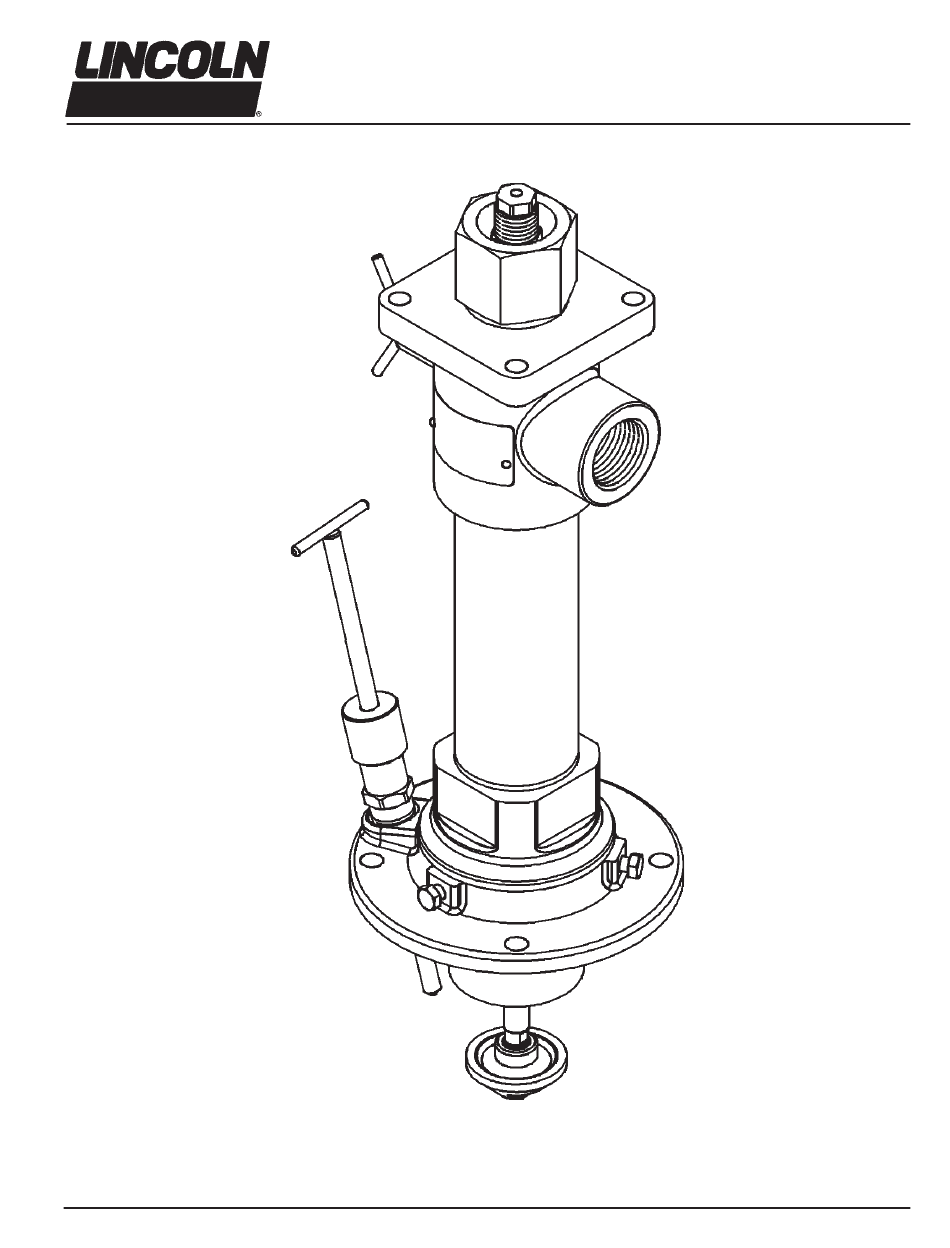

- Page 1 PILE DRIVER III PUMP ASSEMBLY ® MODELS 84900, 84901 and 84902 Series “B” - 70K - A50 Section JAN - 2007 Page Form 422891...
- Page 2 PILE DRIVER III PUMP ASSEMBLY ® MODELS 84900, 84901 and 84902 TABLE OF CONTENTS GLAND PACKING DESIGN* Many industrial type materials (sealants, adhesives, inks, etc.) display a tendency to dry out and to build up on the pump Safety..................2 plunger rod. These hard dried out materials cause the gland Product Specification..............2 packing to wear rapidly, resulting in leakage and ultimate pump Model Chart................2...
- Page 3 PILE DRIVER III PUMP ASSEMBLY ® MODELS 84900, 84901 and 84902 Airmotor Dimension "A" Dimension "B" Pump Tube Airmotor w/ AirBrake [mm.] [mm.] 86810 94810 84808 94808 39-7/8 [1083] 84806 94806 84900 1.625 [41.3] 84804 94804 40-3/4 [1105] 84803 86810 94810 84808 94808...
- Page 4 DO NOT allow pump to operate when out of material. inlet is clear of obstructions. PUMP PRIMING • Use Lincoln replacement parts to assure compatible pres- sure rating. To start operating, the pump has to be primed with pumped •...
- Page 5 PILE DRIVER III PUMP ASSEMBLY ® MODELS 84900, 84901 and 84902 NOTE: Pumps are factory tested with light oil and some of 6. Remove priming rod, piston and plunger assembly from it is left in to protect pump parts during storage and bottom of Pump Tube (Item 14).
- Page 6 PILE DRIVER III PUMP ASSEMBLY ® MODELS 84900, 84901 and 84902 Note: Install wipers (Item 5) and u-cups (Items 8 & 17) in direction shown in enlarged views. Page Number - 6 Form 422891...
- Page 7 PILE DRIVER III PUMP ASSEMBLY ® MODELS 84900, 84901 and 84902 PARTS LIST Item No. Description Qty. Model 84900 Model 84901 Model 84902 Bolt Connector (7/8" hex) 236225 236225 236225 Coupling Nut (1-1/4" hex) 237051 237051 237051 Gland Nut (2-5/8" hex) 237659 237659 237659...
- Page 8 Inlet check (Items 29 and 30) is not Check and replace if needed. material. seating or is damaged. Americas: Europe/Africa: Asia/Pacific: © Copyright 2007 One Lincoln Way Heinrich-Hertz-Str 2-8 25 Int’l Business Park Printed in USA St. Louis, MO 63120-1578 D-69183 Walldorf #01-65 German Centre Germany...
