IP MULTIFUNCTIONAL MASTER STATION
Thank you for purchasing TOA's IP Multifunctional Master Station.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read
all the instructions in this section for correct and
safe operation.
• Be sure to follow all the precautionary instructions
in this section, which contain important warnings
and/or cautions regarding safety.
• After reading, keep this manual handy for future
reference.
INSTALLATION MANUAL
CAUTION
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
When the Unit is in Use
• Use the dedicated AC adapter or its equivalent for
the unit. Note that the use of other adapter may
cause a fire.
N-8500MS

Advertisement

loading
Need help?

Need help?

Do you have a question about the N-8500MS and is the answer not in the manual?

Questions and answers

Related Manuals for Toa N-8500MS

Summary of Contents for Toa N-8500MS

  • Page 1 IP MULTIFUNCTIONAL MASTER STATION Thank you for purchasing TOA's IP Multifunctional Master Station. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. 1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.

  • Page 2: General Description

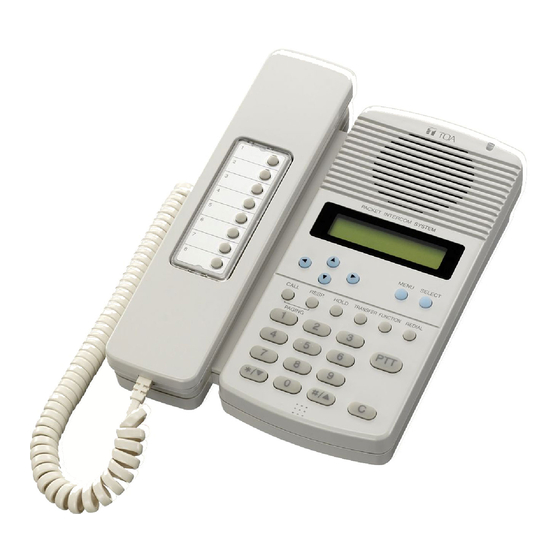

    2. GENERAL DESCRIPTION The N-8500MS is an IP multifunctional master station designed for use with TOA's packet intercom system (IP network- compatible intercom system) that employs the packet audio technology* Connecting the IP multifunctional master station to a network permits the ideal system for in-house or wide-area information transmission applications, such as paging, periodical broadcasts, and background music broadcasts, to be built in combination with the N-8000MI Multi interface unit and N-8000EX/8010EX IP Intercom Exchange.
