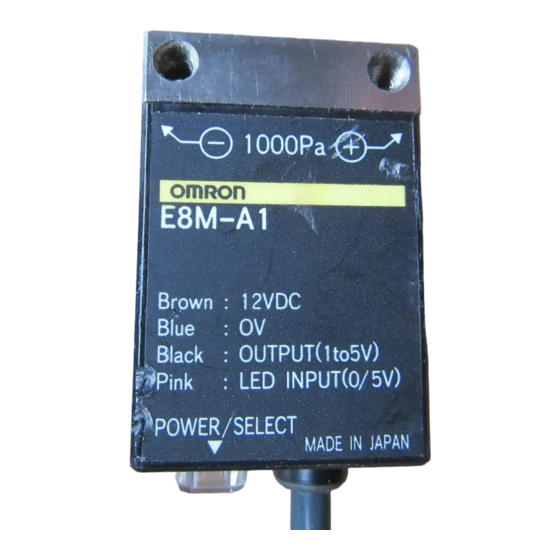

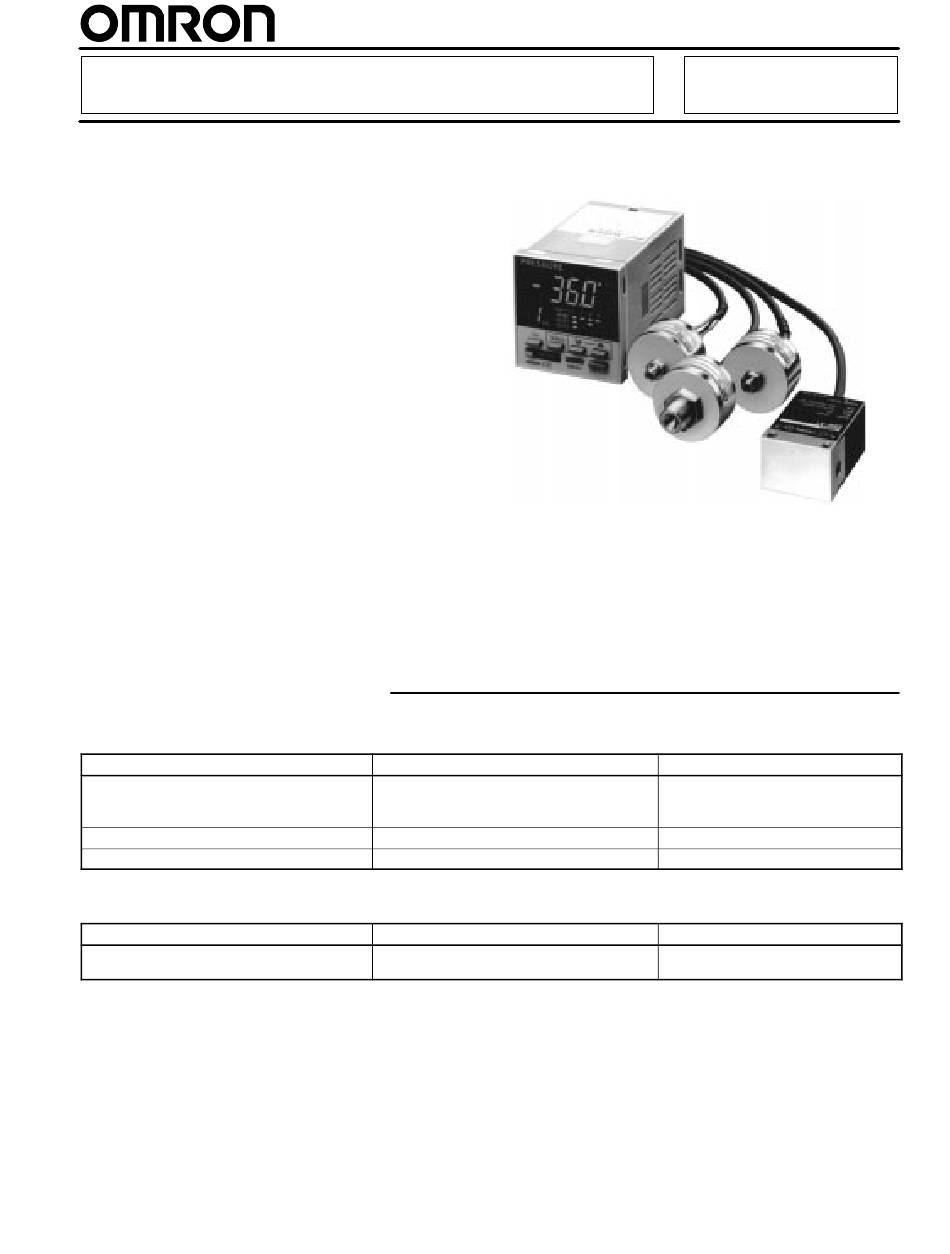

Pressure Sensor
Four-channel Pressure Sensor
Offers Versatile Functions and High
Precision without Errors
H
The industry's smallest pressure sensor,
compact, lightweight – ideal for robot
arms or other moving components
H
A highly sensitive minute-pressure
sensor model detects very small
differences in air pressure
H
Requires no wiring conduit – can be
located for sensing in small places
H
Simple display panel efficiently saves
space, but offers large LEDs
H
Easy sensitivity adjustment using the
teach function and channel-to-channel
copy function
Ordering Information
J SENSOR
Type
Minute differential pressure sensor
Positive pressure sensor
Negative pressure sensor
J CONTROLLER
Item
Controller
R
Pressure range description
Differential pressure from 0 to 0.145 psi
(0 to 1,000 Pa) between positive and
negative ports
0 to 145 psi (0 to 1 MPa)
0 to –14.6 psi (0 to –101 kPa)
Description
Optional for pressure sensors:
E8M-A1, E8M–10 and E8M-NO
E8M
Part number
E8M-A1
E8M-10
E8M-N0
Part number
K3C-MP8-T1Z

Advertisement

loading
Need help?

Need help?

Do you have a question about the E8M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron E8M

Summary of Contents for Omron E8M

  • Page 1 Positive pressure sensor 0 to 145 psi (0 to 1 MPa) E8M-10 Negative pressure sensor 0 to –14.6 psi (0 to –101 kPa) E8M-N0 J CONTROLLER Item Description Part number Controller Optional for pressure sensors: K3C-MP8-T1Z E8M-A1, E8M–10 and E8M-NO...

  • Page 2: Specifications

    Part number Sensor connector cable 4-pin connector with 3-m cable E89-M3 required for E8M-10 and E8M-NO (Note: E8M-A1 does not require this cable.) Replacement cable Connector for the E89-M3 XS8A-0442 Sensor Connector Cable. (Note: This connector is provided with the E89-M3 cable.
  • Page 3 Controller Item K3C-MP8-T1Z Connectable pressure sensor E8M-A1 E8M-10 E8M-N0 (differential pressure from 0 to 145 psi 0 to -14.6 psi 0 to 1,000 Pa between positive and (0 to 1 MPa) (0 to –101 kPa) negative ports) E8CB-01C 0 to 14.2 psi...
  • Page 4 J CHARACTERISTICS Sensor Item E8M-A1 E8M-10 E8M-N0 Voltage influence 3% FS max. Temperature influence 0.25% FS/ C max. 0.12% FS/ C max. Insulation resistance 100 MΩ min. at 500 VDC between current-carrying parts and case Dielectric strength 1,000 VAC, 1 min Vibration resistance 10 to 150 Hz, 0.75-mm single amplitude or 100 m/s...

  • Page 5: Engineering Data

    Engineering Data J LINEAR OUTPUT VOLTAGE VS. PRESSURE (TYPICAL) E8M-A1 E8M-10 E8M-N0 Differential pressure (Pa) between Pressure (kPa) Pressure (kPa) positive and negative ports J OUTPUT LINEARITY (TYPICAL) E8M-A1 E8M-10 E8M-N0 Differential pressure (Pa) between Pressure (kPa) Pressure (kPa) positive and negative ports...
  • Page 6 J LINEAR OUTPUT FLUCTUATION VS. POWER (TYPICAL) E8M-A1 E8M-10 E8M-N0 Pressure 0 Pressure 0 Pressure 0 Rated pressure Rated pressure Rated pressure Voltage (V) Voltage (V) Voltage (V) J LINEAR OUTPUT FLUCTUATION VS. TEMPERATURE (TYPICAL) E8M-A1 E8M-N0 E8M-10 Rated pressure...
  • Page 7 Nomenclature J PRESSURE SENSOR CONTROLLER K3C Controller Display Panel Operation Keys 1. Numeric and Menu Display (Main Display) 9. CH Indicates measured values and menu settings. Used to select the channel of a Sensor to be in operation or where menu items are set. A channel is selected in sequence 2.

  • Page 8: Operation

    Operation J OUTPUT CIRCUITS Sensor E8M-A1 E8M-10, E8M-N0 Connector Brown Brown Power Power indicator indicator (green) (green) Pink Pink Pressure 0/5 V Pressure 0/5 V Sensor Input Sensor Input main main Black (linear output) Black (linear output) circuit circuit Load...
  • Page 9 J DISPLAYS OF SETTINGS AND MEASUREMENTS Digital Display The E8M displays alphanumeric characters, such as The following abbreviations are used for the digital display of the measurement values and menu items, with 7-segment LEDs as Controller. shown below: Abbreviation Meaning...
  • Page 10 Measurement Mode The K3C is in this mode when power is turned on. Normally, you will use the Controller in this mode. Basic Setting Mode ON-point or OFF-point value settings and change Measurement unit selection Output type selection: Normally open or normally closed Sensor type selection Teaching Mode...
  • Page 11 These Sensor Types Are Available below. Model Display 1. Turning On the Power E8M-A1 –1 Make sure that the Sensors and the power supply to be used are properly connected to the Controller. Then turn on the E8M-N0 –101 K3C.
  • Page 12 Pressure range Display unit kpa (kPa) kgf (kgf/cm hg (mmHg) h2o (mmH Uol (vol) (See Note.) E8M-N0 0 to –101 kPa E8M-10 0 to 1 MPa E8M-A1 0 to –1,000 Pa E8CB-01C 0 to 98 kPa Note: Select Uol for voltage display.
  • Page 13 Basic Set Mode The K3C is in measurement mode right after it is turned on. Press the MENU Key once to change the mode to the basic setting mode. “SET” will appear in the main display. If the mode does not change, the key-protect function may be enabled.
  • Page 14 Example 1: Channel 1 OUT 1 OUT 2 Pressure Pressure For a Sensor with a Pressure Range of Up to 1 MPa Follow these steps to achieve the above settings: Channel 1 ON-point of OUT1 OFF-point of OUT1 Press the Up or Down Key Press the Up or Down Key to change the set value.
  • Page 15 J OUTPUT TYPE SELECTION (NORMALLY OPEN OR NORMALLY CLOSED) To Select the K3C Output Type (Normally Open or Normally Closed Output) Follow these steps: Hysteresis Mode Window Mode OFF-point ON-point OFF-point – Hysteresis ON-point OFF-point ON-point – Hysteresis NO output NO output NC output NC output...
  • Page 16 J SET VALUE CHECK Check the ON-Point and OFF-Point Currently Set Follow these steps: 1. Press the DISPLAY Key, and the ON-point currently set will appear. Press the DISPLAY Key again to see the OFF-point that is cur- rently set. 2.
  • Page 17 J ON-POINT AND OFF-POINT SIMPLE SETTING (BY TEACHING) Set ON-point and OFF-point values by using measurement values instead of key input in the teaching mode. One-point teaching (which has only one setting point) and two-point teaching (which has two setting points) are both available in the teaching mode.
  • Page 18 Two-point Teaching (Hysteresis Mode Teaching) 1. By pressing the TEACH Key at the point of status 1 as shown below, the current measurement value of the selected channel will appear. 2. Check the measurement value and press the TEACH Key for teaching. Teaching will be completed on the first point. 3.
  • Page 19 One-point Teaching (Window Mode Teaching) 1. By pressing the TEACH Key at the point of status 3 as shown below, the current measurement value will appear and ON-point and OFF-point indicators will start flashing. One-point Teaching Status 3 Pressure ON-point OFF-point ON-point = Teach 1 –...
  • Page 20 ON-point and OFF-point Set Values Refer to Set Value Check (within this data sheet) to check ON-point and OFF-point set values. Teaching Errors Teaching will not be performed by pressing the TEACH Key if the present value or the result of teaching is not within the proper setting range.
  • Page 21 Menu Selection 1. When PRT is displayed, press the MENU Key. “COP” will appear. 2. Select the menu to be set. The display will change to “PRT,” “COP,” “AUT,” “HYS,” “WID,” “DSP,” and “AVE” in sequence by repeat- edly pressing the MENU Key. (Refer to the Modes subsection, found earlier.) 3.
  • Page 22 Set Value Channel-to-channel Copy Data set in a channel can be copied and used for other channels. 1. Press the DISPLAY Key, and the source channel that has data to be copied will appear on the main display with the destination chan- nel.
  • Page 23 Hysteresis Width Change Hysteresis width change is possible as shown below. Hysteresis Mode Window Mode Changing hysteresis Changing hysteresis width width Pressure Pressure OFF-point ON-point ON-point OFF-point 1. Press the DISPLAY Key to see the hysteresis width set value. 2. Select the channel where hysteresis width change is required with the CH Key. 3.
  • Page 24 Measurement Value Display Refresh Interval Change One of the following refresh intervals can be selected. 0.1: Measurement values are averaged and refreshed every 0.1 s. 0.5: Measurement values are averaged and refreshed every 0.5 s. 1.0: Measurement values are averaged and refreshed every 1 s. 1.
  • Page 25 Dimensions Unit: mm (inch) J SENSOR E8M-A1 M5, 7-mm-deep pressure joint (Negative) 0.1 0.004 (0.79 Power indicator (1.02) Two, M4 39 (1.54) mounting hole 4-mm-dia., 4-conductor (0.75) 42.9 (1.69) (40 strands x 0.08 dia.), M5, 7-mm-deep pressure joint (Positive) vinyl-insulated cord, length: 3 m (0.33)
  • Page 26 3000 –0 118.11 +1.97 –0 XS8A-0442 Cable Connector One connector is included with the E8M-A1 Sensor. (0.28) (0.79) 16.1 (0.63) One XS8A-0442 Cable Connector is provided with the E89-M3 Sensor I/O Connector Cable. Refer to the Ordering Information section for replacement orders.
  • Page 27 J CONTROLLER K3C-MP8T1Z 84 (3.31) 63.7 (1.89) 44.8 (1.76) K32-MP2W (Power and Output Connector for K3C Controller) (Sold Separately)  50 2,000 +1.97 78.74 –0 5 dia.  0.12 0.78 Adapter (Provided with Controller) Y92A-48 Hard Cover (Sold Separately) Note: Protection from Water and Oil Y92A-48F1 Soft Cover (Sold Separately) The Controller has a water-resistant construction which protects the internal circuitry from water that may enter...

  • Page 28: Installation

    Installation J ASSEMBLY Procedure for the E89-M3 Sensor I/O Connector Cable (Sold Separately) and XS8A-0442 Cable Connector (Provided with Sensor) 1. Processing the Cable End Be sure that the cover is fully inserted into the plug connector. The cable end is semi-stripped. 3.
  • Page 29 Be sure to use the Sensor under the rated pressure. the E8M in conjunction with any of the following special types of Do not insert any wire into the pressure sections. Doing so applications.
