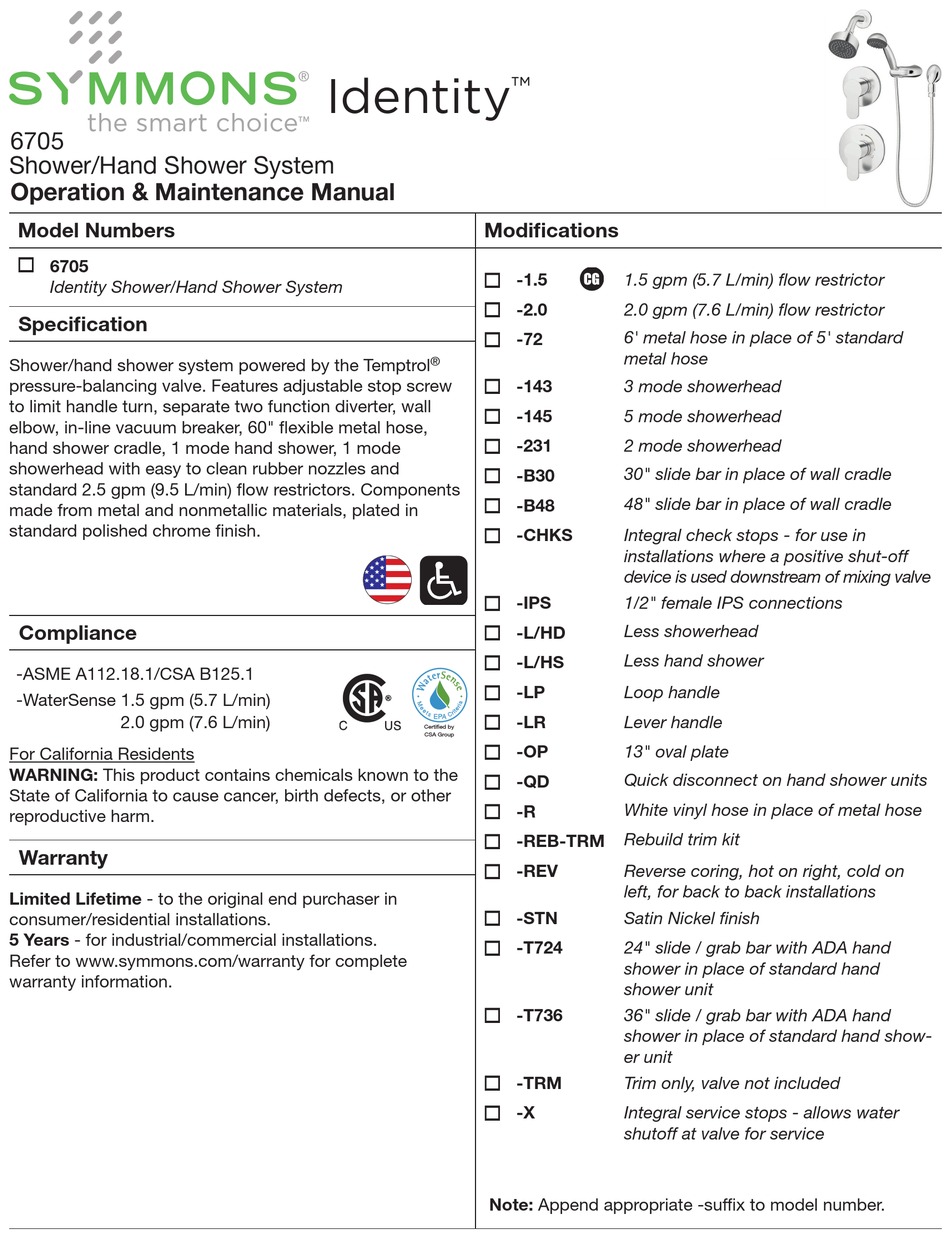

Symmons Identity 6705 Operation & Maintenance Manual

6705
Shower/Hand Shower System
Operation & Maintenance Manual
Model Numbers

6705
Identity Shower/Hand Shower System
Specification

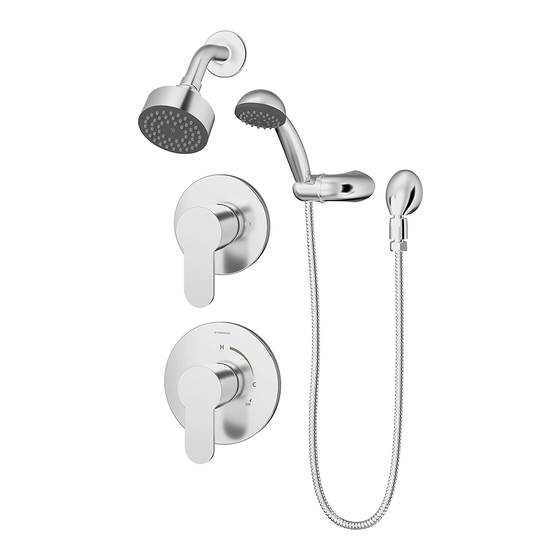

Shower/hand shower system powered by the Temptrol
pressure-balancing valve. Features adjustable stop screw
to limit handle turn, separate two function diverter, wall
elbow, in-line vacuum breaker, 60" exible metal hose,
hand shower cradle, 1 mode hand shower, 1 mode
showerhead with easy to clean rubber nozzles and
standard 2.5 gpm (9.5 L/min) ow restrictors. Components
made from metal and nonmetallic materials, plated in
standard polished chrome nish.
Compliance
-ASME A112.18.1/CSA B125.1
-WaterSense 1.5 gpm (5.7 L/min)
2.0 gpm (7.6 L/min)
For California Residents
WARNING: This product contains chemicals known to the
State of California to cause cancer, birth defects, or other
reproductive harm.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Identity
Modifications



®











Certi ed by
CSA Group










Note: Append appropriate -suf x to model number.
™
CG
-1.5
1.5 gpm (5.7 L/min) flow restrictor
-2.0 2.0 gpm (7.6 L/min) flow restrictor
6' metal hose in place of 5' standard
-72
metal hose
-143 3 mode showerhead
-145
5 mode showerhead
-231 2 mode showerhead
30" slide bar in place of wall cradle
-B30
48" slide bar in place of wall cradle
-B48
-CHKS
Integral check stops - for use in
installations where a positive shut-off
device is used downstream of mixing valve
-IPS 1/2" female IPS connections
Less showerhead
-L/HD
Less hand shower
-L/HS
-LP Loop handle
-LR Lever handle
-OP 13" oval plate
Quick disconnect on hand shower units
-QD
White vinyl hose in place of metal hose
-R
Rebuild trim kit
-REB-TRM
-REV Reverse coring, hot on right, cold on
left, for back to back installations
-STN
Satin Nickel finish
-T724
24" slide / grab bar with ADA hand
shower in place of standard hand
shower unit
-T736 36" slide / grab bar with ADA hand
shower in place of standard hand show-
er unit
-TRM
Trim only, valve not included
-X Integral service stops - allows water
shutoff at valve for service
