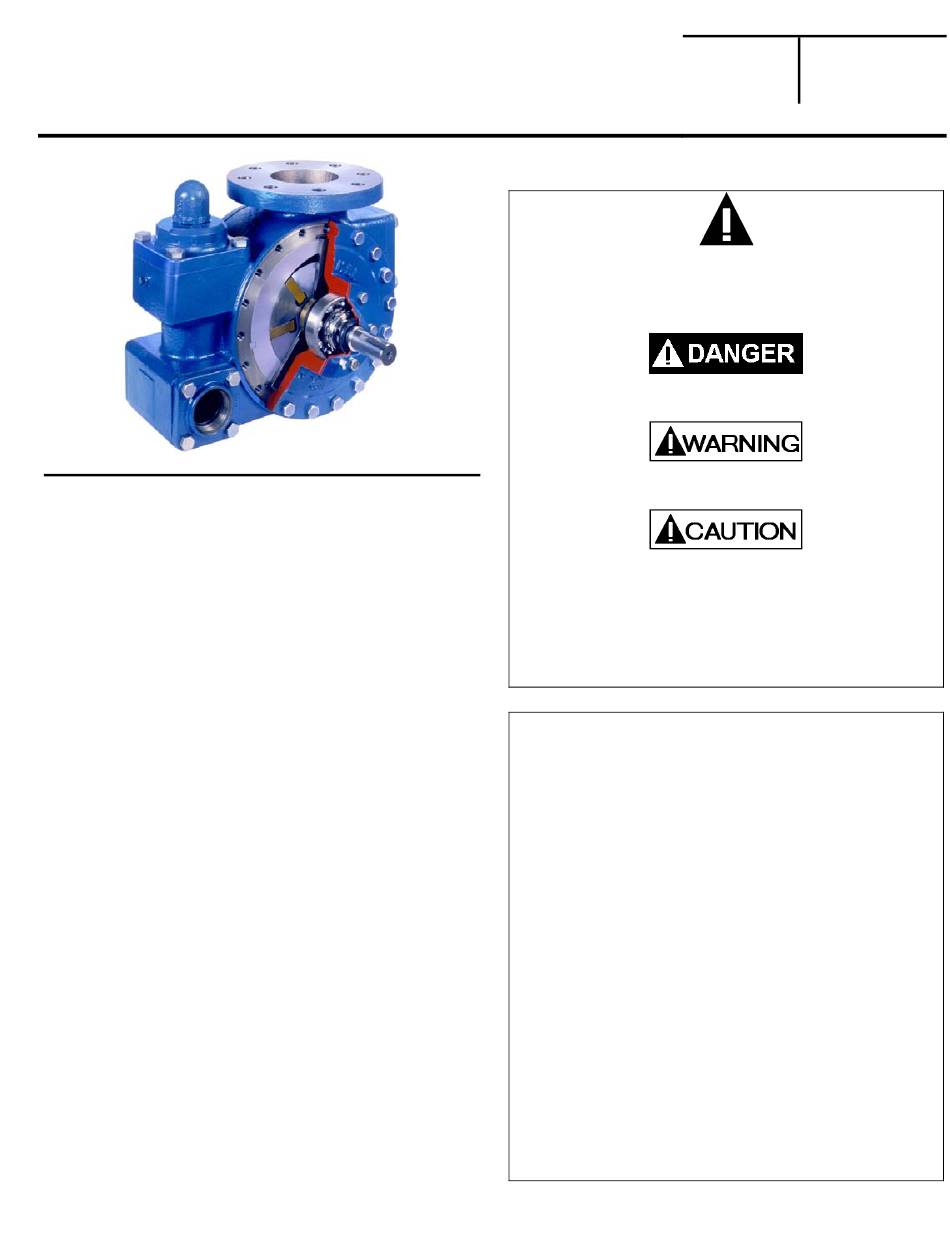

BLACKMER LIQUEFIED GAS PUMPS
FOR LP-GAS AND NH
INSTALLATION OPERATION AND MAINTENANCE INSTRUCTIONS
MODELS: TLGLF4B, LGLD4B, LGL4B
Patent Protected by U.S. Patent 6030191 and Related Foreign Patents.
TABLE OF CONTENTS
SAFETY DATA ..................................................................... 1
PUMP DATA ......................................................................... 2
Pump Identification ..................................................... 2
Technical Data ........................................................... 2
Initial Pump Start Up Information ............................... 2
Welded Connections .................................................. 3
Pre-Installation Cleaning ............................................ 3
Location and Piping .................................................... 3
Pump Relief Valve and Bypass Valve ........................ 4
Relief Valve Setting and Adjustment .......................... 4
Check Valves ............................................................. 4
Pump Rotation ........................................................... 4
Pump Mounting .......................................................... 5
Coupling Alignment .................................................... 5
V-Belt Drive ................................................................ 5
V-Belt Disassembly .................................................... 6
Pre-Start Up Check List ............................................. 6
Start Up Procedures ................................................... 6
Truck Mounting .......................................................... 7
Auxiliary Inlet .............................................................. 7
Pump Drive ................................................................ 7
Hydraulic Drive ........................................................... 8
Pre-Start Up Check List ............................................. 8
Start Up Procedures ................................................... 8
Pump Speed .............................................................. 8
Strainers ..................................................................... 9
Lubrication .................................................................. 9
Vane Replacement ................................................... 10
Pump Disassembly .................................................. 10
Pump Assembly ....................................................... 11
TROUBLE SHOOTING ...................................................... 13
NOTE: Numbers in parentheses following individual parts
indicate reference numbers on Blackmer Parts Lists
Blackmer pump manuals and parts lists may be obtained from
Blackmer's website (www.blackmer.com) or by contacting
Blackmer Customer Service.
SERVICE TRUCK AND BASE MOUNTED
3
Page
962006
INSTRUCTIONS NO. 501-E00
SAFETY DATA
This is a SAFETY ALERT SYMBOL.
When you see this symbol on the product, or in the manual,
look for one of the following signal words and be alert to the
potential for personal injury, death or major property damage
Warns of hazards that WILL cause serious personal injury,
death or major property damage.
Warns of hazards that CAN cause serious personal injury,
death or major property damage.
Warns of hazards that CAN cause personal injury
or property damage.
NOTICE:
Indicates special instructions which are very
important and must be followed.
NOTICE:
Blackmer liquefied gas pumps MUST only be installed
in systems which have been designed by qualified
engineering personnel. The system MUST conform to
all applicable local and national regulations and safety
standards.
This manual is intended to assist in the installation
and operation of the Blackmer liquefied gas pumps,
and MUST be kept with the pump.
Blackmer liquefied gas pump service shall be
performed by qualified technicians ONLY. Service
shall conform to all applicable local and national
regulations and safety standards.
Thoroughly review this manual, all Instructions and
hazard warnings, BEFORE performing any work on
the Blackmer liquefied gas pumps.
Maintain ALL system and Blackmer liquefied gas
pump operation and hazard warning decals.
Section
501
Effective
Jan 2014
Replaces
July 2013
