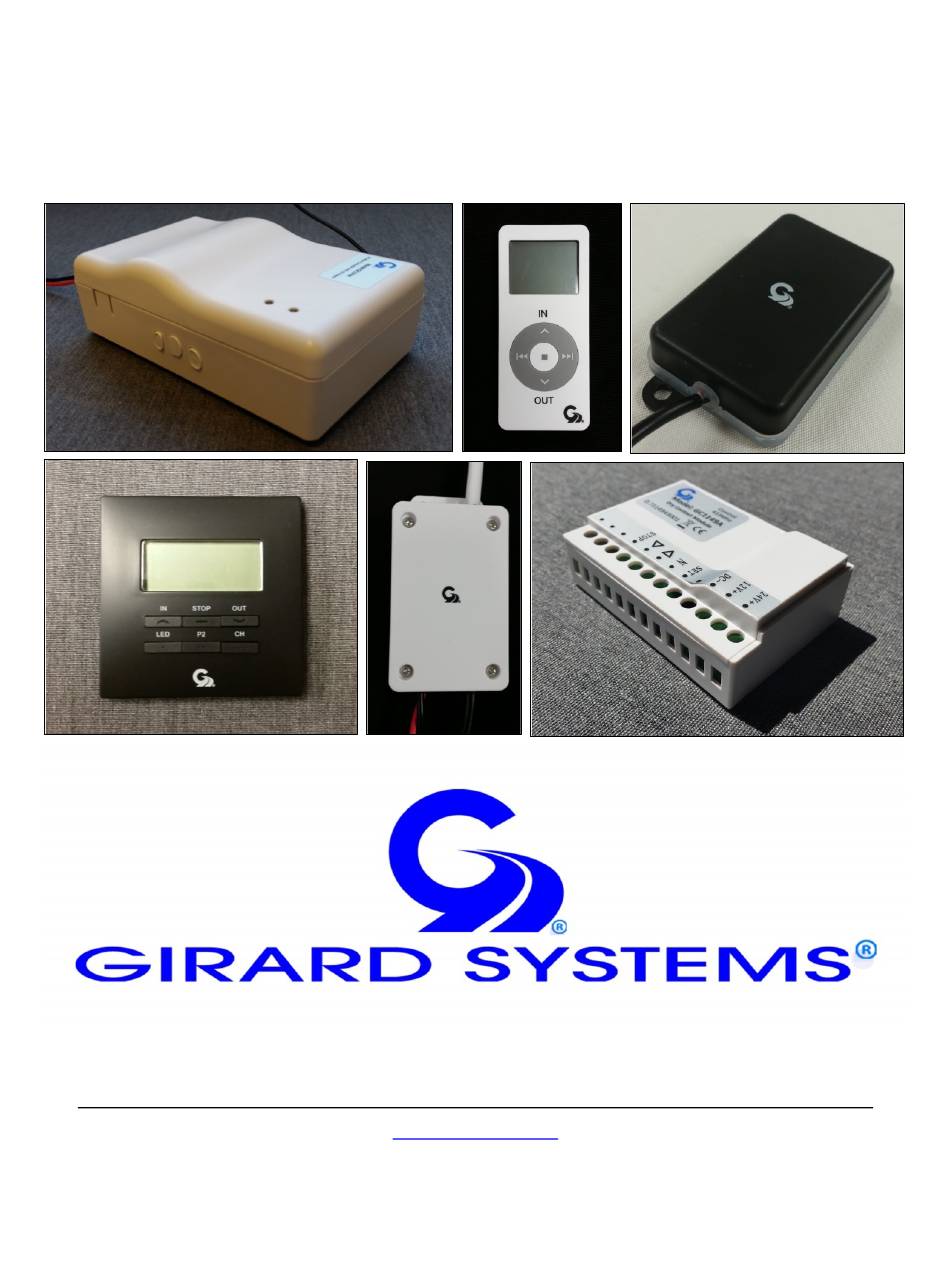

AWNING CONTROL KIT
98GCK-32B
REV.07282015
RV AWNING PRODUCTS
1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (800) 382-8442 FAX (949)276-5500
r
www.gi
ardrv.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 98GCK-32B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Girard Systems 98GCK-32B

Summary of Contents for Girard Systems 98GCK-32B

  • Page 1 AWNING CONTROL KIT 98GCK-32B REV.07282015 RV AWNING PRODUCTS 1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (800) 382-8442 FAX (949)276-5500 www.gi ardrv.com...
  • Page 3 AC MOTOR CONTROL MODULE GC274A INSTALLATION and PAIRING INSTRUCTIONS REV.07242015 RV AWNING PRODUCTS 1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (800) 382-8442 FAX (949)276-5500 www.girardrv.com...
  • Page 4 Shore Power – if connected; Generator Power – if the generator is running; Inverter Power – batteries must be charged for inverter operation. Girard Systems awnings are supplied with an electric motor appropriate to the product. Page 2 of 10...
  • Page 5 These components must be electronically matched, programmed or paired before use. This is usually done at the Girard Systems factory. Should the need arise for the user to pair a device with the motor controller they must refer to the appropriate manual for the devices applicable to their particular installation.
  • Page 6 PRODUCT DESCRIPTION AC Motor Controller with Optional LED (12V DC) control. Lid Release STOP Fig.1 This module is designed to control a single Standard 110v AC Motors UP to 8 Amps, it can also provide 12v DC power for an optional LED strip and can be remotely operated with any paired G-Link handset or wall switch.
  • Page 7 Specifications Power: 110VAC / 60Hz AC Input: White = Neutral / Black = Live / Green = Earth To the Motor: White = Neutral / Red = Direction 1 / Black = Direction 2 / Green = Earth Ambient T: 0 - 130°F Installation A circuit breaker protected 15A/115v AC power outlet is required form the Vehicles power...
  • Page 8 SETUP AND PROGRAMMING 1. Selection of “Continuous” or “Step” mode. a. Supply power to the GC274A. b. Simultaneously press the STOP and RIGHT button of the GC274A for at least 6 seconds: The Green LED will first illuminate and then blink a few times. When the Green LED extinguishes, the operation has been completed To switch modes (continuous to step or step to continuous) repeat step 1 above.
  • Page 9 3. Programming the GC274A to a Remote handset or Wall switch a. Supply power to the GC274A b. Press the program button on the GC274 (Fig 2) the Green LED will start blinking. c. Press STOP (Fig. 1): The Green LED will stop blinking and remain illuminated. d.
  • Page 10 7. Programming the GC274A to a Motion Sensor (98GC779G) This procedure will require opening up the motion sensor module by following the directions below; a. Remove the 2 small cross head screws which secure the motion sensor to the mounting bracket.
  • Page 11 c. Remove the 4 cross head screws holding the module together. Remove the back plate and silicone insert. See Fig.3. Magnet Base plate Silicone Insert Fig.3 d. Turn the base plate over (Magnet down). Then place the motion sensor on top of it so that the magnet is aligned with the reed switch.
  • Page 12 Once programming is complete, reassemble the motion sensor module and mount on the awning lead rail. For queries or assistance with programming any of your G-Link devices please call Girard Systems TOLL FREE on 800–382–8442 between 7:30am and 3:30pm P.S.T. Page 10 of 10...
  • Page 13 IGNITION RETRACT & LOCK MODULE 98GC1102 INSTALLATION & PROGRAMMING GUIDE REV.07242015 RV AWNING PRODUCTS 1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (800) 382-8442 FAX (949)276-5500 www.girardrv.com...
  • Page 14 Shore Power – if connected; Generator Power – if the generator is running; Inverter Power – batteries must be charged for inverter operation. Girard Systems awnings are supplied with an electric motor appropriate to the product. Page 2 of 7...
  • Page 15 These components must be electronically matched, programmed or paired before use. This is usually done at the Girard Systems factory. Should the need arise for the user to pair a device with the motor controller they must refer to the appropriate manual for the devices applicable to their particular installation.
  • Page 16 PRODUCT DESCRIPTION The 98GC1102 Ignition Retract and Lockout Module is designed to send a retract signal to any electronically paired G-Link motor control modules installed on the Recreational Vehicle, whenever the engine is turned on or the parking brake released (dependent upon the installation).
  • Page 17 Page 5 of 7...
  • Page 18 PROGRAMMING PROCEDURE Ensure that the vehicle ignition circuit is switched OFF or the parking brake is engaged (whichever is applicable to the installation), and the awning is extended before connecting the 98GC1102 to the 12 volt DC circuit. a) Connect the 98GC1102 to a suitable 110v AC power supply. b) Connect the 98GC1102 to the G-Link Motor controller using the white connector (see figure 1).
  • Page 19 NOTE: Make sure the delay is different from every other Ignition Lockout in the coach. For queries or assistance with programming any of your G-Link devices please call Girard Systems TOLL FREE on 800–382–8442 between 7:30am and 3:30pm P.S.T. Page 7 of 7...
  • Page 20 DRY CONTACT MODULE GC1149A INSTALLATION GUIDE REV.07242015 RV AWNING PRODUCTS 1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (800) 382-8442 FAX (949)276-5500 www.girardrv.com...
  • Page 21 Shore Power – if connected; Generator Power – if the generator is running; Inverter Power – batteries must be charged for inverter operation. Girard Systems awnings are supplied with an electric motor appropriate to the product. Page 2 of 7...
  • Page 22 These components must be electronically matched, programmed or paired before use. This is usually done at the Girard Systems factory. Should the need arise for the user to pair a device with the motor controller they must refer to the appropriate manual for the devices applicable to their particular installation.
  • Page 23 PRODUCT DESCRIPTION The GC1149A Dry Contact Module allows the user to interface their Dry Contact Systems (Crestron, Switch Input or RV-C) with our G-link Controllers. This module will accept Retract, Stop and Extend commands from the Dry Contact System and send an RF signal to any programmed G-link Controller or Remote Motor.
  • Page 24 MODES OF OPERATION The GC1149A has 3 modes of operation; 1. Continuous Mode (Default) – A single press of a command button will allow the awning to fully extend or retract unless interrupted by the STOP button. 2. Step Mode (Selected) – The command button must be held down to allow the awning to fully extend or retract.
  • Page 25 PROGRAMMING STEPS NOTE: • Before starting this procedure the Receiver must be without power (OFF) for at least 10 seconds. • During the programming function the interval between each step required must be less than 10 seconds 1. PROGRAMMING THE GC1149A TO A RECEIVER(GC136, GC154 or GC274A) a.
  • Page 26 Note: If the motor turns in the opposite direction, repeat “a to e’ but now use Extend instead of Retract For queries or assistance with programming any of your G-Link devices please call Girard Systems TOLL FREE on 800–382–8442 between 7:30am and 3:30pm P.S.T. Page 7 of 7...
  • Page 27 12V MOTION SENSOR 98GC779G INSTALLATION & PROGRAMMING GUIDE REV.07242015 RV AWNING PRODUCTS 1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (800) 382-8442 FAX (949)276-5500 www.girardrv.com...
  • Page 28 Shore Power – if connected; Generator Power – if the generator is running; Inverter Power – batteries must be charged for inverter operation. Girard Systems awnings are supplied with an electric motor appropriate to the product. Page 2 of 22...

  • Page 29: Table Of Contents

    These components must be electronically matched, programmed or paired before use. This is usually done at the Girard Systems factory. Should the need arise for the user to pair a device with the motor controller they must refer to the appropriate manual for the devices applicable to their particular installation.

  • Page 30: Installation Guidelines

    INSTALLATION GUIDELINES The purpose of this device is to automatically send a signal to the motor controller of the fitted awning to fully retract the awning in windy weather conditions. In new installations the 98GC779 Motion sensor is preprogrammed at the factory. Replacement Motion sensors will need to be programmed.
  • Page 31 The cable of the Motion sensor points in toward the middle of the awning, and is connected by means of a water resistant connection as shown in the photographs below. Once connected the cable should be tied and secured neatly to the awning lead rail. Page 5 of 22...
  • Page 32 2 small Phillips screws securing the module to the mounting bracket and turning the module so that the cable is now to the left and the Girard Systems Logo is facing upward, and then replace the screws. So that this ….

  • Page 33: Motion Sensor And Led Connections

    Motion Sensor and LED Connections 4 conductor power supply 3 conductor power supply Page 7 of 22...

  • Page 34: Preparation For Pairing

    Programming the Motion Sensor (98GC779G) Preparation for Pairing Remove the 2 small Phillips screws which secure the motion sensor to the mounting bracket. The base of the module is magnetized so will need to be gently lifted off. Fig.1 Then turn it over. Fig.2 Page 8 of 22...
  • Page 35 Remove the 4 Phillips Base Plate Magnet screws holding the module together. Remove the base plate and silicone insert. Insert Fig.3 Turn the base plate over (Magnet down). Reed Switch Then place the motion sensor on top of it so that the magnet is aligned with the reed switch.

  • Page 36: Pair With Gc274A Or Gc274B Motor Controller

    Pair with GC274A or GC274B Motor controller. First identify which GC274 Motor Controller must be paired with the motion sensor, there may be more than one installed on the vehicle. This can be achieved by pushing the FWD / REV buttons on the side of the controller and observing which awning responds.
  • Page 37 Next Prepare the motion sensor for pairing as described on pages 8 & 9. Note; When carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings.

  • Page 38: Pair With Gc136 Motor Controller

    Pair with GC136 Motor Controller Fig.7 STOP REVERSE PROGRAM Fig.8 Fig.9 First identify which GC136 Motor Controller must be paired with the motion sensor, there may be more than one installed on the vehicle. This can be achieved by pushing the IN/OUT buttons on the side of the controller and observing which awning responds.
  • Page 39 Note; When carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings. It is highly recommended that you read and understand the following sequence before attempting to execute it. a.

  • Page 40: Pair With Dc Motor Controller Gc732G

    Pair with DC Motor Controller GC732G Fig.10 First identify which GC732G Motor Controller must be paired with the motion sensor, there may be more than one installed on the vehicle. This can be achieved by pushing the IN/OUT buttons on the face of the controller and observing which awning responds. Program Reverse Fig.11...
  • Page 41 Note; When carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings. It is highly recommended that you read and understand the following sequence before attempting to execute it. a.

  • Page 42: Pair With Dc Motor Controller Gc1146C

    Pair with 12vDC Motor Controller GC1146C Identify the hand held remote Handset which operates the DC Motor controller for the awning on which the motion sensor is to be mounted. This is likely to be either a 98GC1063 Single channel, or a 98GC1029 Multi channel handset. Fully extend the awning to ensure smooth operation, and then retract the awning leaving it partially open (about 3 feet).
  • Page 43 Note; When carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings. It is highly recommended that you read and understand the following sequence before attempting to execute it. a.

  • Page 44: Pair With 98Gc74 Motor Controller

    Pair with 98GC74 AC Motor Controller Identify the hand held remote Handset which operates the Motor controller for the awning on which the motion sensor is to be mounted. This is likely to be either a GC104 Single channel, or a GC105A/106/107 Multi-channel handset. Fully extend the awning to ensure smooth operation, and then retract the awning leaving it partially open (about 3 feet).
  • Page 45 Note; When carrying out this part of the procedure each step must be executed within 6 seconds of the previous one or the module will revert to factory settings. It is highly recommended that you read and understand the following sequence before attempting to execute it. a.
  • Page 46 Programming to a Remote Motor NOTE: • Before starting this procedure the Receiver must be without power (OFF) for at least 10 seconds. • During the programming function the interval between each step required must be less than 10 seconds 1.
  • Page 47 c. Locate the P2 Button on the back of the handset. P2 Button d. Familiarize yourself with the buttons and switches indicated in these illustrations. e. Next, prepare the motion sensor for pairing as described on pages 8 & 9. Note;...
  • Page 48 Press the UP button of the REMOTE MOTOR. d. Press the P2 button on the Remote. For queries or assistance with programming any of your G-Link devices please call Girard Systems TOLL FREE on 800–382–8442 between 7:30am and 3:30pm P.S.T. Page 22 of 22...
  • Page 49 5 CHANNEL REMOTE HANDSET GC105A INSTALLATION AND PROGRAMMING GUIDE REV.07242015 RV AWNING PRODUCTS 1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 (800) 382-8442 FAX (949)276-5500 www.girardrv.com...
  • Page 50 Shore Power – if connected; Generator Power – if the generator is running; Inverter Power – batteries must be charged for inverter operation. Girard Systems awnings are supplied with an electric motor appropriate to the product. Page 2 of 11...
  • Page 51 These components must be electronically matched, programmed or paired before use. This is usually done at the Girard Systems factory. Should the need arise for the user to pair a device with the motor controller they must refer to the appropriate manual for the devices applicable to their particular installation.

  • Page 52: Product Description

    PRODUCT DESCRIPTION The GC105A is a 5 channel RF transmitter, powered by a single 3v Lithium battery (CR2430) designed to control up to 5 awnings by means of a multi-functional circular control pad. As shown in Fig.1 below. Channel Display Screen Awning retract Stop Channel select...
  • Page 53 Turn the remote handset over to find; • The Battery compartment, (into which a single CR2430 3v Lithium battery should be inserted as shown) • The P2 button (used when pairing the device to some other G-Link Modules) • Time button (Not used) •...

  • Page 54: Programming

    PROGRAMMING The following pages give instructions of how to Program or electronically Pair the GC105A with various motor controllers. Ensure that you select the correct set of instructions for the motor controller on your vehicle. GC136 AC Motor Controller Program Button Stop Button Fig.1 Fig.2...

  • Page 55: Gc274A / Gc274B Ac Motor Controllers

    GC274A / GC274B AC motor Controllers Lid Release Lid Release Program Button Fig.3 To pair the GC105A Remote handset with a GC274A or GC274B, first remove the lid of the motor control module by pressing on the Lid release catches as shown in Fig.3 Note;...

  • Page 56: 98Gc74 Ac Motor Controller

    98GC74 AC Motor Controller When pairing with the 98GC74 it is advised that the awning to be controlled is manually extended couple of feet to enable the programmer to see if the awning is responding in the correct direction when the buttons on the remote handset are pressed. The programming window for this module is only 6 seconds so please ensure that the programming instructions are read and understood before attempting to execute them.

  • Page 57: Gc732G Dc Motor Controller

    GC732G DC Motor Controller Program Button Fig.4 To pair the GC105A Remote handset with a GC732G Motor controller, follow the steps below. Note; When carrying out this part of the procedure each step must be executed within 10 seconds of the previous one or the module will revert to factory settings. It is highly recommended that you read and understand the following sequence before attempting to execute it.

  • Page 58: Gc1146C Dc Motor Controller

    GC1146C DC Motor Controller To pair the GC105A Remote handset with a GC1146C Motor controller, follow the steps below. • Fully extend the awning to ensure smooth operation, and then retract the awning leaving it partially open (about 3 feet). •...
  • Page 59 Ensure that the awning responds correctly to the wall switch by pressing the OUT, STOP and IN buttons alternately. For queries or assistance with programming any of your G-Link devices please call Girard Systems TOLL FREE on 800–382–8442 between 7:30am and 3:30pm P.S.T. Page 11 of 11...
