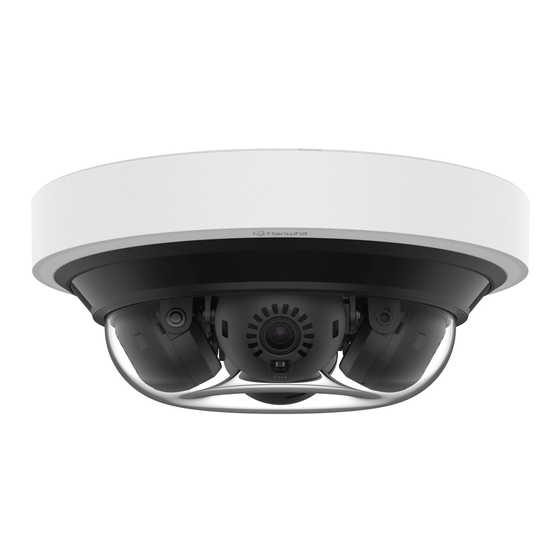

NETWORK CAMERA
User Manual
PNM-C16013RVQ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNM-C16013RVQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanwha Vision PNM-C16013RVQ

Summary of Contents for Hanwha Vision PNM-C16013RVQ

  • Page 1 NETWORK CAMERA User Manual PNM-C16013RVQ...
  • Page 2 Network Camera User Manual Copyright ©2023 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 22. Screen distortion could occur outside of the subject distance. 23. While encoding, a real time fps fluctuation of ±1fps could occur. 1. Read these instructions. 24. Although a rapid change in temperature could cause frost inside the dome, there will be no problem with the video.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

  • Page 5: Table Of Contents

    CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included Network I/O box - separately sold product Optional Accessories for Installation At a Glance APPENDIX Troubleshooting...

  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD SPECIFICATIONS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ RAM : 8G or higher ~ Recommended capacity : 16 GB ~ 512 GB(MLC or 3D TLC type required) ~ Recommended browser: Chrome ~ Recommended Manufacturers : SanDisk, Transcend, Samsung ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)

  • Page 7: What's Included

    WHAT’S INCLUDED NETWORK I/O BOX - SEPARATELY SOLD PRODUCT Please check if your camera and accessories are all included in the product package. Appearance Item Name Description Model Name (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description...

  • Page 8: Optional Accessories For Installation

    overview OPTIONAL ACCESSORIES FOR INSTALLATION You can purchase appropriate optional accessories available. In-ceiling Mount Wall Mount and Pole Mount Hanging Mount Wall Mount Base Corner Mount Cabinet Conduit Adaptor SBP-300WMW (Wall Mount) * SBP-300PMW2 required for pole installation SBP-300WMW1 SBP-200HMW SHD-2000FPW SBP-060BA SBP-300NBW...
  • Page 9 Ceiling Mount Parapet Mount Assembly Individual Parts SBP-300LMW SBP-C15P SBP-140CMB SBP-180CMB SBP-180CMS SBP-150CMI SBP-300CMTS SBP-300CMTW SBP-300CMI SBP-150CMP (Telescopic) (Telescopic) SBP-300CMW1 SBP-300CMP SBP-900CMW SBP-900CMP SBP-156LMW1 (Telescopic) English _9...

  • Page 10: At A Glance

    overview AT A GLANCE Appearance Components Item Description Illumination Sensor Detects incoming light to control the IR LED. Lens 4 camera lenses show different directions. IR LED These infrared LED’s are controlled by the illumination sensor. The button restores all camera settings to the factory default. Item Description Press and hold for about 5 seconds to reboot the system.
  • Page 11 Components Item Description PoE+ port This port connects power and network via PoE+ injector. Micro SD card slot Compartment for the Micro SD card. English _11...

  • Page 12: Installation & Connection

    installation & connection INSTALLATION 2. Remove the camera body and mounting plate by pulling the mounting clip, as shown in the figure. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 13 Inserting a Micro SD card Removing a Micro SD card Insert a Micro SD card in the arrow direction shown in the figure. Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot.
  • Page 14 installation & connection Installation (mount plate) 1-3. Pull out network cable through the hole in the mount plate. [Directly installing on ceiling] 1-1. Place the mount plate on the desired location considering the direction to be monitored, mark the locations for the screw holes and cable holes, and then drill the holes. When connecting cables from the side, first remove the wiring hole cover of the dome cover.
  • Page 15 [Installing using pipe] 2-3. Mount the pipe to the conduit adaptor. 2-4. Fix the mount plate using appropriate screws. 2-5. Take out the network cable through the pipe. When installing using pipe, make sure to remove the top case’s wiring hole cover before use.
  • Page 16 installation & connection Installation (camera body and dome cover) [Installing the network cable] (IP66) 1. Connect the safety wire to the mount plate. Use a cable bushing compliant with the network cable to be connected. Camera main: use a cable with the diameter of Ø5 to 6.5 You can only use a network cable with a diameter of Ø6.5 or less.
  • Page 17 6. Connect the network cable jack to the PoE+ port of the camera. 8. Adjust the lens to the desired direction by referring to “Adjusting the monitoring direction for the camera”. If you tilt the lens, you may need to adjust the lens as this may block the screen. Connect a monitoring device to the USB port and then monitor and adjust it.
  • Page 18 installation & connection 10. Assemble the top case. Removing the top case When assembling the top case, align the pipe cover part to do so. Remove the top case by turning it clockwise, or remove it with a flathead screwdriver. Align the installation groove and push the top case until they click into place.
  • Page 19 Outdoor installation Adjusting the monitoring direction for the camera When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside. 1.
  • Page 20 installation & connection Installation precautions when using the IR mode ~ <Auto1>: Optimized for IR light to radiate evenly when the center of the object is saturated. ~ <Auto2>: Optimized for IR light to evenly radiate at the overall IR brightness. [Example of installing the ceiling mount] Front direction CH 3...

  • Page 21: Connecting With Other Device

    CONNECTING WITH OTHER DEVICE Powering and networking Connect the PoE+ device with the PoE+ port of the camera. WiFi dongle Connect and use a PoE+ -enabled router. Use a PoE+ device that complies with the IEEE 802.3at standard. Network Cable Specification Item Contents Remark...

  • Page 22: Connecting Audio And Alarm I/O

    installation & connection Connecting WiFi CONNECTING AUDIO AND ALARM I/O Camera Setup You can connect audio and alarm using a network I/O box separately sold. 1. Connect OTG adapter (5-pin) and WiFi dongle to the micro USB port. Smartphone Setup 1.

  • Page 23: Network Connection And Setup

    network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 24: Using Device Manager

    If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com).

  • Page 25: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. PNM-C16013RVQ - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 26: Port Range Forward (Port Mapping) Setup

    network connection and setup PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen.

  • Page 27: Connecting To The Camera From A Shared Local Pc

    CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.

  • Page 28: Connecting To The Camera

    web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1.

  • Page 29: Password Setting

    PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 characters, you must use at least 3 system over the network.

  • Page 30: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION No signal is found at the Alarm Output ~ On the authentication popup window prompted when initially accessing https, click "View port even when an intelligent video Authentication Certificate" and select the "Always trust when connecting to the designated ~ Check alarm output port settings.
  • Page 31 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
