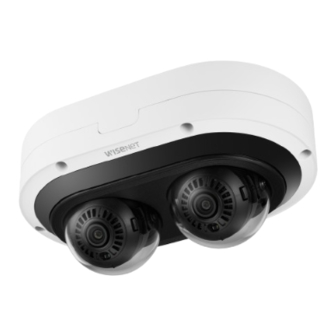

NETWORK CAMERA
User Manual
PNM-C7083RVD
PNM-C12083RVD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNM-C7083RVD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanwha Vision PNM-C7083RVD

Summary of Contents for Hanwha Vision PNM-C7083RVD

  • Page 1 NETWORK CAMERA User Manual PNM-C7083RVD PNM-C12083RVD...
  • Page 2 Network Camera User Manual Copyright ©2022 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 16. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2” EXPLANATION OF GRAPHICAL SYMBOLS and rated from PoE, 0.37 A. (PNM-C7083RVD) 17. This product is intended to be supplied by isolation power.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

  • Page 5: Table Of Contents

    CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included Network I/O box - separately sold product Optional Accessories for Installation At a Glance APPENDIX Troubleshooting...

  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)

  • Page 7: What's Included

    WHAT’S INCLUDED NETWORK I/O BOX - SEPARATELY SOLD PRODUCT Please check if your camera and accessories are all included in the product package. Appearance Item Name Description Model Name (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description...
  • Page 8 overview AT A GLANCE Components (Front Side) Appearance Item Description Illumination Sensor Detects incoming light to control the IR LED. Lens 2 camera lenses show different directions. The button restores all camera settings to the factory default. Item Description Press and hold for about 5 seconds to reboot the system. Dome cover Case cover used to protect the lens and the main unit.
  • Page 9 Components (Rear Side) Item Description These infrared LED’s are controlled by the illumination sensor. IR LED Micro SD card slot Compartment for the Micro SD card. PoE+ port This port connects power and network via PoE+ injector. English _9...

  • Page 10: Installation & Connection

    installation & connection INSTALLATION 2. Loosen the fastening screw on the camera body. You don’t have to completely remove the screws. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 11 Inserting a Micro SD card Removing a Micro SD card Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD 1. Remove the dome cover of the camera. card from the slot.
  • Page 12 installation & connection Installation (mount plate) When connecting the cable through the side, remove the wiring hole cover first before doing so. [Directly installing on wall/ceiling] 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. 1-2.
  • Page 13 [Installing using pipe] 2-3. Place the pipe on the mount plate. 2-4. Fix the mount plate using appropriate screws. 2-1. Attach the installation template and drill holes for screws and cables. 2-2. Separate the pipe cover of the mount plate by pressing its sides. 2-5.
  • Page 14 installation & connection [Installation using the mount] Installation (camera body and dome cover) The camera can also be installed on other mounts using the product-specific mount (hanging mount). 1. Pull out the cable bushings from the camera body. 3-1. Attach the hanging mount to the wall mount. Both the hanging mount and wall mount are sold separately.
  • Page 15 2-3. Mount the cable bushing to the camera body. 3. Using the fastening screws on the camera body, fix the camera body to the mount plate. TR20 4. Adjust the lens to the desired direction by referring to “Adjusting the monitoring direction for the camera”.
  • Page 16 installation & connection 5. Assemble the dome cover. [Using Weather cap] When assembling the dome cover, align the pipe cover part to assemble it. You can install it after purchasing a separately sold weather cam. Make sure to firmly tighten the fastening screws so that there is no water damage issue. 1.
  • Page 17 Outdoor installation Adjusting the monitoring direction for the camera When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside. 1.

  • Page 18: Connecting With Other Device

    installation & connection Installation precautions when using the IR mode CONNECTING WITH OTHER DEVICE ~ <Auto1>: Optimized to evenly radiate IR light when generally mounting the camera on the wall. WiFi dongle ~ <Auto2>: Optimized to evenly radiate IR light when generally mounting the camera on the ceiling. ~ <Manual>: You can assign an appropriate IR LED area based on the direction the camera faces.
  • Page 19 Connecting WiFi Network Cable Specification Camera Setup Item Contents Remark 1. Connect OTG adapter (5-pin) and WiFi dongle to the micro USB port. Connector RJ45 (10/100/1000BASE-T) Smartphone Setup Ethernet 10/100/1000BASE-T 1. Install the Wisenet Installation application. Cable Category 6 2. Select the camera SSID after turning on the WiFi. 3.
  • Page 20 installation & connection Connecting audio and alarm I/O You can connect audio and alarm using a network I/O box separately sold. Microphone Network Speaker <SPM-4210> Alarm Sensor (Warning lamp) For more information on the network I/O box, see the manual for the network I/O box. You can set the network I/O box in Camera web viewer <Setup ( )>...

  • Page 21: Network Connection And Setup

    network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 22: Using Device Manager

    If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com).

  • Page 23: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. PNM-C7083RVD - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 24: Port Range Forward (Port Mapping) Setup

    network connection and setup PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen.

  • Page 25: Connecting To The Camera From A Shared Local Pc

    CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.

  • Page 26: Connecting To The Camera

    web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1.

  • Page 27: Password Setting

    PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 digits, you must use at least 3 of system over the network.

  • Page 28: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION ~ On the authentication popup window prompted when initially accessing https, click "View No signal is found at the Alarm Output Authentication Certificate" and select the "Always trust when connecting to the designated port even when an intelligent video ~ Check alarm output port settings.
  • Page 29 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
