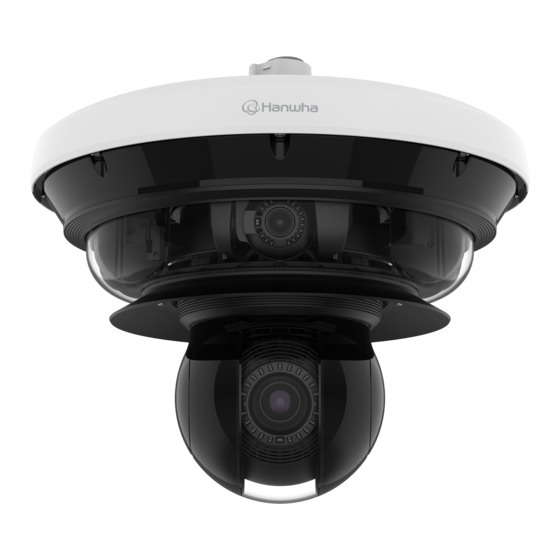

Hanwha Vision PNM-C34404RQPZ User Manual
  1. Manuals
  2. Brands
  3. Hanwha Vision Manuals
  4. Security Camera
  5. PNM-C34404RQPZ
  6. User manual

Hanwha Vision PNM-C34404RQPZ User Manual

Hide thumbs Also See for PNM-C34404RQPZ:
Table of Contents

Advertisement

Quick Links

NETWORK CAMERA
User Manual
PNM-C34404RQPZ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNM-C34404RQPZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanwha Vision PNM-C34404RQPZ

Summary of Contents for Hanwha Vision PNM-C34404RQPZ

  • Page 1 NETWORK CAMERA User Manual PNM-C34404RQPZ...
  • Page 2 Network Camera User Manual Copyright ©2023 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 22. This device has been verified using STP cable. The use of appropriate GND grounding and STP cable is recommended to effectively protect your product and property from transient voltage, thunderstroke, communication interruption. 1. Read these instructions. 23.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ The product has a damp-proof component attached to it. Due to the nature of the product, dews protective earthing connection.
  • Page 5 WARNING To Prevent damage which may caused by IR LED, don't stare at operating lamp. For below models only. PNM-C34404RQPZ English _5...

  • Page 6: Table Of Contents

    overview CONTENTS OVERVIEW WEB VIEWER Important Safety Instructions Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included Network I/O box - separately sold product Optional Accessories for Installation At a Glance APPENDIX...

  • Page 7: Recommended Pc Specifications

    RECOMMENDED PC SPECIFICATIONS RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD SPECIFICATIONS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ RAM : 8G or higher ~ Recommended capacity : 16 GB ~ 512 GB(MLC or 3D TLC type required) ~ Recommended browser: Chrome ~ Recommended Manufacturers : SanDisk, Transcend, Samsung ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based) ~ Product Type : High endurance, Pro endurance...

  • Page 8: What's Included

    overview WHAT’S INCLUDED Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description Appearance Item Name Quantity Description Camera Hanging mount adapter Adapter for product installation Quick Guide IR LED Shield...

  • Page 9: Optional Accessories For Installation

    OPTIONAL ACCESSORIES FOR INSTALLATION You can purchase appropriate optional accessories available. A mount that can be used without a hanging mount adapter Wall Mount and Pole Mount Corner Mount Parapet Mount Ceiling Mount SBP-156WMW SBP-156KMW SBP-156LMW SBP-156CMW A mount that can be used after being connected to a hanging mount adapter Wall Mount and Pole Mount Corner Mount Parapet Mount...
  • Page 10 overview Ceiling Mount SBP-150CMI SBP-300CMI SBP-300CMW SBP-300CMTW SBP-300CMW1 SBP-900CMW 10_ overview...

  • Page 11: At A Glance

    AT A GLANCE Item Description Appearance Micro SD Card slot Compartment for the Micro SD card. The button restores all camera settings to the factory default. Press and hold for about 5 seconds to reboot the system. If you reset the camera, the network settings will be adjusted so that DHCP can be Reset Button enabled.
  • Page 12 overview Mounting surface Item Description Cable bushing A waterproof rubber cap, which allows a network cable to go through it. Hang this hook on the safety wire of the mount when installing this product to prevent it Safety wire hook from falling.

  • Page 13: Installation & Connection

    installation & connection INSTALLATION 2. Insert a Micro SD card in the arrow direction shown in the figure. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 14 installation & connection Removing a Micro SD card Preparing & Installing Camera Mount Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD For installation guidelines for mounts, refer to the installation manual that is enclosed with the mount. card from the slot.
  • Page 15 3. Pull off the extruded part of the removed cable bushing. Installation 4. Use the cap installer to route the network cable through the cable bushing. 1. Connect the hanging mount adapter to the mount to be installed. If the cable bushing is torn, use the extra cable bushing provided. 2.
  • Page 16 installation & connection 6. Hang the safety cable of the hanging mount adapter on the safety cable hook of the top cover. 7. Connect the network cable to the network port. Safety wire Safety wire hook 8. Plug the cable bushing of the network cable in the hole. When plugging it in, press the whole bushing area evenly so that it is properly plugged in.
  • Page 17 9. Install the bushing clip. 11. Using the supplied screw bit (Torx 30), tighten the 3 fixing screws on the top cover firmly. Let the arrow mark on the clip point in the direction of the safety wire hook, and click each side into place one at a time.

  • Page 18: Powering And Networking

    installation & connection POWERING AND NETWORKING Network Cable Specification Item Contents Remark Connect the HPoE injector with the HPoE port of the camera. Connector RJ45 (10/100/1000BASE-T) To operate with 1000BASE-T, a cable of Ethernet 10/100/1000BASE-T UTP-6 or higher should be used for the Giga hub.

  • Page 19: Connecting Audio And Alarm I/O

    CONNECTING AUDIO AND ALARM I/O You can connect audio and alarm using a network I/O box separately sold. Microphone Network Speaker <SPM-4210> Sensor Alarm (Warning lamp) For more information on the network I/O box, see the manual for the network I/O box. )>...

  • Page 20: Network Connection And Setup

    network connection and setup network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN 1.

  • Page 21: Using Device Manager

    If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com).

  • Page 22: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. PNM-C34404RQPZ - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 23: Port Range Forward (Port Mapping) Setup

    PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras ~ You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the ~ A user can change each port using the camera setting screen.

  • Page 24: Connecting To The Camera From A Shared Local Pc

    network connection and setup CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.

  • Page 25: Connecting To The Camera

    web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. 1.

  • Page 26: Password Setting

    web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network.

  • Page 27: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION ~ On the authentication popup window prompted when initially accessing https, click "View ~ Check if the Micro SD card is defective. Authentication Certificate" and select the "Always trust when connecting to the designated Cannot record into the Micro SD card.
  • Page 28 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
