4 About the unit

4 About the unit
WARNING: FLAMMABLE MATERIAL
The refrigerant inside this unit is mildly flammable.
4.1

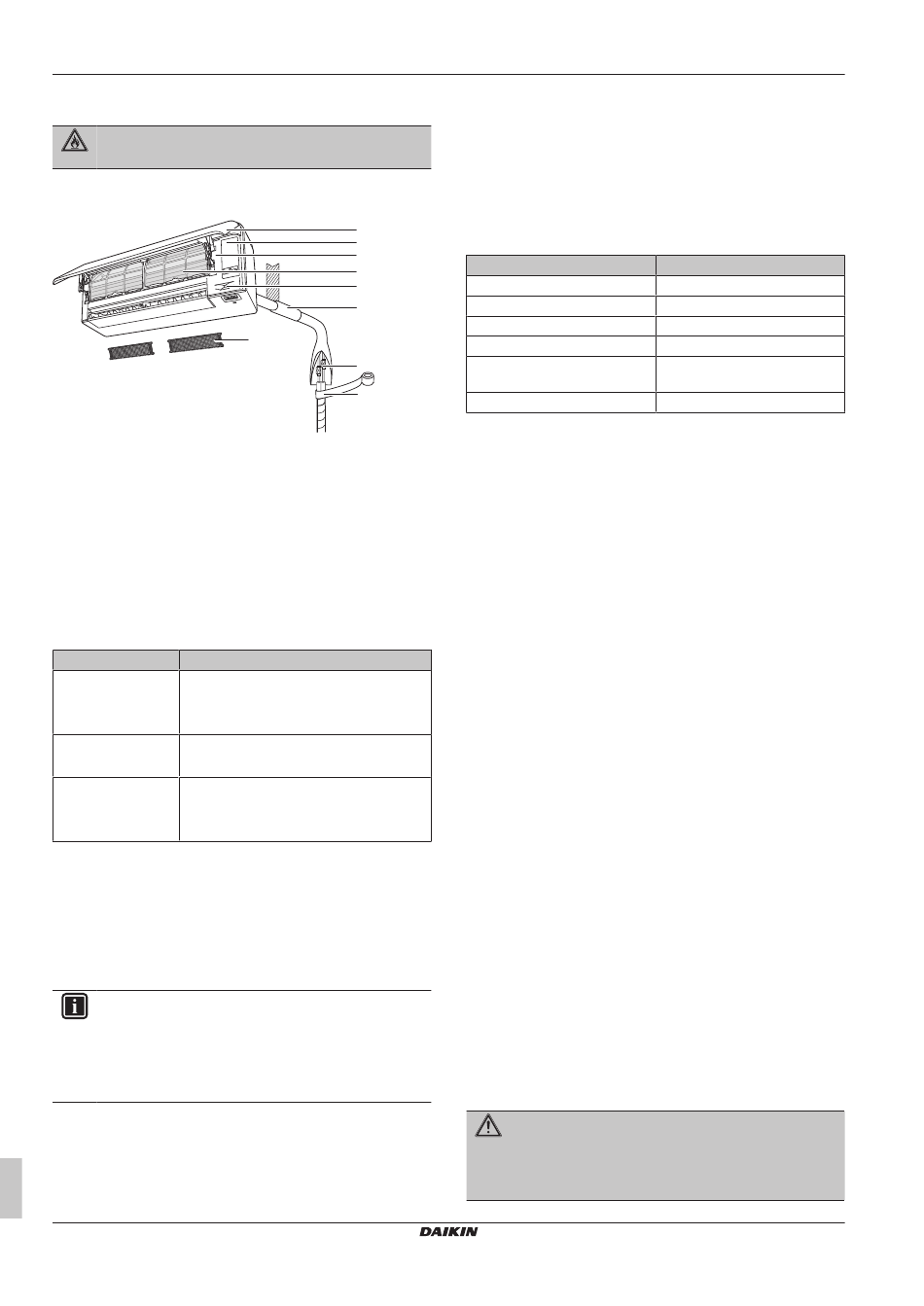

System layout

a Front panel
b Service cover
c SSID sticker
d Air filter
e Intelligent eye sensor
f Caulk pipe hole gap with putty
g Refrigerant piping, drain hose and interconnection cable
h Insulation tape
i Titanium apatite deodorizing filter and silver particle filter
(Ag-ion filter)
4.2

Operation range

Use the system in the following temperature and humidity ranges for
safe and effective operation.
Operation mode
(a)(b)
Cooling ▪ Outdoor temperature: –10~46°C
▪ Indoor temperature: 18~32°C
▪ Indoor humidity: ≤80%
(a)
Heating ▪ Outdoor temperature: –15~24°C
▪ Indoor temperature: 10~30°C
(a)
Drying ▪ Outdoor temperature: –10~46°C
▪ Indoor temperature: 18~32°C
▪ Indoor humidity: ≤80%
If operated outside the operation range:
(a) A safety device might stop the operation of the system.
(b) Condensation might occur on the indoor unit and drip.
4.3

About the wireless LAN adapter

For detailed specifications, installation instructions, setting methods,
FAQ, declaration of conformity and the latest version of this manual,
visit http://www.onlinecontroller.daikineurope.com.
INFORMATION
▪ Daikin Industries Czech Republic s.r.o. declares that
the radio equipment type inside of this unit is in
compliance with Directive 2014/53/EU.
▪ This unit is considered as combined equipment
according to the definition of Directive 2014/53/EU.
4.3.1 Precautions when using the wireless
adapter
Do NOT use near:
Installer reference guide
8
a
b
c
d
e
f
i
g
h
Operation range
▪ Medical equipment. E.g. persons using cardiac pacemakers or
defibrillators. This product
interference.
▪ Auto-control equipment. E.g. automatic doors or fire alarm
equipment. This product may cause faulty behaviour of the
equipment.
▪ Microwave oven. It may affect wireless LAN communications.
4.3.2

Basic parameters

Parameter
Frequency range
Radio protocol
Radio frequency channel
Output power
Effective radiated power
Power supply
4.3.3

Setting the wireless adapter

The customer is responsible for providing:
▪ Smartphone or tablet with minimum supported version of Android
or iOS, specified on http://www.onlinecontroller.daikineurope.com
▪ Internet line and communicating device such as modem, router
etc.
▪ Wireless LAN access point.
▪ Installed free Daikin Online Controller application.
To install the Daikin Online Controller application
1 Open:
▪ Google Play for appliances using Android.
▪ App Store for appliances using iOS.
2 Search for Daikin Online Controller.
3 Follow the directions on the screen to install.
5

Preparation

5.1

Overview: Preparation

This chapter describes what you have to do and know before going
on-site.
It contains information about:

▪ Preparing the installation site

▪ Preparing the refrigerant piping
▪ Preparing the electrical wiring
5.2 Preparing the installation site
Do NOT install the unit in places often used as work place. In case
of construction works (e.g. grinding works) where a lot of dust is
created, the unit MUST be covered.
Choose an installation location with sufficient space for carrying the
unit in and out of the site.
WARNING
The appliance shall be stored in a room without
continuously operating ignition sources (example: open
flames, an operating gas appliance or an operating electric
heater).
CTXA15+FTXA25~50(A)(B)2V1B(W)(S)(T)(B)
may cause electromagnetic
Value
2400 MHz~2483.5 MHz
IEEE 802.11b/g/n
1~11
0 dBm~18 dBm
17 dBm (11b) / 13 dBm (11g) /
12 dBm (11n)
DC 3.3 V / 500 mA
Daikin room air conditioner
4P518023-3F – 2019.10
