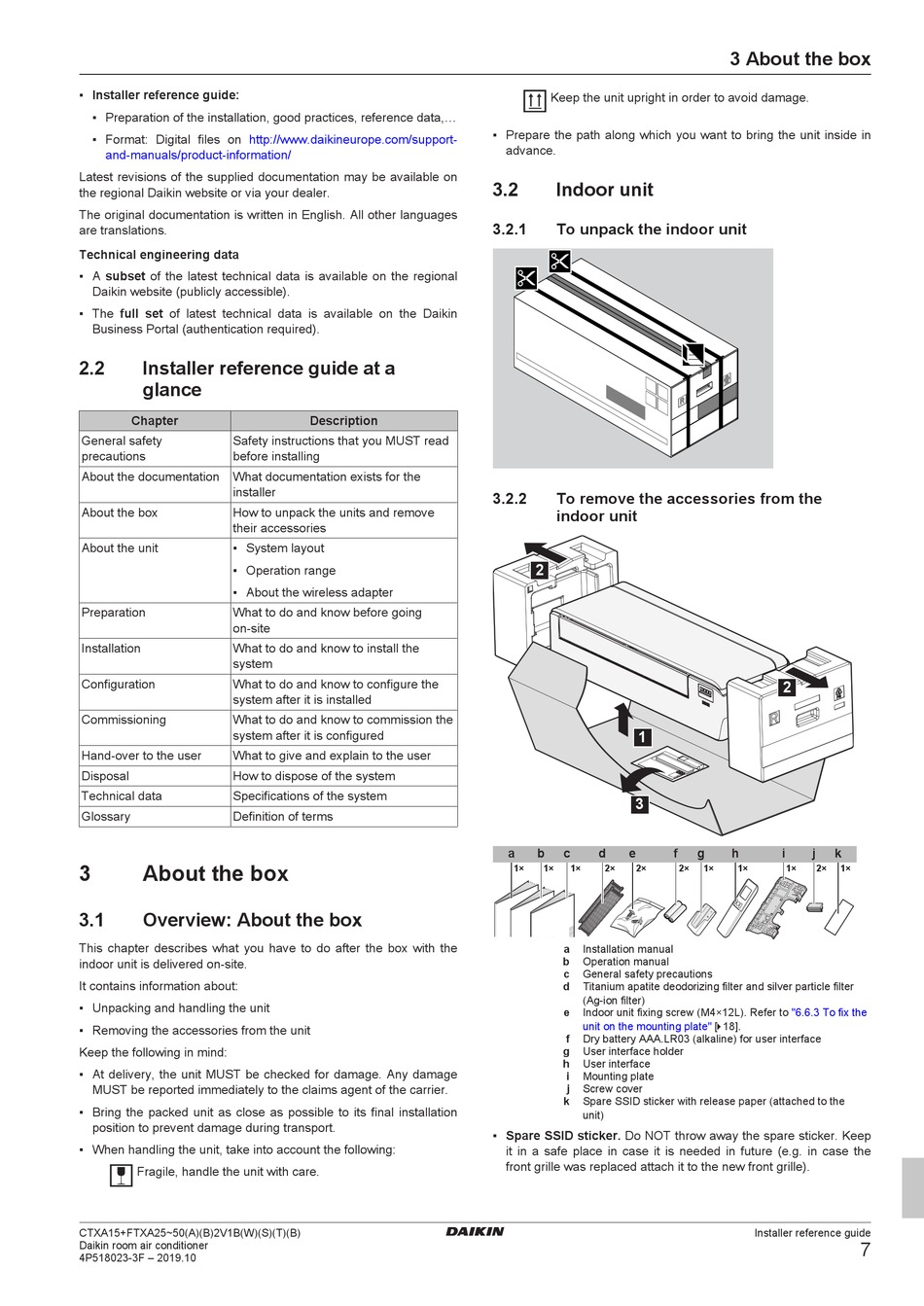

Installer Reference Guide At A Glance; About The Box; Overview: About The Box; Indoor Unit - Daikin FTXA50A2V1BW Installer's Reference Manual

▪ Installer reference guide:
▪ Preparation of the installation, good practices, reference data,...
▪ Format: Digital files on http://www.daikineurope.com/support-
and-manuals/product-information/
Latest revisions of the supplied documentation may be available on
the regional Daikin website or via your dealer.
The original documentation is written in English. All other languages
are translations.
Technical engineering data
▪ A subset of the latest technical data is available on the regional
Daikin website (publicly accessible).
▪ The full set of latest technical data is available on the Daikin
Business Portal (authentication required).
2.2 Installer reference guide at a
glance
Chapter
General safety Safety instructions that you MUST read
precautions before installing
About the documentation What documentation exists for the
installer

About the box

How to unpack the units and remove
their accessories
About the unit ▪ System layout
▪ Operation range
▪ About the wireless adapter
Preparation What to do and know before going
on‑site
Installation What to do and know to install the
system
Configuration What to do and know to configure the
system after it is installed
Commissioning What to do and know to commission the
system after it is configured
Hand‑over to the user What to give and explain to the user
Disposal How to dispose of the system
Technical data Specifications of the system
Glossary Definition of terms
3 About the box
3.1

Overview: About the box

This chapter describes what you have to do after the box with the
indoor unit is delivered on-site.
It contains information about:
▪ Unpacking and handling the unit
▪ Removing the accessories from the unit
Keep the following in mind:
▪ At delivery, the unit MUST be checked for damage. Any damage
MUST be reported immediately to the claims agent of the carrier.
▪ Bring the packed unit as close as possible to its final installation
position to prevent damage during transport.
▪ When handling the unit, take into account the following:
Fragile, handle the unit with care.
CTXA15+FTXA25~50(A)(B)2V1B(W)(S)(T)(B)
Daikin room air conditioner
4P518023-3F – 2019.10
Description
Keep the unit upright in order to avoid damage.
▪ Prepare the path along which you want to bring the unit inside in
advance.
3.2

Indoor unit

3.2.1

To unpack the indoor unit

3.2.2 To remove the accessories from the
indoor unit
2
1
3
a b c d e
1× 1× 1× 2× 2×
a Installation manual
b Operation manual
c General safety precautions
d Titanium apatite deodorizing filter and silver particle filter
(Ag-ion filter)
e Indoor unit fixing screw (M4×12L). Refer to
unit on the mounting
f Dry battery AAA.LR03 (alkaline) for user interface
g User interface holder
h User interface
i Mounting plate
j Screw cover
k Spare SSID sticker with release paper (attached to the
unit)
▪ Spare SSID sticker. Do NOT throw away the spare sticker. Keep
it in a safe place in case it is needed in future (e.g. in case the
front grille was replaced attach it to the new front grille).
3 About the box
2
f g h i j k
2× 1× 1× 1× 2× 1×
"6.6.3 To fix the
plate" [ 4 18].
