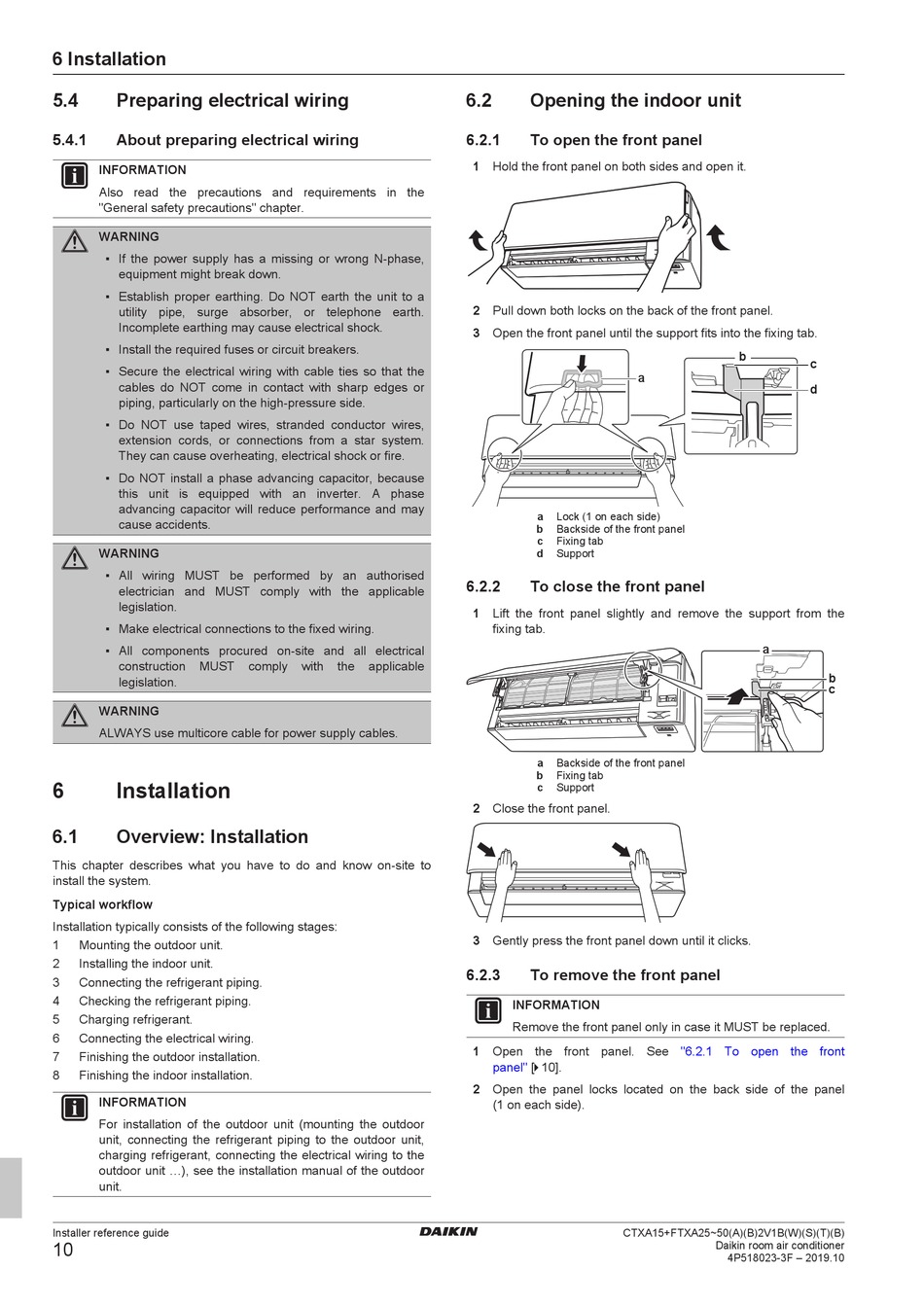

6 Installation

5.4

Preparing electrical wiring

5.4.1

About preparing electrical wiring

INFORMATION
Also read the precautions and requirements in the
"General safety precautions" chapter.
WARNING
▪ If the power supply has a missing or wrong N-phase,
equipment might break down.
▪ Establish proper earthing. Do NOT earth the unit to a
utility pipe, surge absorber, or telephone earth.
Incomplete earthing may cause electrical shock.
▪ Install the required fuses or circuit breakers.
▪ Secure the electrical wiring with cable ties so that the
cables do NOT come in contact with sharp edges or
piping, particularly on the high-pressure side.
▪ Do NOT use taped wires, stranded conductor wires,
extension cords, or connections from a star system.
They can cause overheating, electrical shock or fire.
▪ Do NOT install a phase advancing capacitor, because
this unit is equipped with an inverter. A phase
advancing capacitor will reduce performance and may
cause accidents.
WARNING
▪ All wiring MUST be performed by an authorised
electrician and MUST comply with the applicable
legislation.
▪ Make electrical connections to the fixed wiring.
▪ All components procured on-site and all electrical
construction MUST
legislation.
WARNING
ALWAYS use multicore cable for power supply cables.
6 Installation
6.1

Overview: Installation

This chapter describes what you have to do and know on-site to
install the system.
Typical workflow
Installation typically consists of the following stages:
1 Mounting the outdoor unit.
2 Installing the indoor unit.
3 Connecting the refrigerant piping.
4 Checking the refrigerant piping.
5 Charging refrigerant.
6 Connecting the electrical wiring.
7 Finishing the outdoor installation.
8 Finishing the indoor installation.
INFORMATION
For installation of the outdoor unit (mounting the outdoor
unit, connecting the refrigerant piping to the outdoor unit,
charging refrigerant, connecting the electrical wiring to the
outdoor unit ...), see the installation manual of the outdoor
unit.
Installer reference guide
10
comply with the applicable
6.2

Opening the indoor unit

6.2.1

To open the front panel

1 Hold the front panel on both sides and open it.
2 Pull down both locks on the back of the front panel.
3 Open the front panel until the support fits into the fixing tab.
a
a Lock (1 on each side)
b Backside of the front panel
c Fixing tab
d Support
6.2.2

To close the front panel

1 Lift the front panel slightly and remove the support from the
fixing tab.
a Backside of the front panel
b Fixing tab
c Support
2 Close the front panel.
3 Gently press the front panel down until it clicks.
6.2.3

To remove the front panel

INFORMATION
Remove the front panel only in case it MUST be replaced.
1 Open the front panel. See
panel" [ 4 10].
2 Open the panel locks located on the back side of the panel
(1 on each side).
CTXA15+FTXA25~50(A)(B)2V1B(W)(S)(T)(B)
b
c
d
a
b
c
"6.2.1 To open the front
