QUICK START GUIDE

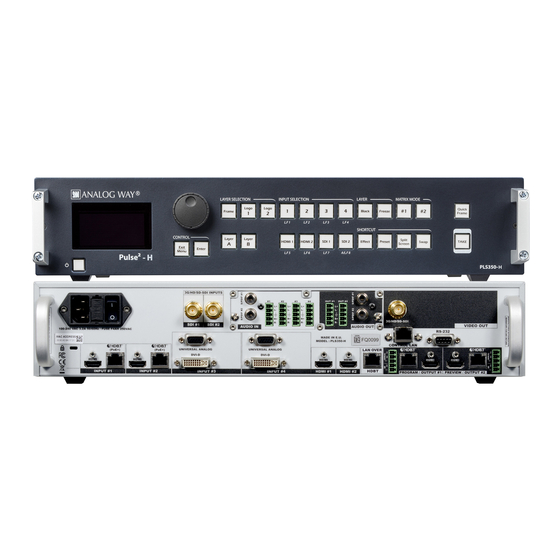

Pulse²
- H - Ref. PLS350-H
Thank you for choosing
set up and use your powerful Dual Scaler Hi-Resolution Seamless Switcher based on
platform within minutes. Discover the Pulse² - H capabilities and intuitive interface while configuring your
first show and unleash your creativity for a new experience in show and event management.
WHAT'S IN THE BOX
• 1 x Pulse² - H (PLS350-H)
• 1 x Power supply cord
• 1 x Ethernet cross cable (for device update)
• 1 x Remote Control Software (RCS²)*
• 1 x Set of 8 audio 5-pin screw terminals
• 1 x Front Rack Ears (the parts are stowed in the packaging foam)
• 1 x User Manual (PDF)*
• 1 x Quick Start guide*
* User manual, quick start guide and the RCS² are available
on www.analogway.com
QUICK SETUP & OPERATION
Getting started:
You may wish to reset the unit to factory settings to get
started. Go to: Menu > Control > Reset/Erase > Default
Values > Yes
1. Select the Output resolution that matches the native
resolution of your display. You will next be able to choose
the output rate.
Menu > Output > Output format > 1920x1080 >
Internal Ref > 60 Hz
Inputs can be configured automatically using the Auto
2.
Set All function. Menu > Intputs > AutoSet All > Yes
This function will scan each input and detect the sync type
that is plugged in. You can still do an Autoset or manual
setup per input.
The Pulse² - H has 6 layers available called: FRAME, LAYERS
A & B, LOGOS 1 & 2 and a QUICK FRAME. Those layers are
stacked and obscure underneath layers.
3. To display a source, select the LAYER A (it will begin to
blink) then, select a source (it will also blink). Press TAKE
to transition your source from Preview to Program output.
There is always a selected layer (blinking) and a selected
source (blinking). To view on Preview or change the content
of a different layer, simply select it. Only 1 layer can be seen
on the Preview at once.
4. To display a PIP, select the LAYER B (it will begin to blink)
Analog Way and the Pulse² - H. By following these simple steps, you will be able to
CAUTION!
If required, front handles of the device can be dismantled,
but with caution. The removed screws must not be reintro-
duced to their location without handles in place. Substantial
damages can occur, including risk of electric shock from the
mains voltage. Only use M4x12mm screws (supplied with the
unit).
then select your source (it will also blink). Press TAKE to
display the layer on the Program output.
To see the layer beneath, you will need to clear or move the
layers that are on top.
5. To clear the layer or any other layer, select the layer (it
will blink) then, select BLACK. Press TAKE to remove the
layer from the Program output.
TIP:
If you want the Program and Preview to toggle/flipflop
during each Take, enable this feature by going to Menu >
Control > Functions > Preset Toggle.
Once enabled, the old Program output will become the
new Preview after each Take.
6.
To record and display a Quick Frame follow the steps on
page 4.
See the next page which describes the button lighting color
code and other front panel features.
Pulse² - H can be used to display:
- sources seamlessly switched in the LAYER A. (Only 1 layer)
- 1 layer and 1 Logo over the LAYER A.
- 2 layer and 1 Logo over a Frame by resizing the LAYER A.
IMPORTANT: Simply selecting a menu item will not set it
to that value. Be sure to press the ENTER button when
setting the menu items.
Analog Way's Midra™
Go on our website to register
your product(s) and be notified
about new firmware versions:
http://bit.ly/AW-Register
