superbrightleds STN-3-UC User Manual

Important: Read all instructions prior to installation.
Under Cabinet LED Flexible Light Strip Kit

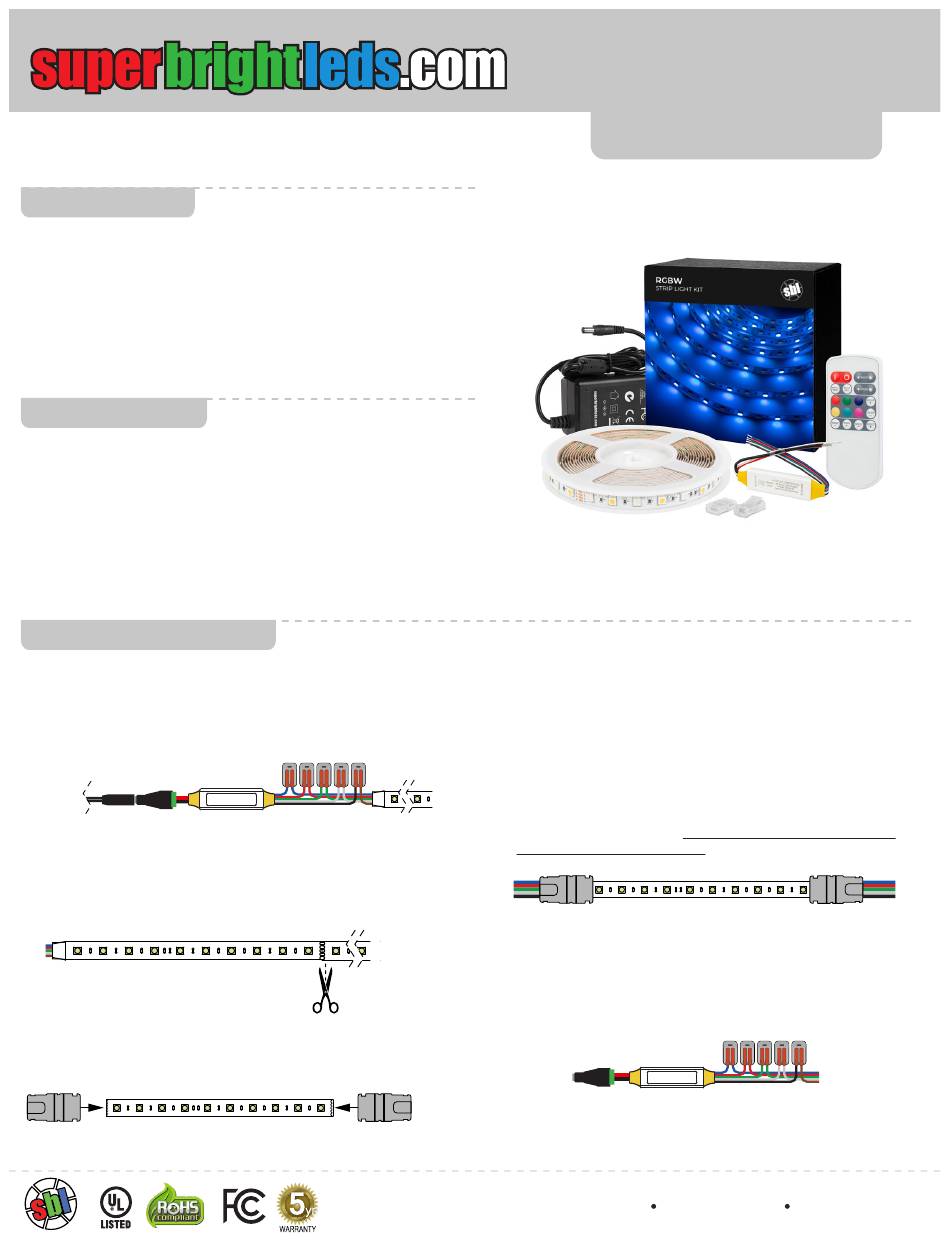

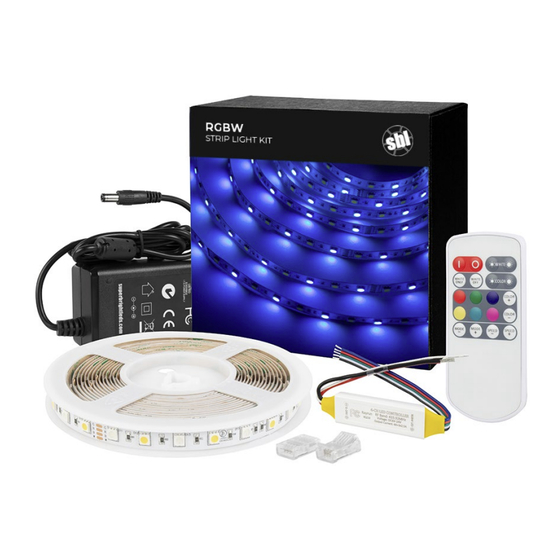

Included Parts

1 - LED Strip
1 - Controller with Remote (MCBRF-RGBW)
1 - Power Supply (CPS-24V-60W)
1 - CPS Connector (CPS-F2ST)
1 - 10 ft Section of 5 Conductor 22 AWG Wire (RGBW-5Wire)
5 - Quick-Connect Terminal Block (LQC-2)
14 - Clamp-On Solderless Connectors (SBL-MA5P-12)
2 - Double-Sided Adhesive Foam Pads (3M-FTP)

Safety and Notes

• Product should be installed in accordance with applicable national,
state, and local electrical codes.
• To reduce the risk of electric shock, ensure that the main power
source is switched off and the power supply is disconnected
before performing any installation or wiring procedures.
• Product is for use in dry, indoor locations only.
• Do not connect strip or controller directly to AC power.
• Do not connect components other than those included to the
power supply.
• Ensure the polarity of all connections is correct during installation.

Installation Process

Preinstall Check

Remove strip from reel and make connections to power supply
and controller. Briefly turn on strip using controller power button
to ensure proper operation of the strip, power supply, controller,
and remote. After successful test, disconnect power supply and
disconnect components.
Power
Supply

Layout

Layout strip on counter below cabinets. Hold strips up under
Power
cabinets or measure to determine lengths of strip segments
Supply
needed for installation. Cut strip to desired lengths ensuring all
cuts are made only on marked cut lines.

Strip Installation

Attach solderless connectors (STN12-5PC) to strip ends by
placing the connector fully over the strip and pushing down cap
until it locks in place.
¹UL certification only applies to the included strip and power supply
¹
Power
Supply
Power
Supply
Rev Date: V0.2 04/21/2022
4400 Earth City Expy, St. Louis, MO 63045
User Manual
STN-3-UC
Next, ensure all installation surfaces are clean and dry.
Begin to remove strip's backing while adhering to bottom front
edge of cabinets for optimal illumination. Press firmly to secure
strips to surface.
Route wire (RGBW-5Wire) for strip-to-strip connections under
cabinet seams, windows, and other spaces between cabinets.
Cut wire to length and attach wire ends to solderless connectors
by placing the wire fully into the connector and pushing the cap
down until it locks in place. Ensure the wires are connected to
the correct polarity on the strip.
Power

Controller and Power Connection

Supply
Use the double-sided foam adhesive pads (3M-FTP) to mount
the controller. Connect lead wires at the end of the strip run
to the controller (MCBRF-RGBW) with quick-connect terminal
blocks (LQC-2). Connect opposite end of the controller to the
Power
CPS Connector (CPS-F2ST).
Supply
Connect the power supply (CPS-24V-36W) to the CPS
connector and apply power to check for proper operation .
866-590-3533 superbrightleds.com
