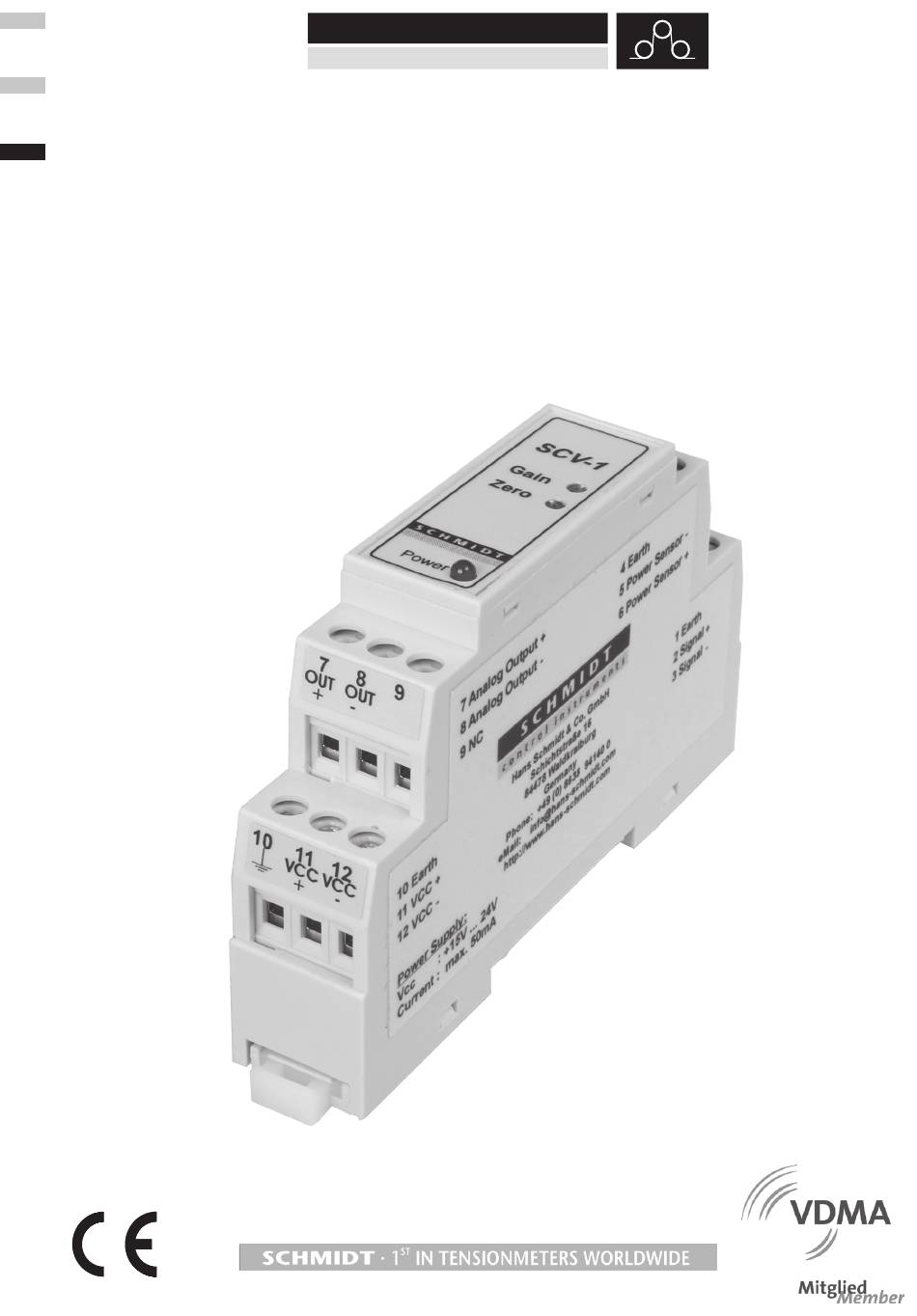

- Page 1 S C H M I D T c o n t r o l i n s t r u m e n t s Edition SCV-1-01.2.E SC Series Model SCV-1 Instruction Manual Valid as of: 01.02.2017 • Please keep the manual for future reference!
-
Page 2: Table Of Contents
Contents 1 Warranty and liability ....................3 1.1 Notices within the instruction manual ..............3 1.2 Responsibilities of the operating company ............. 3 1.3 Responsibilities of the personnel ................3 1.4 Informal safety measures ..................4 1.5 Training of the personnel ..................4 1.6 Intended use ...................... -
Page 3: Warranty And Liability
Warranty: - SCHMIDT tension meters are warranted for 12 months. Parts subject to wear, electronic components and measuring springs are not covered by the warranty. No warranty or liability will be accepted for bodily injury or property damage resulting from one or several of the following causes: - Misuse or abuse of the device. -
Page 4: Informal Safety Measures
The device is intended exclusively to be used as a tension meter. Any other use or any use exceeding this intention will be regarded as misuse. Under no circumstances shall Hans Schmidt & Co GmbH be held liable for damage resul- ting from misuse. -
Page 5: Specifications
Specifications Sensor Calibration: According to SCHMIDT factory procedure Genauigkeit: ± 2 % full scale oder besser Other calibration material: ± 3 % full scale or better Overload protection: 100 % of range Measuring principle: Strain gauge bridge Gehäuse: Aluminium Meas. roller deflection: 0.5 mm, max. -
Page 6: Delivery Inlcudes
TSB1 sensor, SCB-D1 display unit and an 8 m long connecting cable (special cable). In no event shall Hans Schmidt & Co GmbH take over any warranty coverage for, or shall be held liable for, any damage resulting from self-made cables.. -
Page 7: Initial Setup
Any difference in process material size and rigidity from the standard material may cause a deviation of the accuracy. In 95 % of all industrial applications the SCHMIDT calibration has been proven to provide the best results and is used for comparative purposes. -
Page 8: Gain Adjustment
3.3.1 Zero adjustment (cont.) - Allow approx. 10 minutes for thermal stabilization of the sensor. - Thread the process material through the measuring and guide rollers, following the material path symbol on the front of the sensor. Gain Zero fig. 3.3.1c When threading the process material through the rollers, follow the material path symbol on the front of the sensor. -
Page 9: Service And Maintenance
The question of finding the right frequency of calibration accuracy verification depends on several different factors: Operating time and load of the SCHMIDT tension meter Tolerance band defined by the customer Changes to the tolerance band compared to previous calibrations Therefore, the interval between verifications of calibration must be determined by the user‘s Quality Assurance Department, based on the user‘s experience. -
Page 10: Verification Of Calibration And Determination Of Repair Costs
6.1 Verification of calibration and determination of repair costs Flow chart for verifying the calibration of used tension meters, incoming and outgoing verification with Inspection Certificate 3.1 according to DIN EN 10204 Delivery Visual inspection and functional test Unit can be Vertification of the calibrated calibration... -
Page 11: Correspondence
Please indicate in your order whether you require an Inspection Certificate 3.1 according to DIN EN 10204. Service address: Hans Schmidt & Co GmbH Schichtstr. 16 84478 Waldkraiburg Germany... - Page 12 Yarn Package Durometer and Shore Durometer Sample Cutter Balance Moisture Meter Leak Tester More than 75 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: P. O. B. 11 54 Phone: e-mail: 84464 Waldkraiburg Germany int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com...
