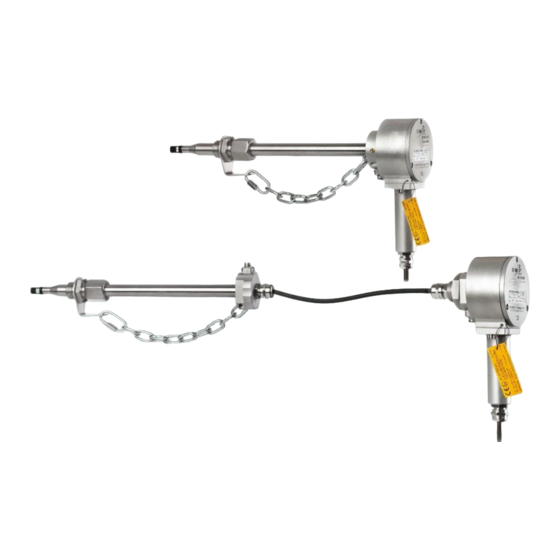

- Page 1 ® SCHMIDT Flow Sensor SS 20.600 Ex - Supplementary instructions for use in explosive atmospheres ATEX...
-
Page 2: Table Of Contents
Type plate - Labelling ..............11 Declarations of conformity ............. 12 Type Examination Certificate ............13 Imprint: Copyright 2021 SCHMIDT Technology GmbH All rights reserved Version: 535698.02B Subject to modifications SS 20.600 Ex – Supplementary instructions for use in explosive atmospheres ATEX Page 2... -
Page 3: Important Information
4). In particular, it is not designed for direct or indirect protec- tion of personal or machinery. SCHMIDT Technology cannot give any warranty as to its suitability for a certain purpose and cannot be held liable for accidental or sequential damage in connection with the delivery, performance or use of this unit. -
Page 4: Storage And Transport
2 Storage and transport Packaging The device is protected by its packaging. The packaging is environmen- tally safe and recyclable. Basically, the following materials are used: cardboard box polyethylene foam or polyethylene film Dispose of the available packaging parts by submitting it to a recycling company. -
Page 5: Safety Instructions For Explosive Atmospheres
3 Safety instructions for explosive atmospheres ® The ATEX version of the SCHMIDT Flow Sensor SS 20.600 Ex is suitable for the following applications: o in explosive gas atmospheres: Zone 2 The compliance with the important explosion protection data of your application must be ensured by appropriate labeling. -
Page 6: Application Range
4 Application range ® The ATEX version of the SCHMIDT Flow Sensor SS 20.600 Ex (cate- gory 3) is designed for stationary measurement of the flow velocity as well as the air and gas temperature in potentially explosive atmospheres with... -
Page 7: Mounting Instructions
5 Mounting instructions Prior to the assembly in explosive atmospheres, the following safety measures must be observed: Check if the device category corresponds to the specified zones. Check if the operation approval of the operator is available. Check if there is an explosive atmosphere during assembly, maintenance, etc. - Page 8 Figure 5-1 Grounding contacts (red), remote version Figure 5-2 Grounding contacts (red), compact sensor SS 20.600 Ex – Supplementary instructions for use in explosive atmospheres ATEX Page 8...
-
Page 9: Electrical Connection And Protective Sleeve Assembly
6 Electrical connection and protective sleeve assembly The electrical connection is realized by means of special connecting ca- bles only available at SCHMIDT Technology that can be purchased as additional optional accessory : Material numbers : 524921 or 524942 Connecting cable The sensor must be operated only with the original connecting cable by SCHMIDT Technology (optional accessory). - Page 10 Cable bushing Protective sleeve Sensor plug Fastening screw of protective sleeve (with circlip) Nut of cable bushing (M12, 7 Nm) Figure 6-1 Assembly of the connecting cable with protective sleeve SS 20.600 Ex – Supplementary instructions for use in explosive atmospheres ATEX Page 10...
-
Page 11: Type Plate - Labelling
Assembly (see Figure 6-1 (1) Insert the open end of the connecting cable into the protective sleeve (unscrew the screw of the cable bushing), push sleeve right up to the cable connector. (2) Insert the cable connector into the plug of the sensor housing and tighten the spigot nut manually. -
Page 12: Declarations Of Conformity
8 Declarations of conformity SCHMIDT Technology GmbH herewith declares in its sole responsibility, that the product SCHMIDT Flow Sensor SS 20.600 Part-No. 524 600 (configuration code: A B C D E F 2 H PP) is in compliance with the appropriate European guidelines and standards UK statutory requirements and designated standards. -
Page 13: Type Examination Certificate
9 Type Examination Certificate SS 20.600 Ex – Supplementary instructions for use in explosive atmospheres ATEX Page 13... - Page 14 SS 20.600 Ex – Supplementary instructions for use in explosive atmospheres ATEX Page 14...
- Page 15 SS 20.600 Ex – Supplementary instructions for use in explosive atmospheres ATEX Page 15...
- Page 16 SCHMIDT Technology GmbH Feldbergstrasse 1 78112 St. Georgen Germany Phone +49 (0)7724 / 899-0 +49 (0)7724 / 899-101 Email sensors@schmidttechnology.de www.schmidt-sensors.com www.schmidttechnology.de SS 20.600 Ex – Supplementary instructions for use in explosive atmospheres ATEX Page 16...
