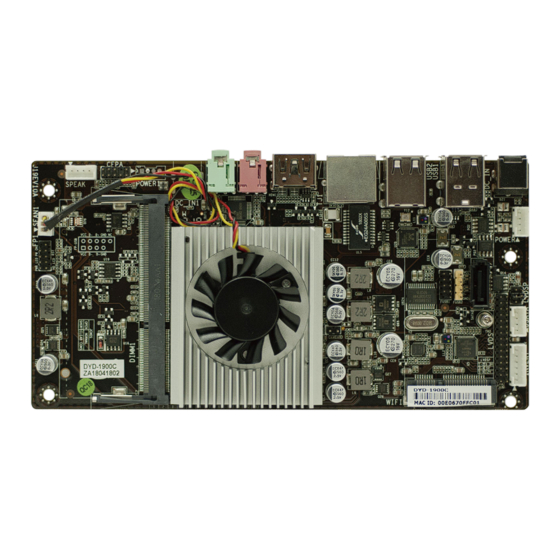

- Page 1 ZA-1900C Motherboard User Manual ® Support Intel J1900 2.0GHz Quad Core Processor...
- Page 2 ZA-1900C Motherboard Diagram...
-
Page 3: Motherboard Specification
Motherboard Specification Size 170mm x 85mm Intel J1900 2.0GHz Quad Core Processor Graphics Intel HD Graphics Chipset J1900 Memory 1*DDR3L Slot ,1066/1333MHz（DDR3 2133MHz Optional）,Up to 8GB 2*USB PIN,Support 3* USB2. 0 1*CPU Fan And SYS Fan Internal I/O 1*SATA 1*LVDS Pin 1*Front panel Pin 1*DC Power Input (12V) 1*HDMI... - Page 4 Motherboard I/O Interface Diagram WIFI INVERT LVDS JSATA DDR3 LVDSP SATA2 FUSB2 FUSB1 POWER CFPA SPEAK USB2.0,3.0 USB2.0 DC_IN HDMI Mic-in/Line-out MSATA...
- Page 5 CPU_FAN Note: these fan connectors are not jumpers, and the jumper cap is placed above the head. Installation memory: 1. Please turn off the power before installing or removing the memory, and dial down the AC power cord. 2. Carefully hold both ends of the memory stick, and do not touch the metal contact above.
- Page 6 Define Define HDD LED+ PWR LED+ HDD LED- P_SWIN RESET_GND HDD Actiuve LED:1,3 Power Button:6,8 Power LED:2,4 Reset Button:5,7 Define Define 12/19VDC DC_J DC_IN Define Define TMDS data shield TMDS data 2+ TMDS data 1+ TMDS data 2- TMDS data 2- TMDS data shield HDMI TMDS data 0+...
- Page 7 INVERT Define Define ON/OFF PIN 1-2 Close: PIN 3-4 Close: PIN 5-6 Close: Define Define LCDVDD LCDVDD LCDVDD LVDSA_DATA0N LVDSA_DATA0P LVDS1 LVDSA_DATA1N LVDSA_DATA1P LVDSA_DATA2N LVDSA_DATA2P LVDSA_CLKN LVDSA_CLKP LVDSA_DATA3N LVDSA_DATA3P LVDSB_TX0N LVDSB_TX0P LVDSB_TX1N LVDSB_TX1P LVDSB_TX2N LVDSB_TX2P LVDSB_CLKN LVDSB_CLKP LVDSB_TX3N LVDSB_TX3P FUSB1 FUSB2 FUSB1 Define...
- Page 8 Mic-in/Line-out *Other Matters Please consult the sales. ShenZhen Zeal-All Technology Co.,Ltd www.zeal-all.com +86-0755-86959086...
