Summary of Contents for Zeal-All ZA-H8N9

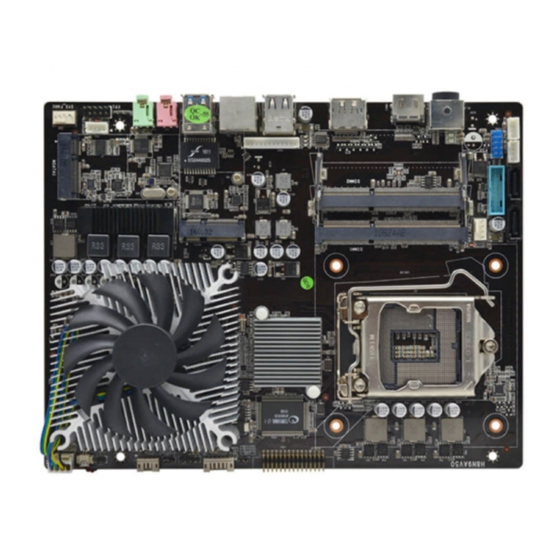

- Page 1 ZA-H8N9 Motherboard User Manual ® Support Intel Corei7/Corei5/Corei3 Pentium Processor...
- Page 2 ZA-H8N9 Motherboard Configuration Diagram...
- Page 3 ZA-H8N9 Motherboard Diagram...
-
Page 4: Motherboard Specification
Motherboard Specification Size 220mm x 170mm Support Intel Corei7/Corei5/Corei3 Pentium Processor Graphics NVIDIA_GeForce GTX 950Ti Chipset Memory 2* DDR3 Slot ,1333/1600MHz,204PIN,SODIMM Slotl,Up to 32GB 3* USB 2.0 PIN 2*USB3.0 PIN 1* CPU Fan 1* GPU Fan 2*System Fans connector Internal I/O 1*LVDS Pin Support Dual Channel 8Bit 1* VGA PIN 3*SATA... - Page 5 Motherboard I/O Interface Diagram INVERT LVDS JCOMS VGA_FAN1 JLVDS FUSB2 DDR3 CPU_FAN WIFI SATA1 USB3.0_F1 SATA2 MSATA1 JSATA SPK1 JSATA1 SYS_FAN1 FUSB2.0 VGA2 DC_IN USB2.0 TJ1 USB3.0 Mic/Lineout HDMI...
- Page 6 SYS_FAN CPU_FUN VGA_FUN Note: these fan connectors are not jumpers, and the jumper cap is placed above the head. F_USB2.0 Define Define FUSB2.0 DATA 0- DATA1- DATA0+ DATA1+ NC(CUT) INVERT Define Define ON/OFF PIN 1-2 Close: PIN 2-3 Close: Define Define LCDVDD LCDVDD...
- Page 7 Define Define HDD LED+ PWR LED+ HDD LED- P_SWIN RESET_GND HDD Actiuve LED:1,3 Power Button:6,8 Power LED:2,4 Reset Button:5,7 JSATA1 JSATA2 +5V 2. GND 3.GND 4.+12V MSATA...
- Page 8 Installation memory: 1. Please turn off the power before installing or removing the memory, and dial down the AC power cord. 2. Carefully hold both ends of the memory stick, and do not touch the metal contact above. 3. Align the gold fingers of the memory stick with the memory stick slot, and pay attention to the convex point of the gold finger socket to the upper slot in the direction;...
- Page 9 USB3.0 USB3.0 19VDC Define Define DC_J DC_IN Define Define TMDS data 2+ TMDS data shield TMDS data 1+ TMDS data 2- TMDS data shield TMDS data 2- HDMI TMDS data 0+ TMDS data shield TMDS clock+ TMDS data 0- TMDS clock shield TMDS clock- No connectde DDC clock...
- Page 10 Define Define USB3.0_F1 SSRX- SSRS+ SSTX- SSTX+ SSTX+ SSTX- SSRX- SSRS+ Mic/Lineout *Other Matters Please consult the sales. ShenZhen Zeal-All Technology Co.,Ltd www.zeal-all.com +86-0755-86959086...
