ZA-1900AC1 Motherboard
User Manual
®
Intel J1900 2.0GHz Quad Core Processor

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZA-1900AC1 and is the answer not in the manual?

Questions and answers

Related Manuals for Zeal-All ZA-1900AC1

Summary of Contents for Zeal-All ZA-1900AC1

  • Page 1 ZA-1900AC1 Motherboard User Manual ® Intel J1900 2.0GHz Quad Core Processor...

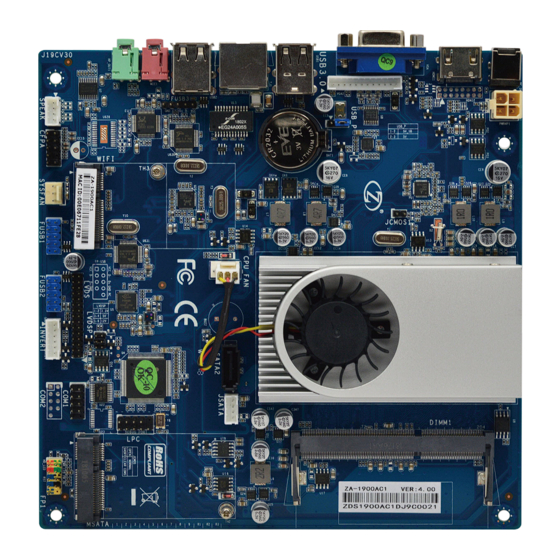

  • Page 2 ZA-1900AC1 Motherboard Diagram...

  • Page 3: Motherboard Specification

    Motherboard Specification Size 170mm x 170mm Intel J1900 2.0GHz Quad Core Processor Graphics Intel HD Graphics Chipset J1900 Memory 1 DDR3 Slot ,1066/1333/MHz memory ,Up to 8 GB 2 USB Pin Support 3 USB2.0 1 CPU Fan AND SYSTEM Fan 1 SATA Internal I/O 1 4Pin Power Input Port...
  • Page 4 Motherboard I/O Interface Diagram MSATA DDR3 JSATA COM1 SATA2 LVDSP INVERT LVDS FUSB2 FUSB1 WIFI SYS_FAN SPEAK FUSB3 USB2.0,3.0 USB3.0 VGA1 DC_IN Mic-in/Line-out HDMI...
  • Page 5 SYS_FAN CPU_FAN Note: these fan connectors are not jumpers, and the jumper cap is placed above the head. Installation memory: 1. Please turn off the power before installing or removing the memory, and dial down the AC power cord. 2. Carefully hold both ends of the memory stick, and do not touch the metal contact above.
  • Page 6 Define Define HDD LED+ PWR LED+ HDD LED- P_SWIN RESET_GND HDD Actiuve LED:1,3 Power Button:6,8 Power LED:2,4 Reset Button:5,7 12/19VDC Define Define DC_J DC_IN Define Define TMDS data 2+ TMDS data shield TMDS data 1+ TMDS data 2- TMDS data shield TMDS data 2- HDMI TMDS data 0+...
  • Page 7 Define Define DPON DPOP EDP2 DP1N DP1P AUX_N AUX_P PIN 1-2 Close: PIN 3-4 Close: PIN 5-6 Close: Define Define LCDVDD LCDVDD LCDVDD LVDSA_DATA0N LVDSA_DATA0P LVDS1 LVDSA_DATA1N LVDSA_DATA1P LVDSA_DATA2N LVDSA_DATA2P LVDSA_CLKN LVDSA_CLKP LVDSA_DATA3N LVDSA_DATA3P LVDSB_TX0N LVDSB_TX0P LVDSB_TX1N LVDSB_TX1P LVDSB_TX2N LVDSB_TX2P LVDSB_CLKN LVDSB_CLKP LVDSB_TX3N...
  • Page 8 INVERT Define Define ON/OFF Define Define SSRX- USB1 SSRS+ SSTX- SSTX+ SSTX+ SSTX- SSRX- SSRS+ Define Define VGA_VSYNC VGA_HSYNC VGA_RED VGA_GRN VGA_BULE DDC_DATA DDC_CLK...
  • Page 9 Define Define Mic-in/Line-out *Other Matters Please consult the sales. ShenZhen Zeal-All Technology Co.,Ltd www.zeal-all.com +86-0755-86959086...
