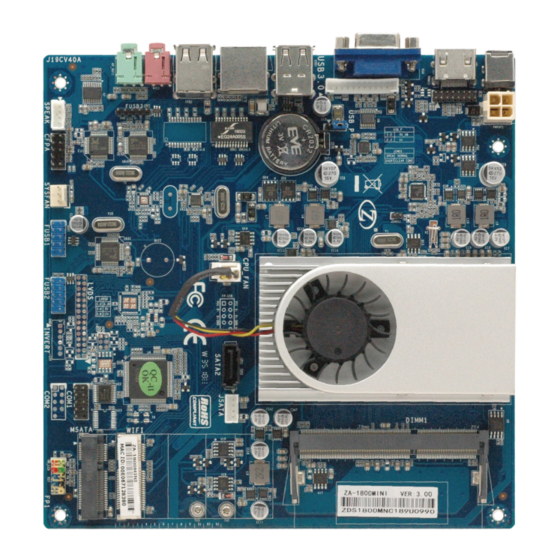

- Page 1 ZA-1800MINI Motherboard User Manual ® Intel J1800 2.41GHz Dual Core Processor...
- Page 2 ZA-1800MINI Motherboard Diagram...
-
Page 3: Motherboard Specification
Motherboard Specification Size 170mm x 170mm Intel J1800 2.41GHz Dual Core Processor Graphics Intel HD Graphics Chipset J1800 Memory 1*DDR3 Slot ,1066/1333/MHz memory ,Up to 8 GB 3*USB Pin Support 5*USB2.0 1*CPU Fan and SYAFAN 1*1*12Pin VGA 1*HDMI 1*SATA Internal I/O 1*JSATA 1*4Pin Power Input Port 1*Front panel... - Page 4 Motherboard I/O Interface Diagram WIFI MSATA DDR3 JSATA COM1 SATA2 LVDSP FUSB2 CPU_FAN FUSB1 SYS_FAN CFPA SPEAK FUSB3 USB2.0,3.0 LAN1 USB2.0 VGA1 DC_IN HDMI Mic-in/Line-out...
- Page 5 CPU_FAN Note: these fan connectors are not jumpers, and the jumper cap is placed above the head. SYS_FAN Installation memory: 1. Please turn off the power before installing or removing the memory, and dial down the AC power cord. 2. Carefully hold both ends of the memory stick, and do not touch the metal contact above.
- Page 6 Define Define HDD LED+ PWR LED+ HDD LED- P_SWIN RESET_GND HDD Actiuve LED:1,3 Power Button:6,8 Power LED:2,4 Reset Button:5,7 12/19VDC Define Define DC_J DC_IN Define Define TMDS data 2+ TMDS data shield TMDS data 1+ TMDS data 2- TMDS data shield TMDS data 2- HDMI TMDS data 0+...
- Page 7 Define Define Define Define VGA_VSYNC VGA_HSYNC VGA_RED VGA_GRN VGA_BULE DDC_DATA DDC_CLK FUSB1 Define Define FUSB1 DATA 0- DATA1- DATA0+ DATA1+ NC(CUT) SPK1 Define Define SPKOUT_L- SPKOUT_L+ SPKOUT_R- SPKOUT_R+...
- Page 8 Mic-in/Line-out *Other Matters Please consult the sales. ShenZhen Zeal-All Technology Co.,Ltd www.zeal-all.com +86-0755-86959086...
