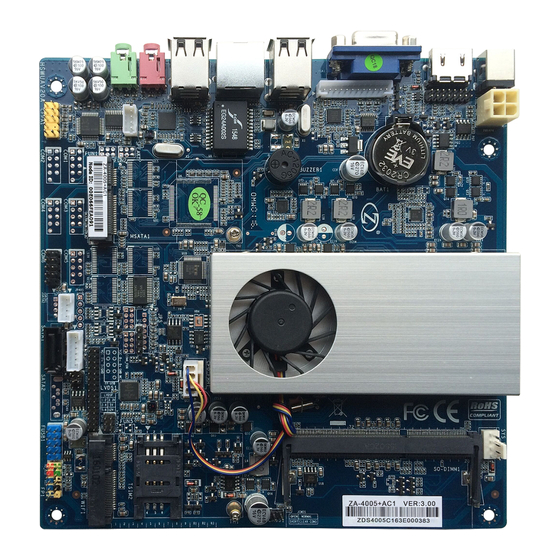

- Page 1 ZA-4005+AC1 Motherboard User Manua ® Intel Core i3-4005U Processor Version：3.0 Issue Date：04/2016...
-
Page 2: Za-4005+Ac1 Motherboard Configuration Diagram
ZA-4005+AC1Motherboard Configuration Diagram... - Page 3 ZA-4005+AC1Motherboard Diagram ZA-4005+AC1...
- Page 4 Catalog ZA-4005+AC1 Motherboard Configuration Diagram......1 ZA-4005+AC1 Motherboard Diagram..........2 Chapter 1 Hardware Installation............3 ............3 1-1 Precautions Before Installation Chapter 2 Introduce The System Board..........4 ..............4 2-1 Motherboard Specification Chapter 3 Motherboard I/O Interface Diagram........5 Chapter 4 Hardware Characteristics...........6 Graphics/LAN/USB/Hard Disk Interface..........6 Hard Drive Power Supply/Other Onboard Pin/ COM ......
-
Page 5: Chapter 1 Hardware Installation
Chapter 1: Hardware Installation 1-1 Precautions Before Installation Precision integrated circuits and other components, which are easily damaged by static electricity. Please read this manual before installation and prepare for the following: Please confirm that the chassis size is in line with the motherboard before installation. -
Page 6: Chapter 2 Introduce The System Board
Chapter 2: Introduce The System Board 2-1.Motherboard Specification Model NO. ZA-4005-AC1 Size MINI-ITX 170mm x 170mm ® Intel Core i3-4005U Processor Memory 1*DDR3 Slot ,1333/1600 MHz,204 Pin,SODIMM Slot,Up to 16GB ® Intel HD Graphics Graphics Chipset ® Intel 4005U 1* DC Power Input (12V) 1* HDMI Rear I/O 1* VGA... -
Page 7: Chapter 3 Motherboard I/O Interface Diagram
Chapter 3: Motherboard I/O Interface Diagram ZA-4005-AC1 Motherboard JCMOS1 TISM2 WiFi SYS_FAN FUSB1 LVDSP1 INVERT1 SATA1 FUSB2 JSATA1 JSATA2 COM5 COM6 COM3 COM4 MSATA1 COM1 COM2 SPEAKT CFPA1 PWR4P4 HDMI2 12VDC HDMI USB2.0 RJ45 USB3.0 MIC/LINEOUT... -
Page 8: Chapter 4 Hardware Characteristics
Chapter 4: Hardware Characteristics Graphics Display Description ® Display Chip And Core Intel Graphics Media Accelerator Db15 Interface And 1*12PIN Interface 1*12PIN VGA PIN Definition: Interface Type Description Chip Card Realtek RTL 8111E 10/100/1000M bps Adaptive,support PX E boot, Function support remote wake-up Interface Type RJ45... - Page 9 Hard Disk Power Description 1.+5V 2. GND 3.GND 4.+12V I nterface Definition JSATA PIN And Interface Type 1*4 pin/2.54mm Please use the SATAPORT with our collocation power Notice line, can not be replaced. Other Onboard PIN Description Pin Define: 1. HDD LED+(HD Active LED) 2.
-
Page 10: Lvds Wiring Specification
COM PIN：COM1/COM2/COM3/COM4/COM5/COM6 LVDS Wiring Specification Specification For Wiring Circuit board power supply selection 3. Inverter Setting: Voltage output 3.3V GND GND Adj EN +12V +12V +12V LVDSP1 INVERT1 *Other Matters Please consult the sales. staff...
