ZA-3865L8 Motherboard
User Manual
®
Support Intel Celeron 3865U 1.8GHz Processor

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZA-3865L8 and is the answer not in the manual?

Questions and answers

Related Manuals for Zeal-All ZA-3865L8

Summary of Contents for Zeal-All ZA-3865L8

  • Page 1 ZA-3865L8 Motherboard User Manual ® Support Intel Celeron 3865U 1.8GHz Processor...

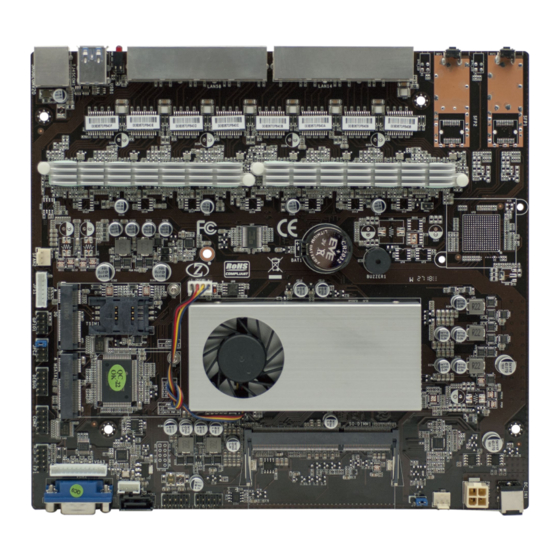

  • Page 2 ZA-3865L8 Motherboard Diagram...

  • Page 3: Motherboard Specification

    Motherboard Specification Size 212mm x 230mm Intel Celeron 3865U Processor(2M Cache,1.8 GHz) Graphics Intel HD Graphics Chipset Intel 3865U Memory 1*DDR3 1066/13331600MHz,Up to 16GB 2* USB PIN,Support 4* USB2. 0 1* CPU Fan And SYS Fan Internal I/O 1* SATA 1*VGA PIN Port 1*COM Pin Port 1*DC Power Input (12V)
  • Page 4 Motherboard I/O Interface Diagram DC_IN SATA1 SFAN3 JPWR USB2 USB3 JSATA1 PWR4P1 DDR3 VGA3 COM2 DEBUG MSATA1 JPS2 TSIM1 GPIO1 WIFI JPS1 CPU_FAN SFAN2 USB3.0 LAN1-4 LAN5-8 PWR_HDD_LED TJ45COM1 RST1 DEF1...
  • Page 5 CPU_FAN Note: these fan connectors are not jumpers, and the jumper cap is placed above the head. Installation memory: 1. Please turn off the power before installing or removing the memory, and dial down the AC power cord. 2. Carefully hold both ends of the memory stick, and do not touch the metal contact above.
  • Page 6 Define Define HDD LED+ PWR LED+ HDD LED- P_SWIN RESET_GND HDD Actiuve LED:1,3 Power Button:6,8 Power LED:2,4 Reset Button:5,7 Define Define 12/19VDC DC_J DC_IN Define Define TMDS data shield TMDS data 2+ TMDS data 1+ TMDS data 2- TMDS data 2- TMDS data shield HDMI TMDS data 0+...
  • Page 7 PWR4P1 Define Define PIN 1-2 Close: PIN 3-4 Close: PIN 5-6 Close: Define Define LCDVDD LCDVDD LCDVDD LVDSA_DATA0N LVDSA_DATA0P LVDS1 LVDSA_DATA1N LVDSA_DATA1P LVDSA_DATA2N LVDSA_DATA2P LVDSA_CLKN LVDSA_CLKP LVDSA_DATA3N LVDSA_DATA3P LVDSB_TX0N LVDSB_TX0P LVDSB_TX1N LVDSB_TX1P LVDSB_TX2N LVDSB_TX2P LVDSB_CLKN LVDSB_CLKP LVDSB_TX3N LVDSB_TX3P FUSB1 FUSB2 FUSB1 Define Define...
  • Page 8 INVERT Define Define ON/OFF Define Define VGA_VSYNC VGA_HSYNC VGA_RED VGA_GRN VGA_BULE DDC_DATA DDC_CLK *Other Matters Please consult the sales. ShenZhen Zeal-All Technology Co.,Ltd www.zeal-all.com +86-0755-86959086...
