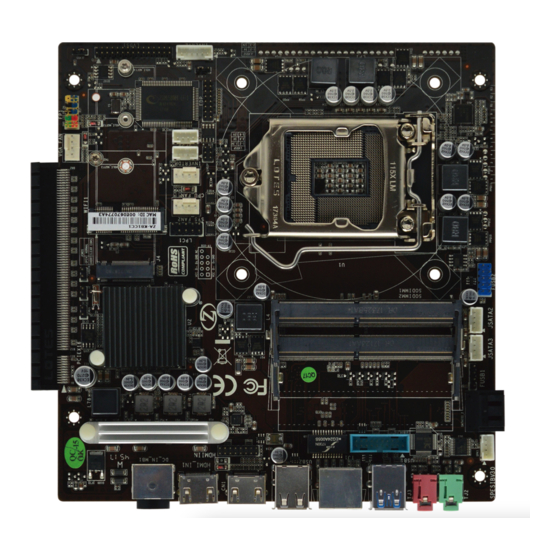

- Page 1 ZA-SKB1CC1 Motherboard User Manual ® Support Intel 6th/7th Corei7/Corei5/Corei3 Processor...
- Page 2 ZA-SKB1CC1Motherboard Diagram...
- Page 3 Motherboard Specification Size 170mm x 180mm Support Intel 6th/7th Core i7 i5 i3 Processor Graphics Intel HD Graphics Chipset H110 Memory 2*DDR4 2133MHZ,Up to 16GB 2*USB2.0 Pin 3*USB Port 1*USB3.0 Pin 2*USB Port 1*CPU Fan 1*SYS Fan 1*EDP Pin Internal I/O 1*LVDS Pin(support dual Channel 8 Bit) 1*2X3 Pin Power 2*SATA...
- Page 4 Motherboard I/O Interface Diagram LVEDP LVDS1 INVERET1 INTERTDP VGA_FAN SYS_FAN CPU_FAN WIFI USB2.0 PCIEX16 DDR4 JSATA2-3 FUSB1 SATAIII_2 SPK1 HDMI1 USB1 19V_DC HDMI USB2.0 HDMI USB3.0 Euro Output Input Mic-in/Line-out...
- Page 5 CPU_FAN SYS_FAN VGA_FAN Note: these fan connectors are not jumpers, and the jumper cap is placed above the head. Installation memory: 1. Please turn off the power before installing or removing the memory, and dial down the AC power cord. 2.
- Page 6 Define Define HDD LED+ PWR LED+ HDD LED- P_SWIN RESET_GND HDD Actiuve LED:1,3 Power Button:6,8 Power LED:2,4 Reset Button:5,7 19VDC Define Define DC_J DC_IN Define Define TMDS data shield TMDS data 2+ TMDS data 1+ TMDS data 2- TMDS data 2- TMDS data shield HDMI TMDS data 0+...
- Page 7 Define Define DPON DPOP EDP2 DP1N DP1P AUX_N AUX_P Define Define LVDS1 LCDVDD LCDVDD LCDVDD LVDSA_DATA0N LVDSA_DATA0P LVDSA_DATA1N LVDSA_DATA1P LVDSA_DATA2N LVDSA_DATA2P LVDSA_CLKN LVDSA_CLKP LVDSA_DATA3N LVDSA_DATA3P LVDSB_TX0N LVDSB_TX0P LVDSB_TX1N LVDSB_TX1P LVDSB_TX2N LVDSB_TX2P LVDSB_CLKN LVDSB_CLKP LVDSB_TX3N LVDSB_TX3P F_USB1 F_USB2 Define Define Define FUSB1 DATA1- DATA 0-...
- Page 8 INVERT Define Define ON/OFF Define Define SSRX- USB1 SSRS+ SSTX- SSTX+ SSTX+ SSTX- SSRX- SSRS+ Mic-in/Line-out *Other Matters Please consult the sales. ShenZhen Zeal-All Technology Co.,Ltd www.zeal-all.com +86-0755-86959086...
