- Page 1 ZA-1037P8G Motherboard User Manual Support Intel Celeron Intel 1037U 1.80GHz Processor ® ®...
- Page 2 ZA-1037P8G Motherboard Configuration Diagram ART FILM - tsilk ART FILM - tsilk...

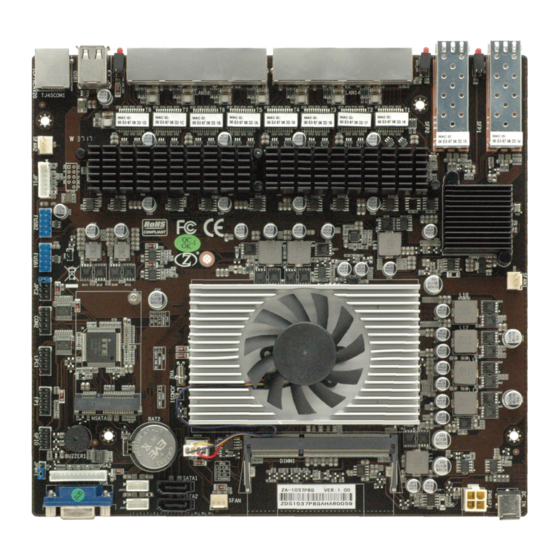

- Page 3 ZA-1037P8G Motherboard Diagram...
-
Page 4: Motherboard Specification
Motherboard Specification Size 230mm x 212.3mm Support Intel Celeron Intel 1037U 1.80GHz Processor Graphics Intel HD Graphics Chipset Intel 1037U Memory 1*DDR3 Slot ,1066/1333/1600MHz memory,Up to 16GB 1*CPUFAN 3*SYSFAN 1*JPS1 Pin 2*USB PIN,support 4* USB2.0 1*JPC2 Pin 1*COM Internal I/O 1*Front panel Pin 1*GPIO Pin 2*JSATA... - Page 5 Motherboard I/O Interface Diagram DC_IN SATA2 SFP1 SFP1 JSATA JSATA1 SFAN SATA1 SFP1 CPUFAN GPIO LPC1 COM2 SFAN1 FUSB1 FUSB2 JPS1 SEAN2 LAN1-8 USB2.0 TJ45COM1 SFP2 SFP1 SFP1_LED SFP2_LED PWR_HDD_LED...
- Page 6 CPUFAN Note: these fan connectors are not jumpers, and the jumper cap is placed above the head. SFAN SFAN1 SFAN2 Installation memory: 1. Please turn off the power before installing or removing the memory, and dial down the AC power cord. 2.
- Page 7 Define Define HDD LED+ PWR LED+ HDD LED- P_SWIN RESET_GND HDD Actiuve LED:1,3 Power Button:6,8 Power LED:2,4 Reset Button:5,7 LAN1-8 Define Define VGA_VSYNC VGA_HSYNC VGA_RED VGA_GRN VGA_BULE DDC_DATA DDC_CLK FUSB1 Define Define FUSB1 DATA 0- DATA1- DATA0+ DATA1+ NC(CUT)
- Page 8 Define Define *Other Matters Please consult the sales. ShenZhen Zeal-All Technology Co.,Ltd www.zeal-all.com +86-0755-86959086...
