Pentair EVERPURE QL3B Use & Care Manual

EVERPURE
QL3B FILTER SYSTEMS
®
SPECIFICATIONS FOR A SINGLE UNIT

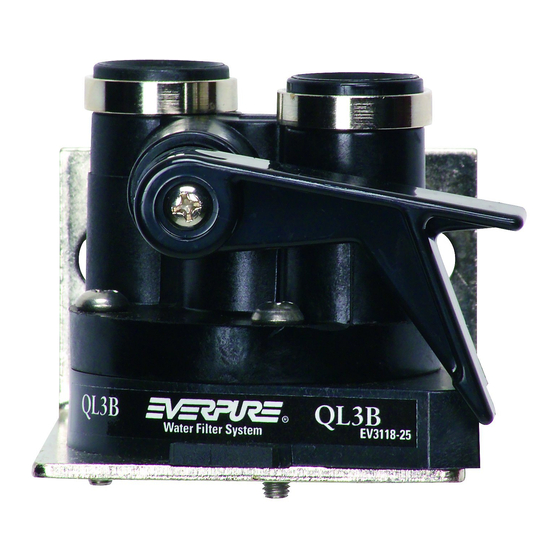

A two-part unit consisting of a permanently mountable head assembly complete with integral shut-off valve and mounting
bracket, and a disposable cartridge which installs into the head.
HEAD ASSEMBLY - Reinforced nylon-only part in head assembly in contact with water. Multi-position, zinc-coated steel bracket.
Quick-Change Cartridges - Aluminum pressure vessel, with a bonded lining of polyolefin, sealed to an ABS top cap.
SELECTING A LOCATION
Mount the Water Filter in the vertical position only!
The location selected for the installation should:
1. Allow clearance for valve handle travel.
2. Allow clearance on either side of the blue ring so it can be grasped and turned.
3. Allow the cutout under the ring label to be clearly seen in both the raised and lowered positions to simplify cartridge
changing.
4. Allow a minimum of 2.5" (6.5 cm) under the cartridge so it can be lowered for removal.
5. Allow space for "in" and "out" water line connections.
INSTALLATION INSTRUCTIONS
NOTE: For installations in Australia and New Zealand product must be installed with a backflow prevention device in accordance with
AS/NZS 3500 and AS/NZS 2845.1.
Before the filter can be installed, the bracket must be removed and remounted in the position best suited to your installation. In
the center position (illustration B), three screws can be used. When the bracket is mounted 45° to the left or right of center (see
illustrations A and C), only two screws are used.
Refer to the instructions printed on the cartridge label for cartridge replacement.
After installation is completed, be sure to double-check that the incoming water line is connected to the inlet opening of the
QL3B Head, and the faucet line is connected to the outlet opening of the head. If in doubt, check the direction-of-flow arrow
molded into the top of the head. Flush cartridge by running water through at full force. This will purge air and fines. Please refer
to the chart below and corresponding cartridge to obtain required flushing time.
FILTER FLUSH
TYPE TIME
2DC 5 Minutes
AC 5 Minutes
AC 5 Minutes
2
4C 5 Minutes
†
4C 5 Minutes
2
4H † 5 Minutes
4H 5 Minutes
2
4DC 5 Minutes
OCS 5 Minutes
†
2
OW200L 5 Minutes
FOODSERVICE
EVERPURE QL3B FILTER SYSTEMS INSTRUCTION AND OPERATION GUIDE
FILTER FLUSH
TYPE TIME
BH 5 Minutes
2
2CB5 † 5 Minutes
4CB5 † 5 Minutes
7CB5 5 Minutes
†
2CB5-K † 5 Minutes
4CB5-K † 5 Minutes
7CB5-K † 5 Minutes
2CB5-S 5 Minutes
†
4CB5-S 5 Minutes
†
7CB5-S † 5 Minutes
FILTER FLUSH
TYPE TIME
MC † 5 Minutes
2
MH 5 Minutes
2
OW2 Plus 5 Minutes
OW4 Plus 5 Minutes
XC 5 Minutes
2
2K Plus 5 Minutes
4K Plus 5 Minutes
† Denotes WaterMark
