The Everpure QL3-BH Water Filter reduces chlorine tastes and odors and other substances that produce off-tastes and odors
2
in coffee. The QL3-BH also reduces dirt and rust, and reduces the formation of limescale* which builds up on the brewer
2
heating elements and in the reservoir. *As tested by Everpure.
INSTALLATION
The following instructions provide for installation of a QL3-BH
or not the brewer is already installed. The label on the BH
explains the procedure for cartridge insertion and removal into the filter head. The filter
cartridge should be placed into the head after the system has been installed.
1. Install the QL3-BH as close to the
2
brewer as possible. Do not connect this
filter to any other equipment. Connect
only to the cold water line and do not
expose it to high temperatures.
2. Select a location for the filter (nomi-
nally 4" x 4" x 18" long including a 21⁄2"
drop-down for cartridge changes).
Write the installation date and antici-
pated cartridge replacement date in the
space provided on the cartridge label.
The BH cartridge should be replaced
2
every 12 months or after 6,000 pots
(3,000 gallons) have been brewed,
whichever occurs first.
3. If required, shut off the incoming water
supply and relieve pressure in the
tubing. Cut the tubing, allowing a 4"
space for the filter installation between
the water supply and the brewer water
inlet.
NOTE: The BH
cartridge must be flushed before use by running water through it at
2
maximum flow for three (3) minutes to purge the cartridge of air.
OPERATING SPECIFICATIONS
Temperature: 35-100° F (2-38° C)
Rated Service Flow: 0.5 gpm (1.9 Lpm)
Min./Max. LIne Pressure: 10 – 125 psi (0.7 – 8.6 bar)
Capacity of a single unit: 3,000 gallons (11,360 liters)
For Cold Water use only.
Notes
This water filtration system must be maintained in accordance with the manufacturer's
instructions, including the timely replacement of filter cartridges.
This product is intended for commercial use only. Home or similar consumer use VOIDS
THE WARRANTY.
Check for compliance with state and local laws and regulations. Do not use with water that
is microbiologically unsafe or of unknown quality without adequate disinfection before or
after the system. Systems certified for cyst reduction may be used on disinfected water
that may contain filterable cysts.
FILTRATION & PROCESSING SOLUTIONS
WATER FILTER AND CARTRIDGE
2
filter regardless of whether
2
cartridge illustrates and
2
4. Install appropriate fittings into each
port of the head. Use a good grade of
pipe dope or Teflon
threads. Do not overtighten the fittings.
5. Position the head assembly so that
the arrow shown on top of the head
corresponds to the direction of water
flow and attach the incoming cold water
supply to the inlet of the head.
6. Connect the filter outlet to the brewer
water inlet line. Use compression or
flare fittings to make water connections
to the brewer.
7. Mount the head to the wall using the
screws and star washers provided.
8. Install the BH
following the instructions on the
cartridge label.
9. Turn on the water and check for leaks.

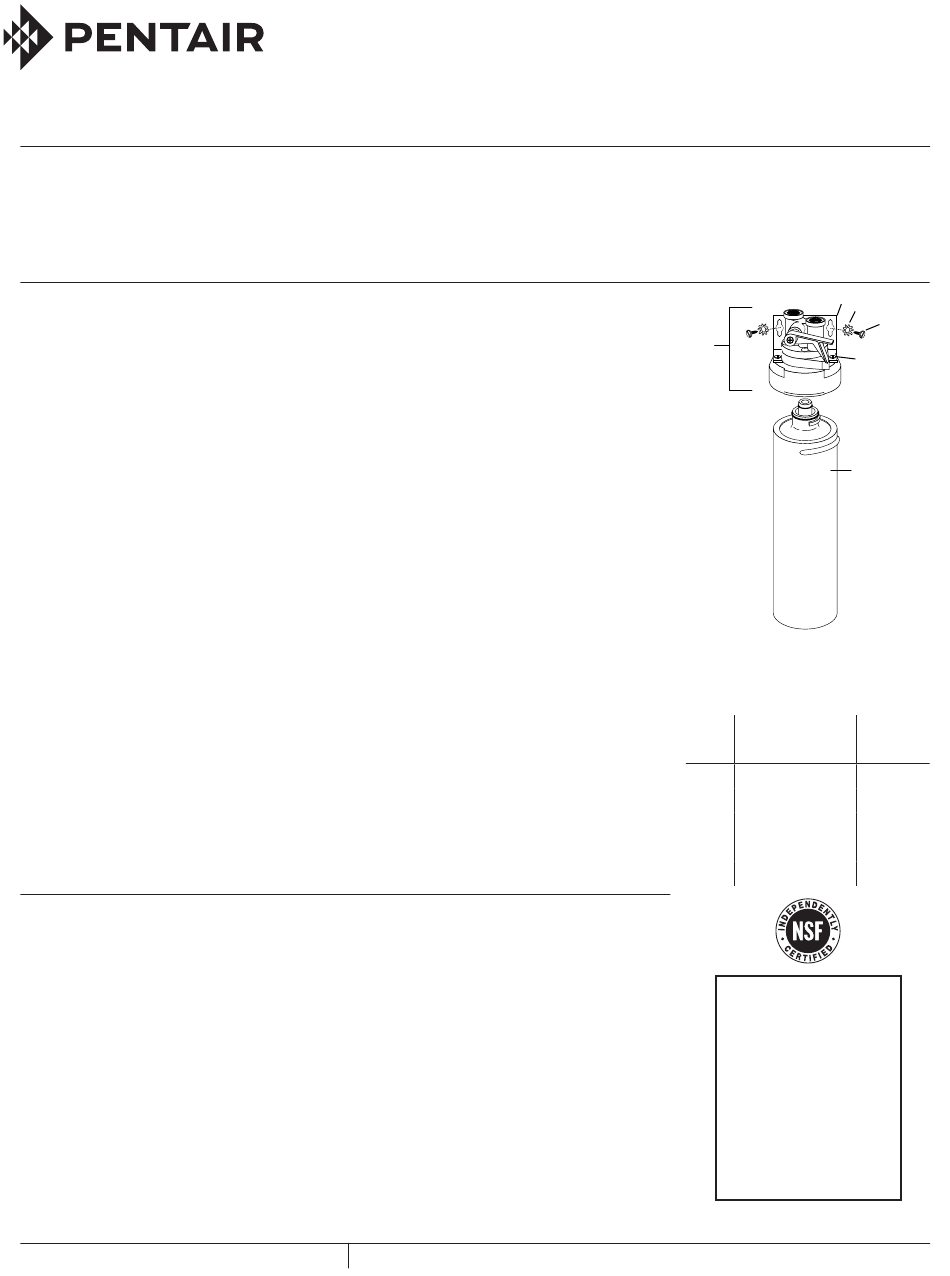

QL3-BH WATER FILTER AND CARTRIDGE INSTRUCTION & OPERATION GUIDE
2
tape on the body
®
cartridge into the head
2
E
D
A
F
B
REPLACEMENT PARTS
Contact your local Pentair Everpure dealer for
®
filter cartridges or system replacement parts.
Key
Description Part Number
Letter
A QL3 head assembly EV3076-37
B BH filter cartridge EV9612-00
2
C Mounting screw EV3061-96
D Star washer EV3055-34
F Bracket screw EV3062-03
System Tested and Certified by
NSF International against NSF/
ANSI Standards 42 and 53 for the
reduction of:
STANDARD NO. 42 —
AESTHETIC EFFECTS
Chemical Reduction
Taste and Odor
Chlorine
Mechanical Filtration
Nominal Particulate Class I
STANDARD NO. 53 —
HEALTH EFFECTS
Mechanical Filtration
Cyst
EPA Est No. 002623-IL-002
C
