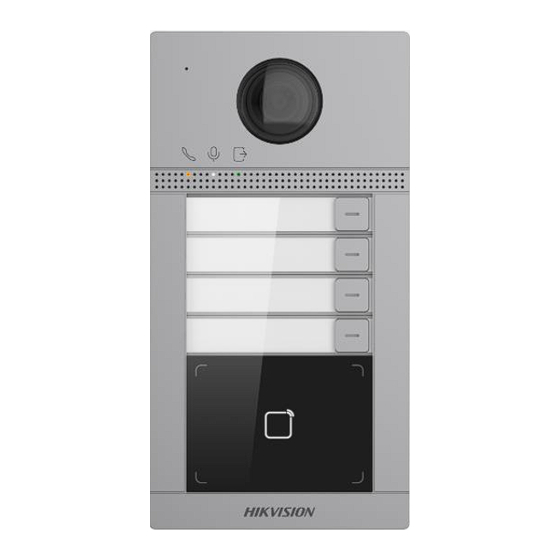

DS-KV8413-WME1(B)
Video Intercom Villa Door Station
Key Feature
Standard PoE
2 MP HD camera
Noise suppression and echo cancellation
Low illumination
Access control functions
Tamper-proof
Configuration remotely via Web
2.4 GHz Wi-Fi
Protection level: IK08
Approval
a.
EN 55032:2015
b.
EN 61000-3-2:2014
CE-EMC
c.
EN 61000-3-3:2013
d.
EN 50130-4:2011 +A1:2014
EN 60950-1:2006 + A11:2009 + A1:2010 +
CE-LVD
A12:2011 + A2:2013
IEC 60950-1:2005 (Second Edition) + Am 1:2009
CB
+ Am 2:2013
FCC-SDOC
47 CFR Part 15, Subpart B
C-
AS/NZS CISPR 32:2015
TICK(EMC)
UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07,
UL
Information Technology Equipment – Safety –
Part 1: General Requirements
ROHS
2011/65/EU
REACH
Regulation (EC) No 1907/2006
WEEE
2012/19/EU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-KV8413-WME1(B) and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-KV8413-WME1(B)

Summary of Contents for HIKVISION DS-KV8413-WME1(B)

  • Page 1 DS-KV8413-WME1(B) Video Intercom Villa Door Station Key Feature  Standard PoE  2 MP HD camera  Noise suppression and echo cancellation  Low illumination  Access control functions  Tamper-proof  Configuration remotely via Web  2.4 GHz Wi-Fi ...

  • Page 2: Specification

    Card capacity Max. 10000 Specification User capacity Max. 2000 Linked Indoor System parameters Max. 4 station Operation Embedded Linux operation system Linked sub door system Max. 16 station Operation 4-button Linked method Max. 8 doorphone Flash 32 M Protocol ISAPI, RTSP, STMP, SNMP 256 M Unlock by presenting cards, unlock via Video Parameters...
  • Page 3 Camera MicroSD Card Slot & Debugging Port Loudspeaker Button Terminals...
  • Page 4 Dimension...
  • Page 6 DS-KV8X13-M Single-Button Two-Button Four-Button Video Intercom Villa Door Sta on UD20197B-C ENGLISH Diagram References Appearance Microphone Indicator Camera Loudspeaker Bu on Card Reading Area IR Light Micro SD Card Slot(Reserved) & Debugging Port Network Interface Terminals Note: The debugging port is used for debugging only. Indicator Descrip on Unlock: Green Call: Orange Communicate: White...

  • Page 7: Instalación

    FRANÇAIS DEUTSCH ENGLISH ENGLISH ENGLISH ENGLISH ESPAÑOL ENGLISH ENGLISH ITALIANO Références du schéma Diagram References Diagram References Verweise auf Schaubilder Diagram References Diagram References Referencias del diagrama Diagram References Diagram References Riferimento schemi Apparence Au au Apariencia Aspe o Microphone Indicateur Caméra Telecamera...
  • Page 8 MAGYAR ENGLISH ENGLISH ENGLISH ENGLISH POLSKI ENGLISH ENGLISH ROMÂNĂ ENGLISH ENGLISH SLOVENČINA Diagram References Diagram References Az ábra jelölései Diagram References Diagram References Opis diagramu Diagram References Diagram References Referinţe diagramă Diagram References Diagram References Referenčné schémy Külső megjelenés Elementy urządzenia Aspect Vzhľad Mikrofon...
  • Page 9 ©2020 Hangzhou Hikvision Digital Technology Co., Ltd. Alle rechten voorbehouden. e gli altri mar chi e loghi di Hikvision sono di pr o prietà di Hikvision in v arie giurisdizioni. Gli altri mar c hi registra e loghi menziona appartengono ai...
