HIKVISION DS-KV8102-IM Quick Start Manual

V series video intercom door station
Hide thumbs Also See for DS-KV8102-IM:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Video Intercom
Door Station (V Series)
Quick Start Guide
UD.6L0206B1170A01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-KV8102-IM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-KV8102-IM

Summary of Contents for HIKVISION DS-KV8102-IM

  • Page 1 Video Intercom Door Station (V Series) Quick Start Guide UD.6L0206B1170A01...
  • Page 2 Trademarks and other Hikvision marks are the property of Hikvision and are registered trademarks or the subject of applications for the same by Hikvision and/or its affiliates. Other trademarks mentioned in this manual are the properties of their respective owners. No right of license is given to use such trademarks without express permission.
  • Page 3 FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, SECURITY BREACHES, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF OR RELIANCE ON THIS MANUAL, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY OR CERTAIN DAMAGES, SO SOME OR ALL OF THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

  • Page 4: Regulatory Information

    Video Intercom Door Station·Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Video Intercom Door Station·Quick Start Guide 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
  • Page 6 Video Intercom Door Station·Quick Start Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Warnings and Cautions: Warnings: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
  • Page 7 Video Intercom Door Station·Quick Start Guide  Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause fire danger).  Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.

  • Page 8: Table Of Contents

    Video Intercom Door Station·Quick Start Guide Table of Contents 1 Appearance ....................1 1.1 Appearance of DS-KV8X02-IM ................. 1 1.2 Appearance of DS-KV8102-XP ................. 2 2 Terminals and Interfaces ................3 3 Installation and Wiring ................. 4 3.1 Installation of DS-KV8X02-IM .................. 4 3.1.1 Gang Box for DS-KV8X02-IM ................

  • Page 9: Appearance

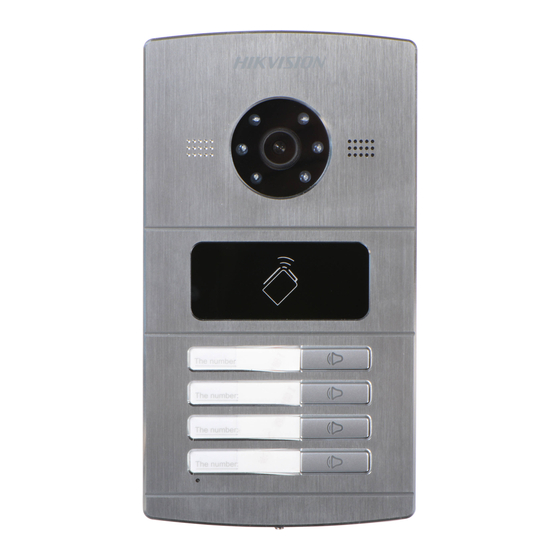

    For device DS-KV8X02-IM, the number of calling buttons varies according to its model. Take the figure of device DS-KV8402-IM as an example.  For device DS-KV8102-IM, there is only 1 calling button.  For device DS-KV8202-IM, there are 2 calling buttons.

  • Page 10: Appearance Of Ds-Kv8102-Xp

    Video Intercom Door Station·Quick Start Guide Models Description Room No. (Customized) Microphone Tamper Button You need not customize the Room No. for device DS-KV8102-IM. 1.2 Appearance of DS-KV8102-XP Figure 1-2 Appearance of DS-KV8102-XP Table 1-2 Description of DS-KV8102-XP Models Description...

  • Page 11: Terminals And Interfaces

    Video Intercom Door Station·Quick Start Guide 2 Terminals and Interfaces Please refer to the following figure for terminals and interfaces of door station. ①-⑤ ⑥-⑦ ⑧-⑨ ⑬ ⑩-⑫ Figure 2-1 Terminals and Interfaces Table 2-1 Descriptions of Terminals and Interfaces Terminals and Interfaces Name Color...

  • Page 12: Installation And Wiring

    To install the door station onto the wall, you are required to utilize a matched gang box. 3.1.1 Gang Box for DS-KV8X02-IM Please refer to the following figures for the dimensions of gang box for DS-KV8102-IM/ DS-KV8202-IM/ DS-KV8402-IM door station.

  • Page 13: Wall Mounting With Gang Box Of Ds-Kv8X02-Im

    Video Intercom Door Station·Quick Start Guide 3.1.2 Wall Mounting with Gang Box of DS-KV8X02-IM Steps: 1. Take the gang box and screws from the packing box. 2. Chisel a hole in the wall for inserting the gang box. The size of the hole should be 90 (width) ×170 (length) ×...

  • Page 14: Installation Of Ds-Kv8102-Xp

    Video Intercom Door Station·Quick Start Guide M4 Screw Figure 3-4 Secure the Door Station (DS-KV8X02-IM) 3.2 Installation of DS-KV8102-XP 3.2.1 Installation Plate for DS-KV8102-XP To install the DS-KV8102-XP model onto the wall, an installation plate and a gang box are required.

  • Page 15: Wall Mounting With Gang Box Of Ds-Kv8102-Xp

    Video Intercom Door Station·Quick Start Guide  The dimension of gang box for model DS-KV8102-IP/ DS-KV8102-VP door station is: 75 (width) × 75 (length) × 50 (depth) mm.  The dimensions above are theoretical. The actual size can be slightly different from the theoretical dimension.
  • Page 16 Video Intercom Door Station·Quick Start Guide 6. After installing the installation plate, install the door station by inserting the rear component into the hollow area of the installation plate. While inserting the door station into the installation plate, incline the device by 5~10°, as shown in the figure below.

  • Page 17: Wiring Description

    Video Intercom Door Station·Quick Start Guide 3.3 Wiring Description 3.3.1 Door Lock Wiring Figure 3-10 Door Lock Wiring  Terminal DR_NC/DR_COM is set as default for connecting magnetic lock/electric bolt; terminal DR_NO/DR_COM is set as default for connecting electric strike. ...

  • Page 18: Door Magnetic Wiring

    Video Intercom Door Station·Quick Start Guide 3.3.2 Door Magnetic Wiring Figure 3-11 Door Magnetic Wiring To connect door magnetic, it is required to set the input of one alarm in terminal (ALARM_1, ALARM_2, ALARM_3, or ALARM_4) to be door magnetic with Batch Configuration Tool or iVMS-4200 client software.

  • Page 19: Alarm Device Input Wiring

    Video Intercom Door Station·Quick Start Guide To connect exit button, it is required to set the input of one alarm in terminal (ALARM_1, ALARM_2, ALARM_3, or ALARM_4) to be exit button with Batch Configuration Tool or iVMS-4200 client software. 3.3.4 Alarm Device Input Wiring Figure 3-13 Alarm Device Input Wiring To connect other alarm devices, it is required to set the input of one alarm in terminal (ALARM_1, ALARM_2, ALARM_3, or ALARM_4) to be custom with Batch Configuration...

  • Page 20: Before You Start

    Video Intercom Door Station·Quick Start Guide 4 Before You Start For the first time use of the device, you are required to activate the device. You can activate the device and set the device password via internet with Batch Configuration Tool, or with iVMS-4200 client software, or with Video Intercom Set-up Tool.

  • Page 21: Remote Operation (Batch Configuration Tool)

    Video Intercom Door Station·Quick Start Guide 5 Remote Operation (Batch Configuration Tool) 5.1 Activating Device Remotely Purpose: The device cannot be operated until it is activated. You can remotely activate the device via Batch Configuration Tool or via iVMS-4200 client. Here take the Batch Configuration Tool as example, and for further information, please refer to the user manual in the disk.

  • Page 22: Editing Network Parameters

    Video Intercom Door Station·Quick Start Guide When the device is not activated, the basic operation and remote operation of device cannot be performed. 5.2 Editing Network Parameters Purpose: You can edit the network parameters of online devices. Steps: 1. Select an online device in the online devices list in the lower part of the batch configuration software interface.

  • Page 23: Adding Device

    Video Intercom Door Station·Quick Start Guide  When you edit network parameters remotely, the device should be in the same network segment. 5.3 Adding Device The software provides 3 ways for adding the door station (V series). You can add the active online devices within your subnet, add devices by IP address, or add devices by IP segment.

  • Page 24: Adding By Ip Address

    Video Intercom Door Station·Quick Start Guide 3. Click the button to pop up the login dialog box. Figure 5-6 Login Dialog Box 4. Enter the user name and password. 5. Click the OK button to save the settings. Only the devices that are successfully logged in will be added to the device list for configuration.
  • Page 25 Video Intercom Door Station·Quick Start Guide 4. Click the OK button to add the device to the device list.  You cannot add the device(s) to the device list if the user name and password are not identical.  When you add devices by IP Address, or IP Segment, the devices should be online devices.

  • Page 26: Local Operation

    Take the figure of device DS-KV8402-IM as an example.  For device DS-KV8102-IM, there is only 1 calling button.  For device DS-KV8202-IM, there are 2 calling buttons.  For device DS-KV8402-IM, there are 4 calling buttons.

  • Page 27: Calling Resident (Ds-Kv8102-Xp)

    Video Intercom Door Station·Quick Start Guide  When live view of door station is displayed on other devices or door station is calling resident, the door station will detect the brightness of video. When the brightness is lower than the expected threshold, the supplement light will be enabled. ...

  • Page 28: Issuing Card

    Video Intercom Door Station·Quick Start Guide  When the supplement light is enabled, the backlight of key will be auto-enabled, otherwise, the door station will detect the brightness of live view and enable the backlight of key when the brightness of live view is lower than expected threshold. 6.2 Issuing Card Purpose: You can assign the card to the door station or doorphone by issuing cards.
  • Page 29 Video Intercom Door Station·Quick Start Guide You cannot unlock the door by swiping the main card.

  • Page 30: Appendix

    Video Intercom Door Station·Quick Start Guide Appendix Installation Notice While installing the door station, please make sure that the distance between any two devices is far as possible to avoid the howling and echo. The distance between two devices is recommended to be longer than 10 meters. Devices here refer to indoor station, door station, doorphone and master station.
  • Page 31 Video Intercom Door Station·Quick Start Guide...

This manual is also suitable for:

Ds-kv8102-ipDs-kv8102-vpDs-kv8202-imDs-kv8402-imV series
